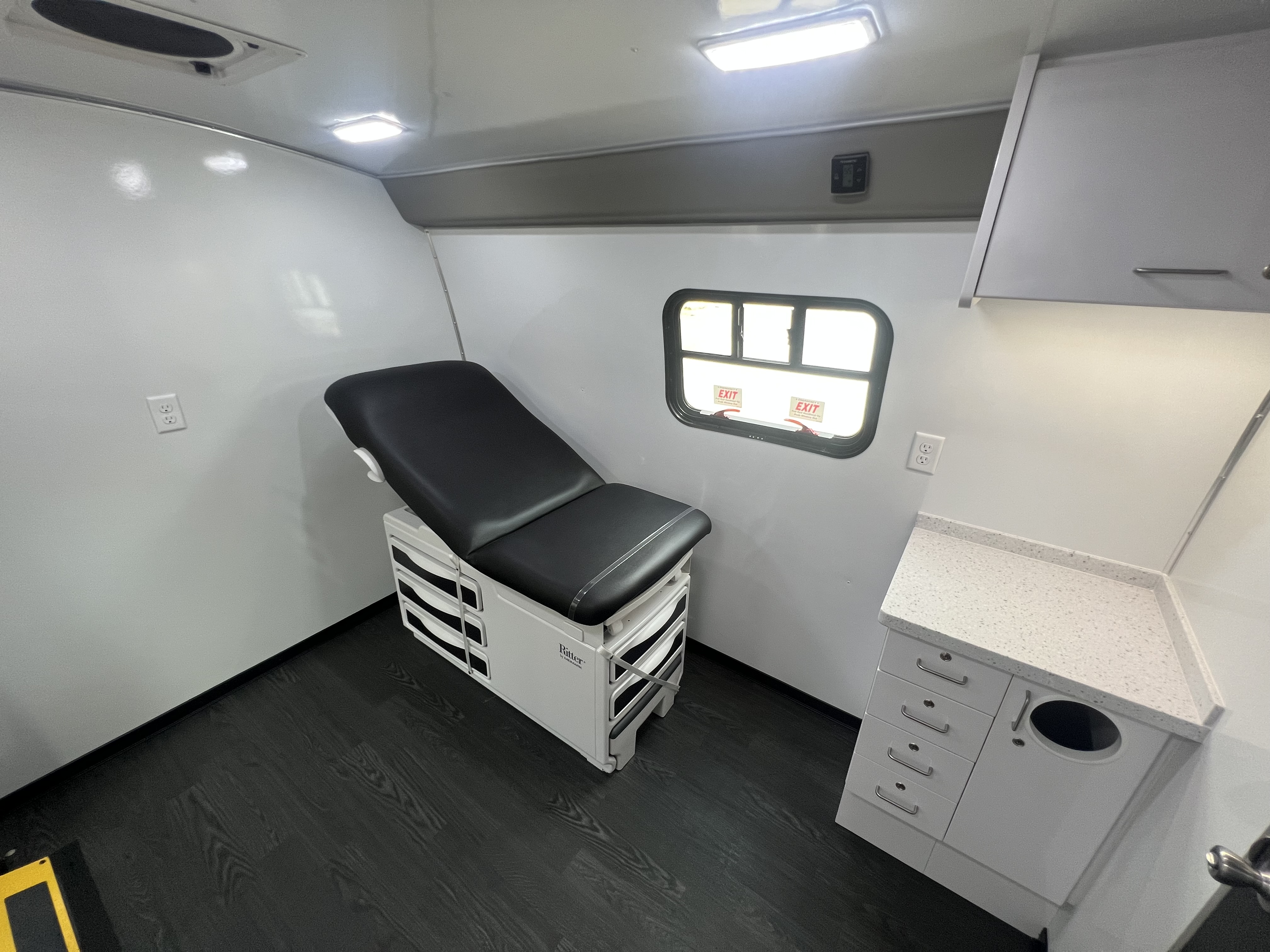

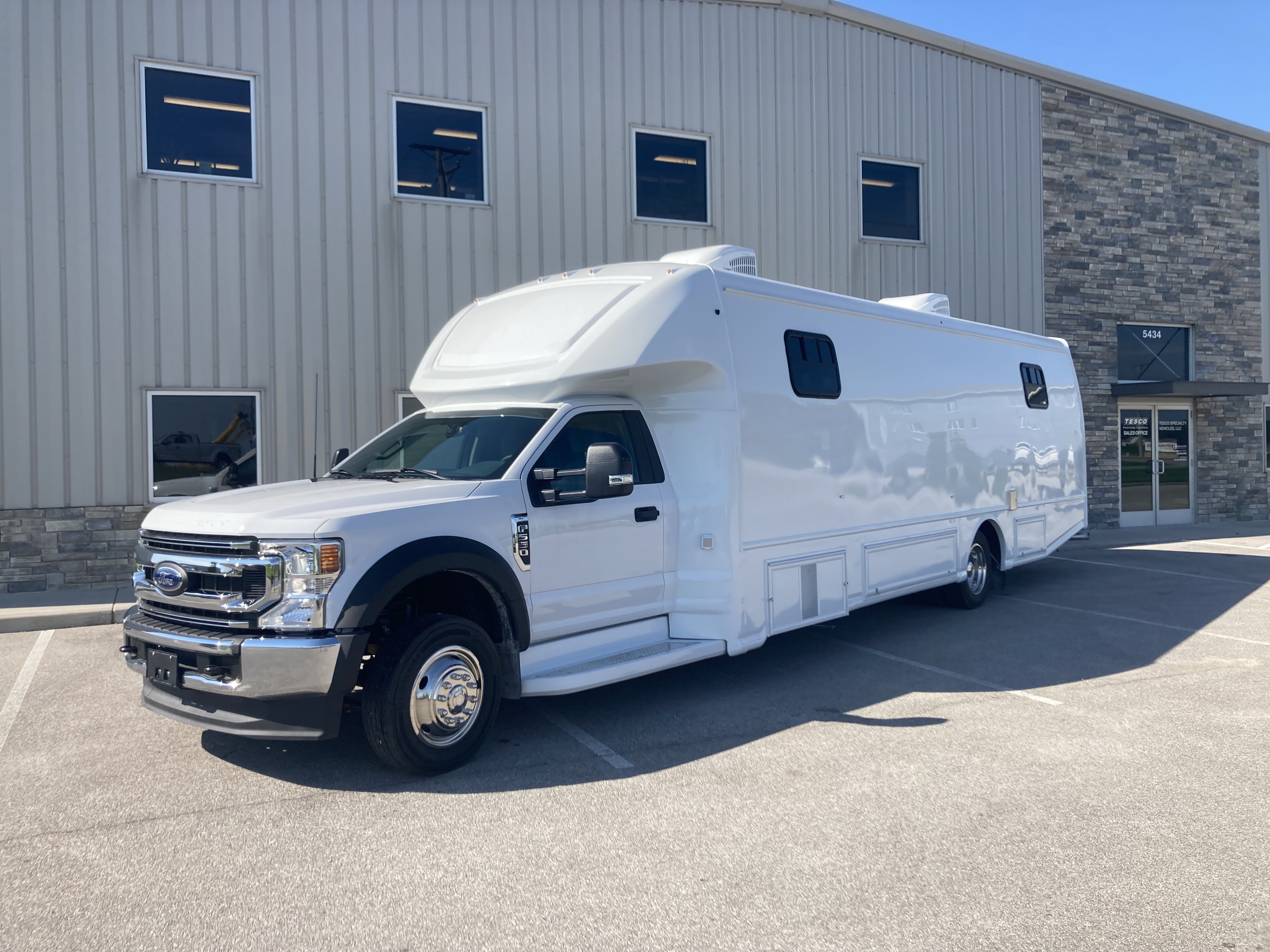

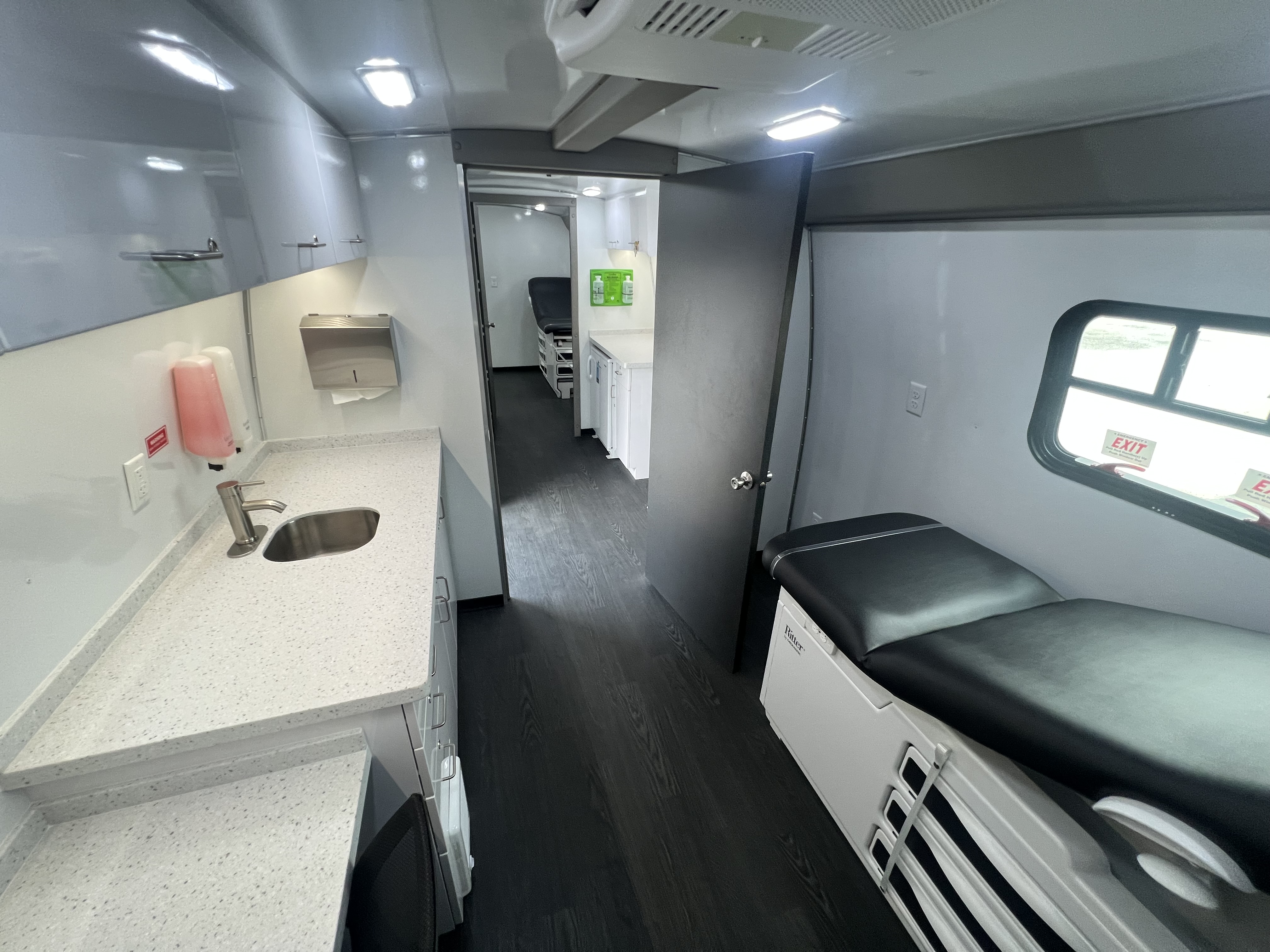

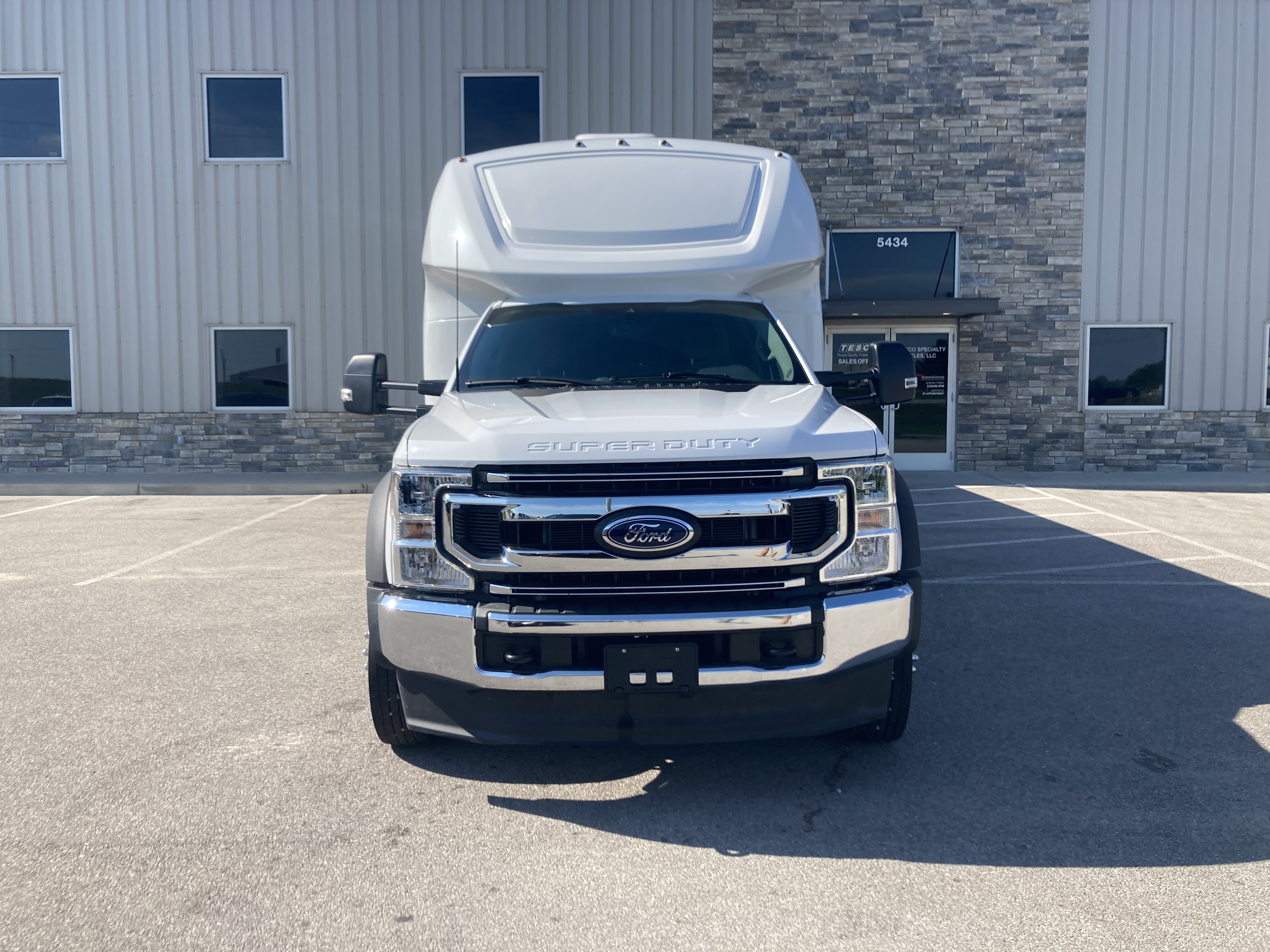

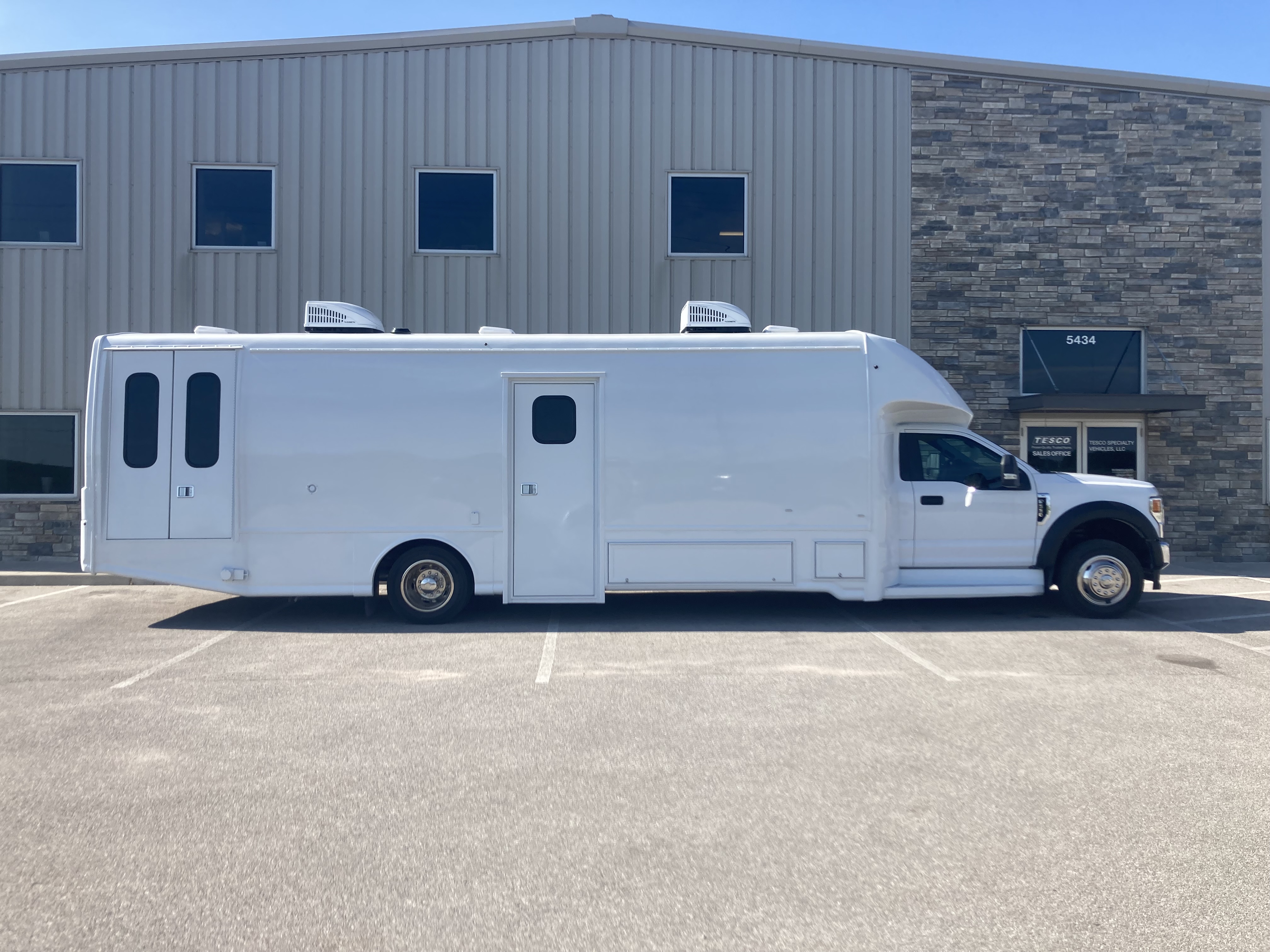

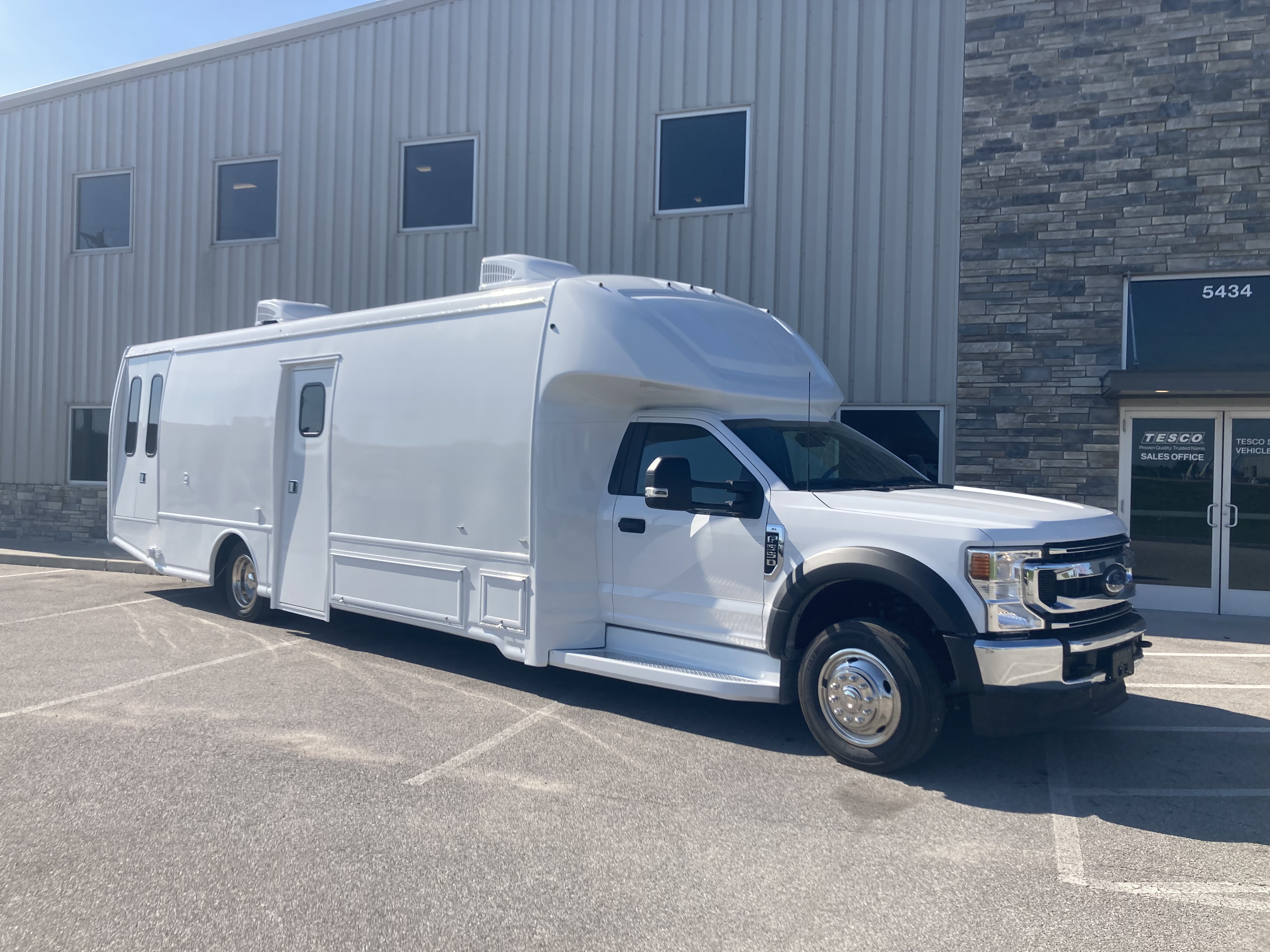

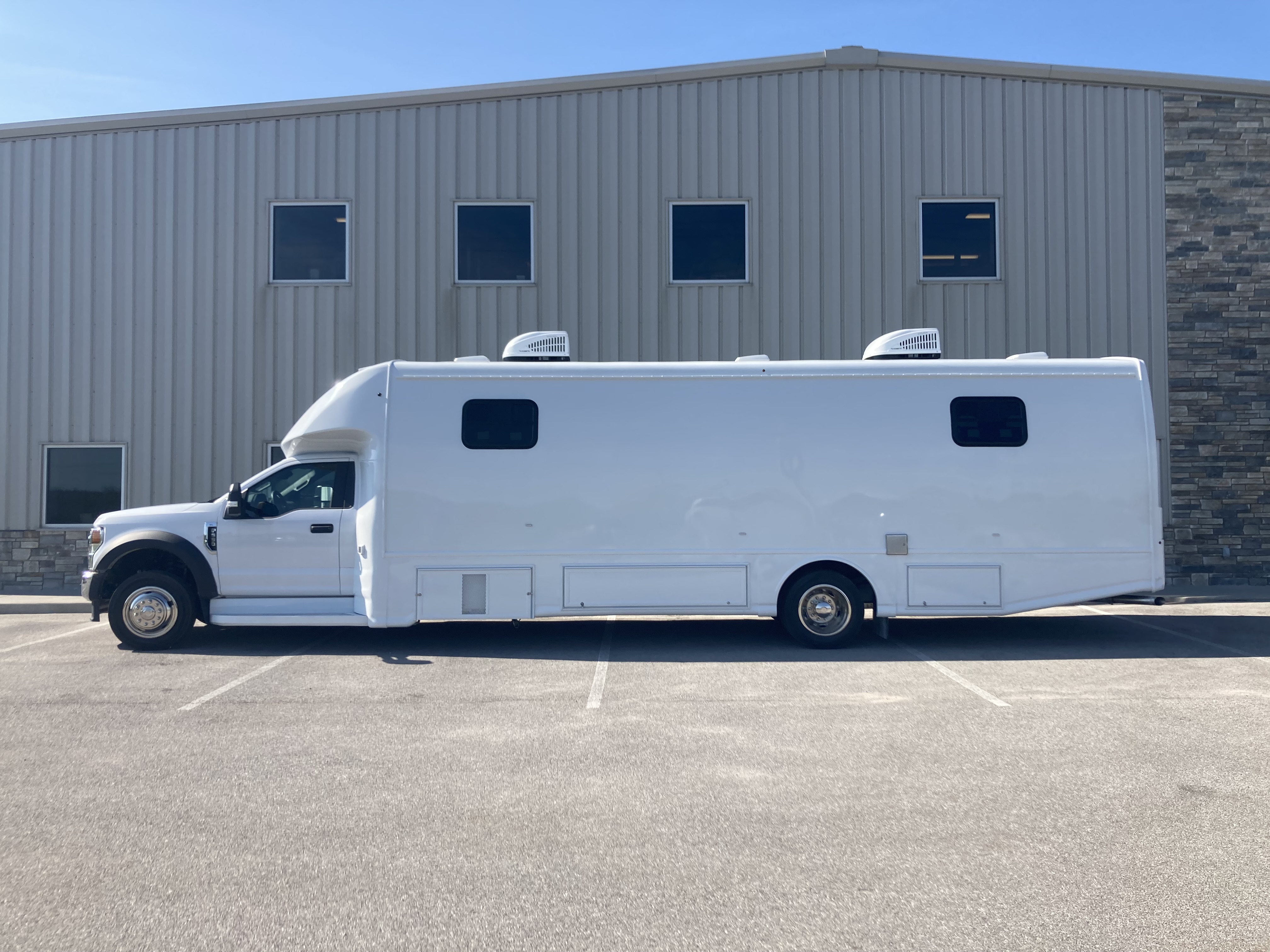

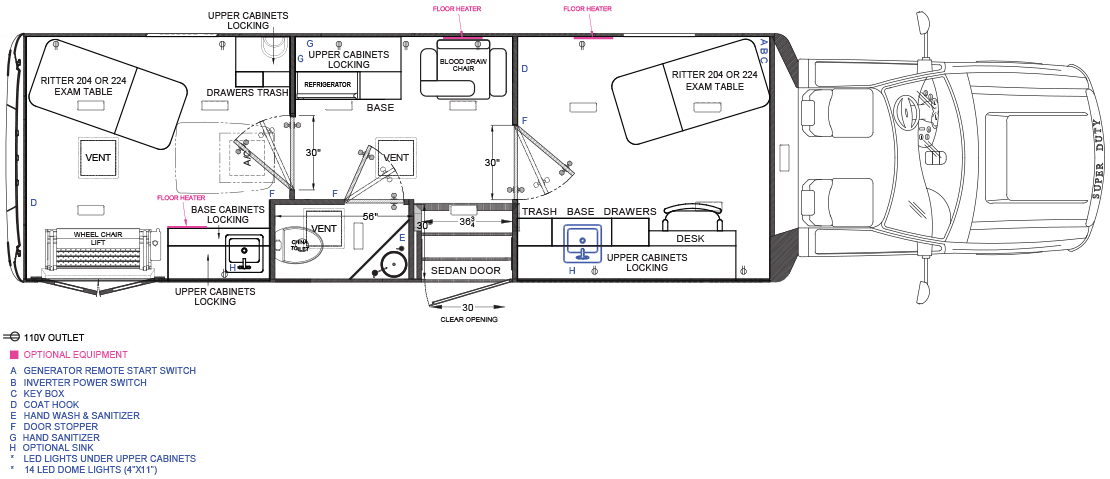

Two Room Mobile Health Unit with Wheelchair Lift

Vehicle Summary:

Group: G
Total Length: 37'
Chassis: Ford F550
Capacity: 1 Passenger & Driver
GVWR: 19,500#
Body: Mobile Medical Clinic
Engine: 7.3L Gas
Sell Price: Call

360° Tour:

Vehicle Description:

Standard Chassis Equipment
  • Ford F‐550 7.3L V8 Gas Engine
  • 19,500# GVWR
  • 10 Speed Automatic Transmission
  • 4.88 Limited Slip Rear Axle Ratio
  • Daytime Running Lights
  • Power Steering, Cruise Control
  • 50 State Emissions
  • AM/FM/MP3 Clock Radio
  • Tires ‐ 225 BSW AP 19.5
  • Bright Grille
  • Jack
Standard Body Equipment
  • Fiberglass Front & Rear Cowls & Fiberglass Composite Exterior Sidewalls
  • Welded Perimeter Steel Floor Frame Supported by Welded Crossmembers
  • Welded Tubular Steel Cage and Subfloor
  • Steel Track Mounted in Floors & Sidewalls
  • Steel Wheel Well Plates
  • 1" Polystyrene Foam Board Insulation

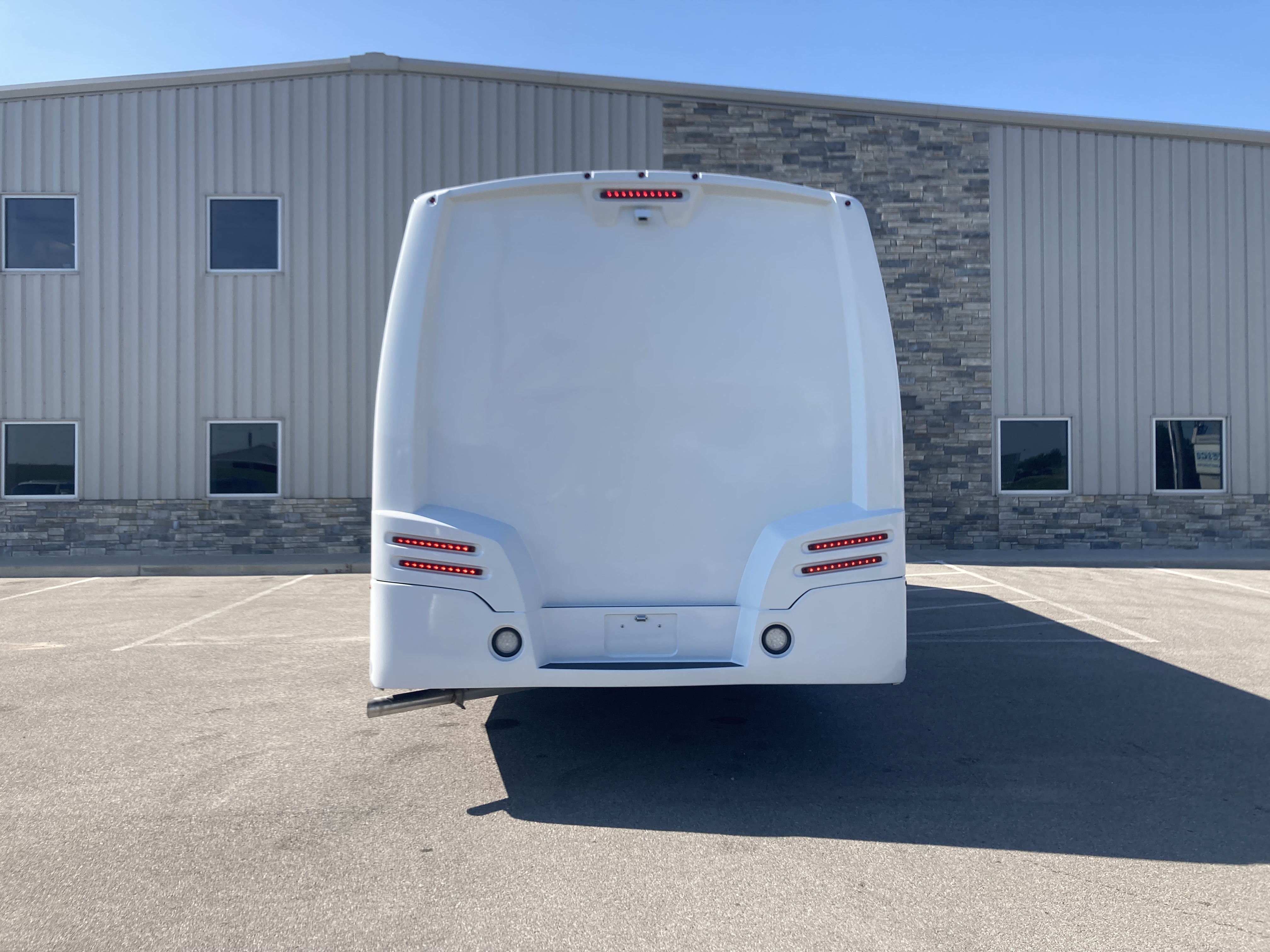

  • Steel Reinforced Fiberglass Rear Step Bumper
  • Drive Shaft Guards
  • One‐Piece Pre‐Molded Fiberglass Roof
  • LED Upper Running/ Clearance Lights per FMVSS 108 (9 Amber & 7 Red)
  • Velvac 2020XG‐OAT Mirrors
  • Bright White Fiberglass Reinforced Ceiling & Sidewalls

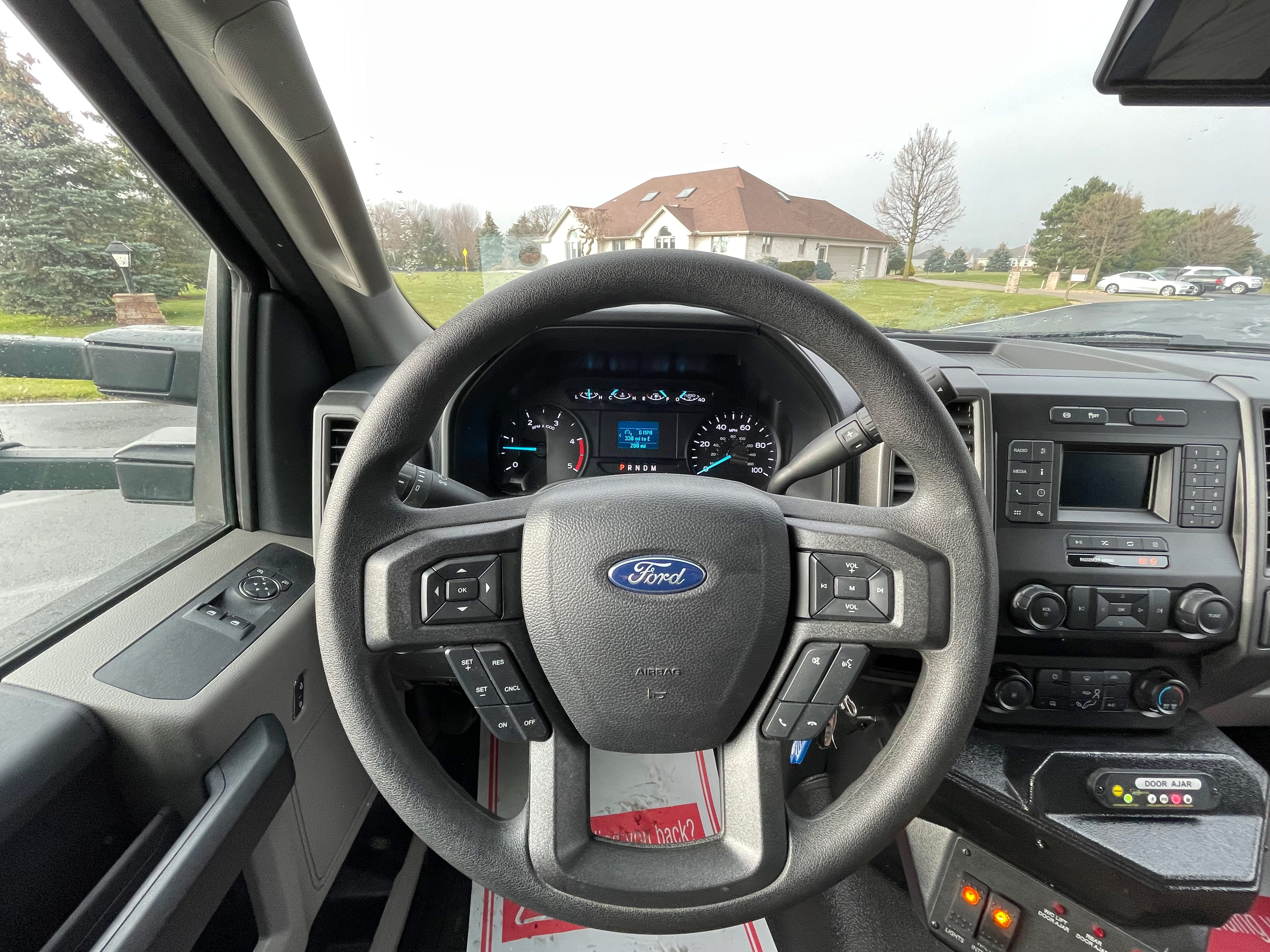

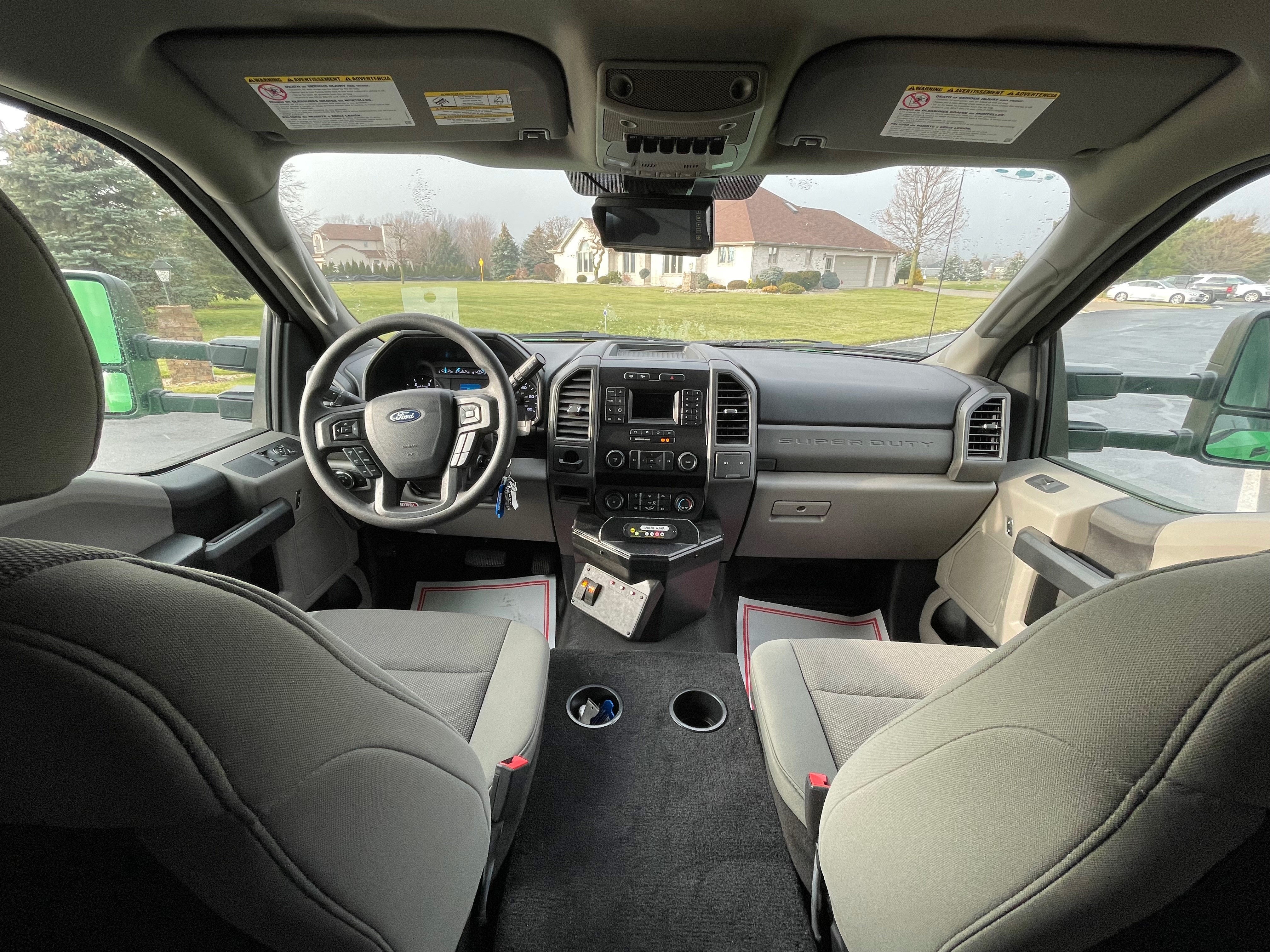

  • Driver Friendly Command Center w/ Lighted Switches
  • Contoured Fiberglass Lower Body Skirts
  • 5/8" AdvanTech Subfloor
  • OEM Front Mud Flaps, Turtle Top Rear Mud Flaps
  • Steel Cage Primered w/ Rust Inhibitor
  • Underbody Foam Sealed & Undercoated
  • LED / Reflective Amber Lower Midship Side Marker Lights (2)
  • LED Stop/Tail/Turn Lights Inc LED/Reflective Red Rear Side Marker Lights (2)
  • Red Reflectors (2 Rear)
  • Backup Lights & LED License Plate Lights
  • 80" Interior Height
  • Flat Floor is Standard
  • OEM Dash A/C & Heat Standard
  • OEM Interior Rear View Mirror
  • Color‐Coded High Temp GXL Wiring Harness w/Weatherproof Connectors
Chassis
  • Chassis MOD‐WB Stretch 205" to 267"
Climate Control
  • (2) Roof A/C‐15,000 BTU Cool Only
  • (3) Roof Vent‐Fantastic 4000 Series Fan‐14"
  • (2) Heat Coil
Doors/Windows/Mirrors

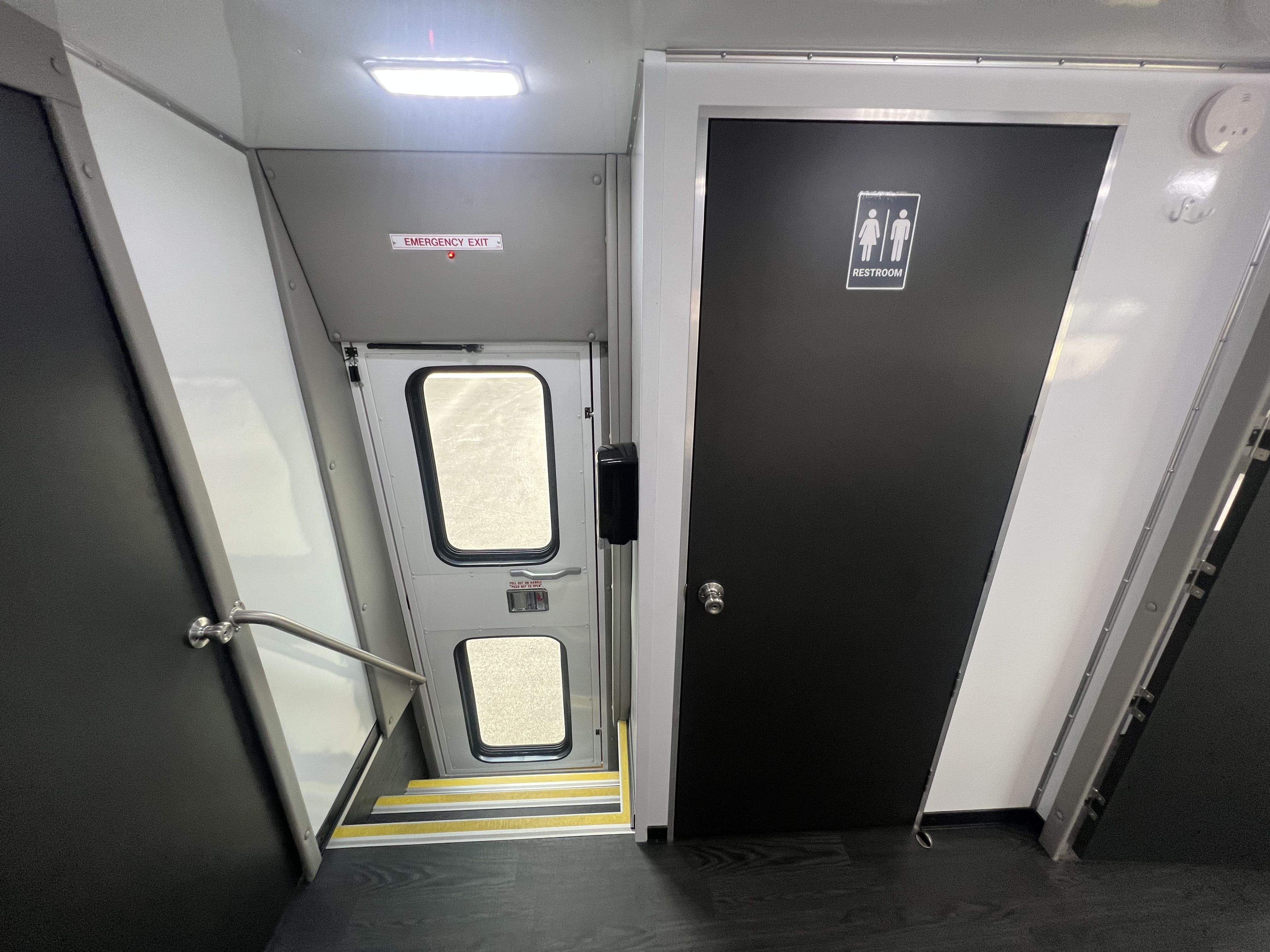

  • H.D. Sedan Style Entry Door w/Stepwell‐In‐Body
  • (2) Egress Bay Window 18 7/8" x 28 5/8" w/Bottom T Slider
Electrical

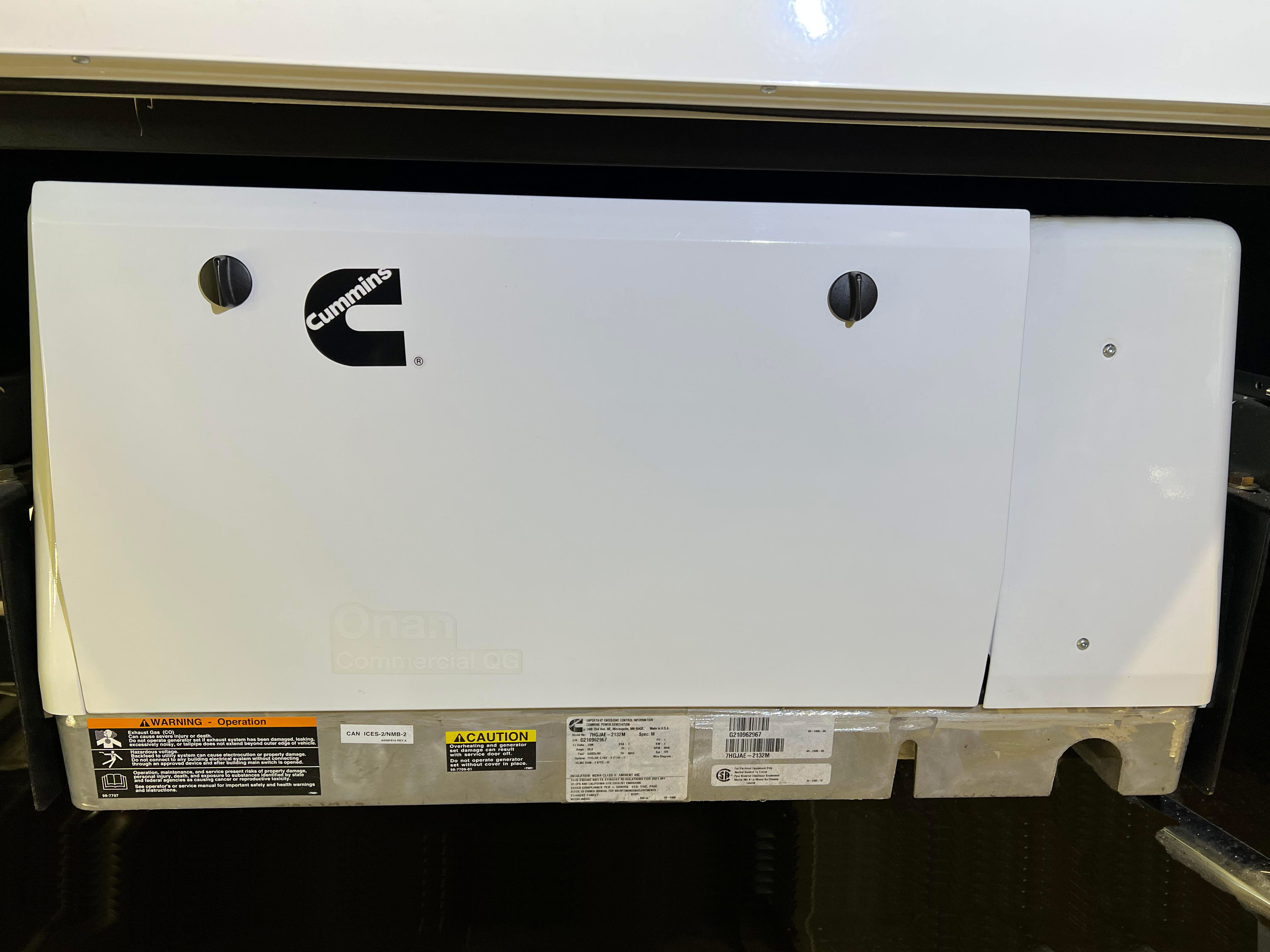

  • Cummins Onan Quiet 7 Kw Generator w/Interior Start Button & Hour Display
  • Inverter Wired Hot al all Times‐Manual Shut‐Off
  • Wire One 110V Outlet to be Hot at All Times
  • (2) 12V Wire Circuit
  • (2) Pull 110V 12 Gauge SL Cable, One 20 AMP Breaker Installed Group 31 Hybrid Batteries
  • RVS Backup Camera ‐ 7" Mirror Monitor
  • Heat Kit for Bathroom Waste Tank
  • (2) Replace Std. Dome Lights with 4"x11" LED Light
  • Interior Switch for Dome Lights
  • (9) Pull 110V 14 Gauge SL Cable, One 15 AMP Breaker Installed
Interior
  • (2) Gray Vinyl Padded/FRP Wall With Door Low Profile Toilet
  • Two Tank Monitoring System

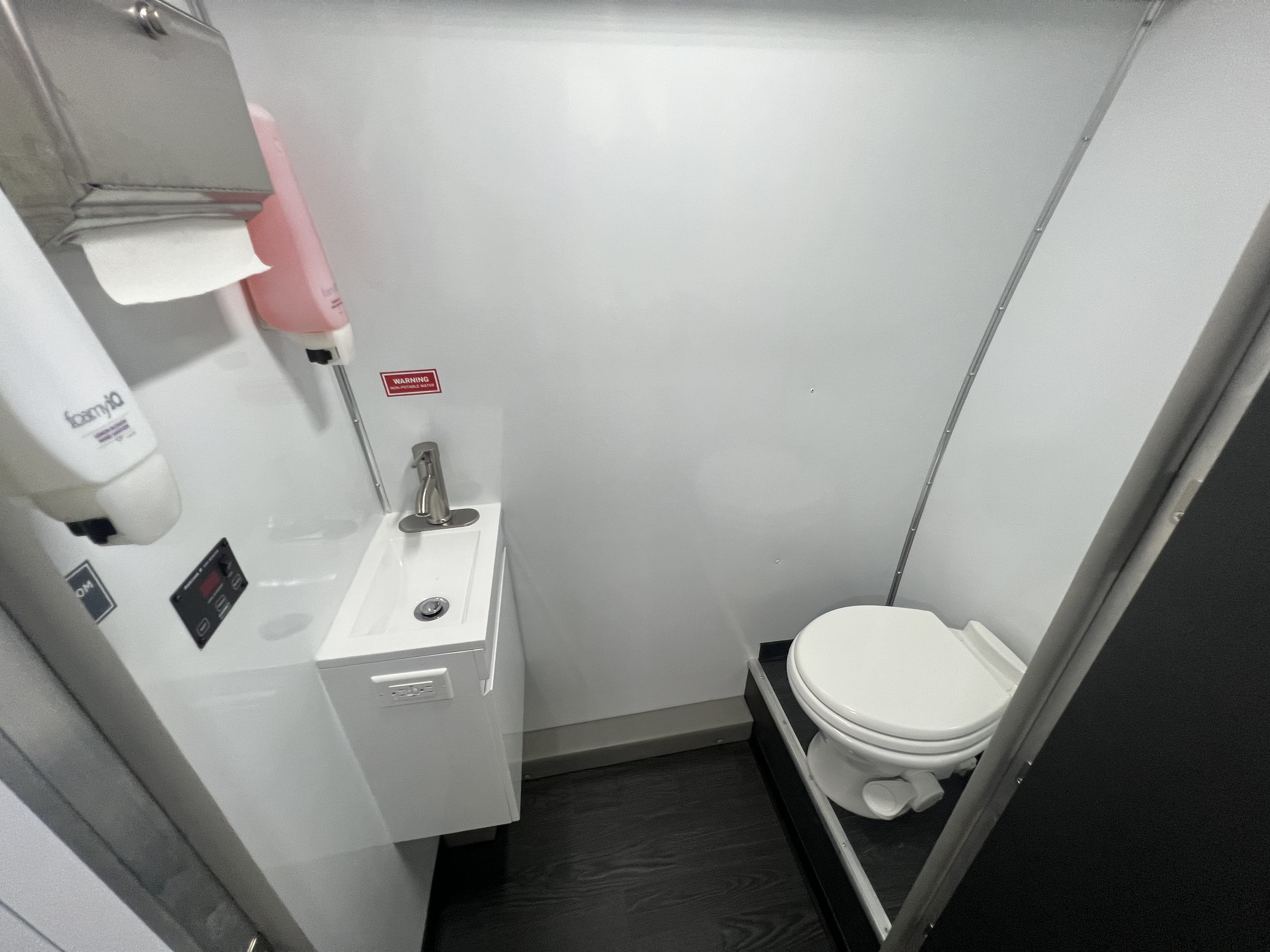

  • Bathroom Kit
  • Additional Steel Backer in Ceiling/Wall
  • Front Bulkhead Storage Area
  • Altro Faux Wood Floor Upgrade
  • Generator Enclosurer Kit
  • Exterior Skirt Storage 36" W 27" D 16" H
  • Generator Prep Kit
  • Exterior Skirt Storage 72"W 27"D 16" H
Paratransit Equipment

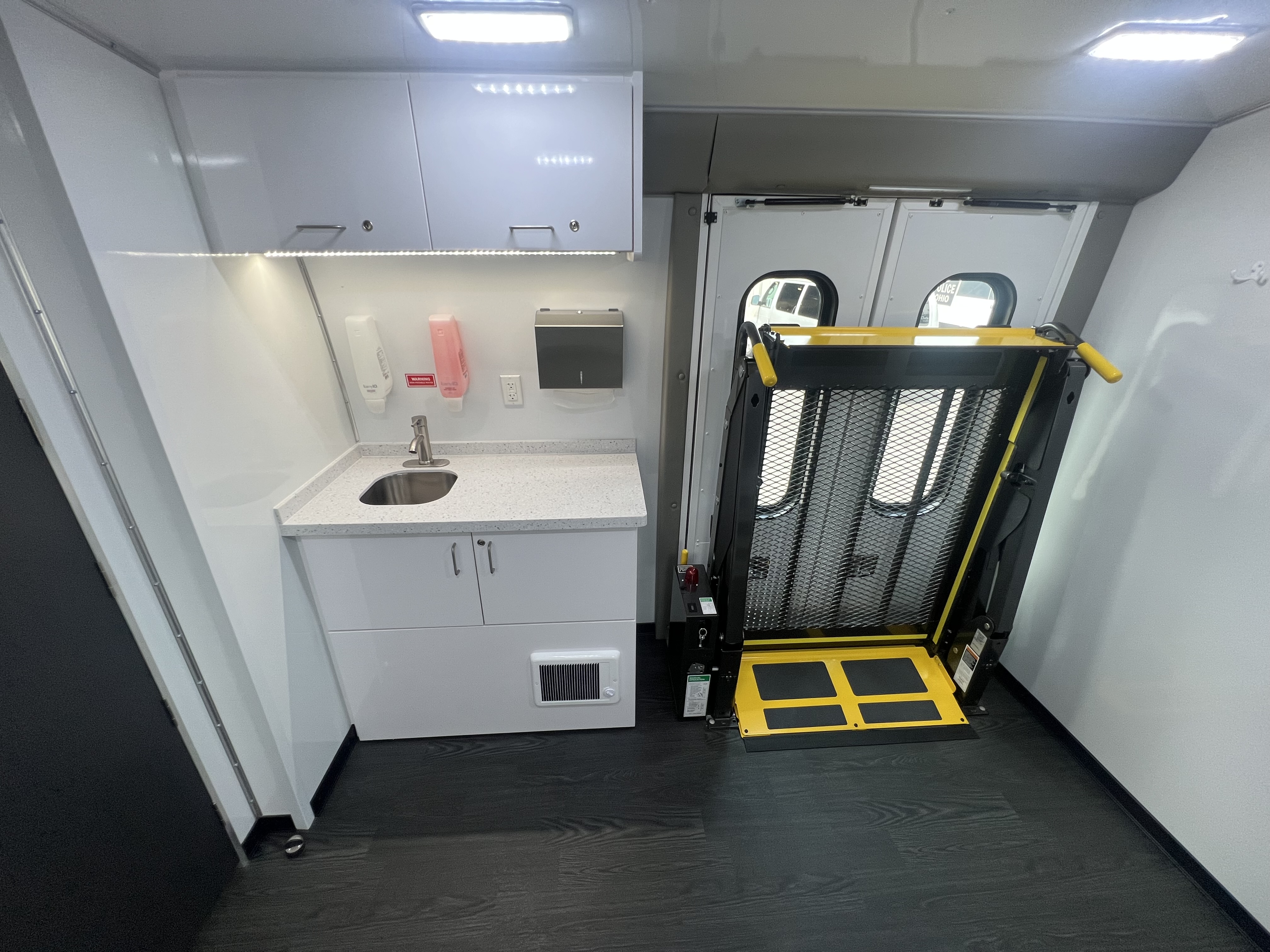

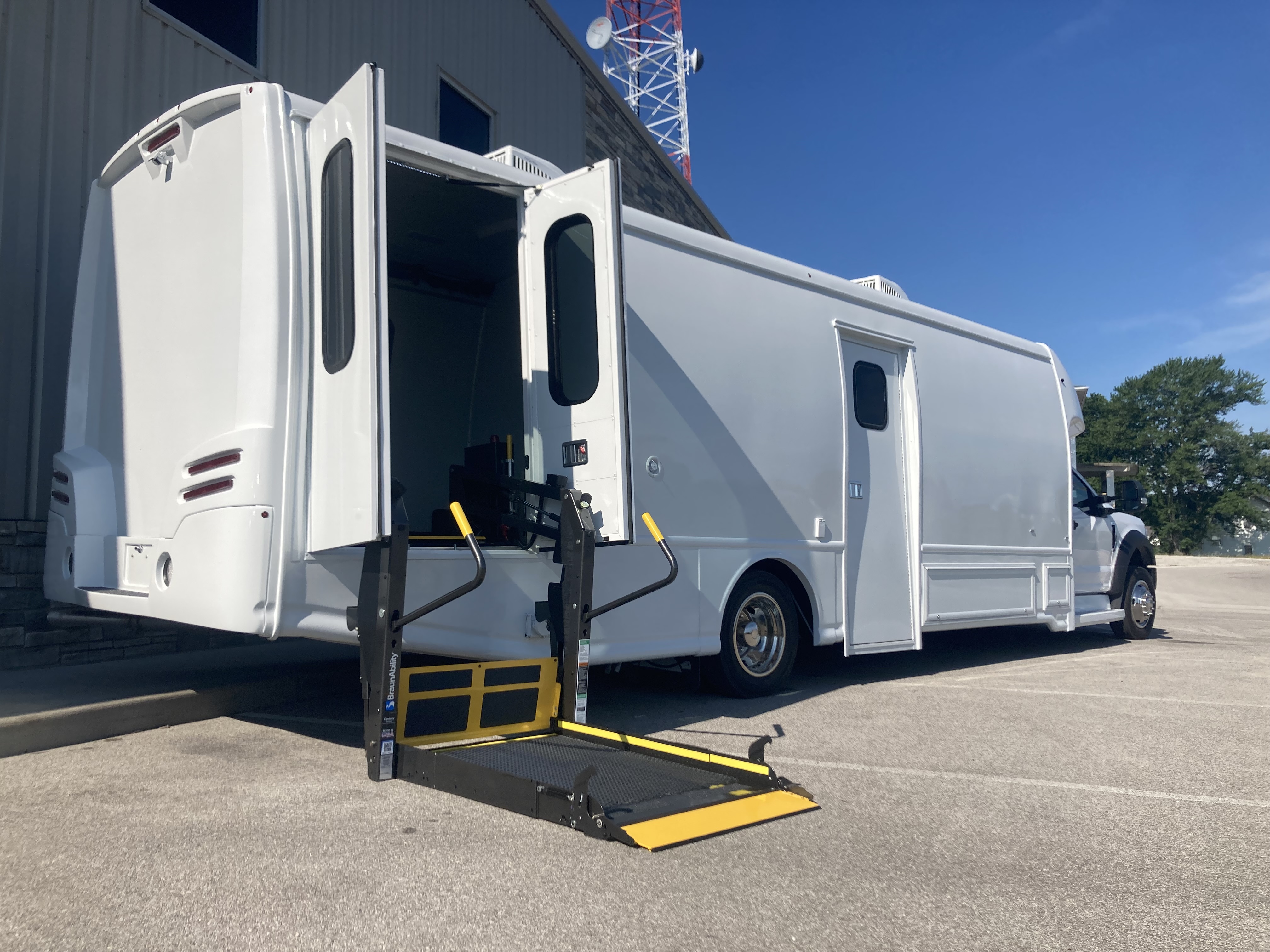

  • Braun Century Lift NCL919 ‐ 34" Wide
  • Double W/C Lift Door ‐ Deluxe
Safety
  • Locking Fuel Door ‐ Deluxe (N/A Transit Chassis)
  • LED Brake Light ‐ Center High Mount
  • Back Up Alarm
