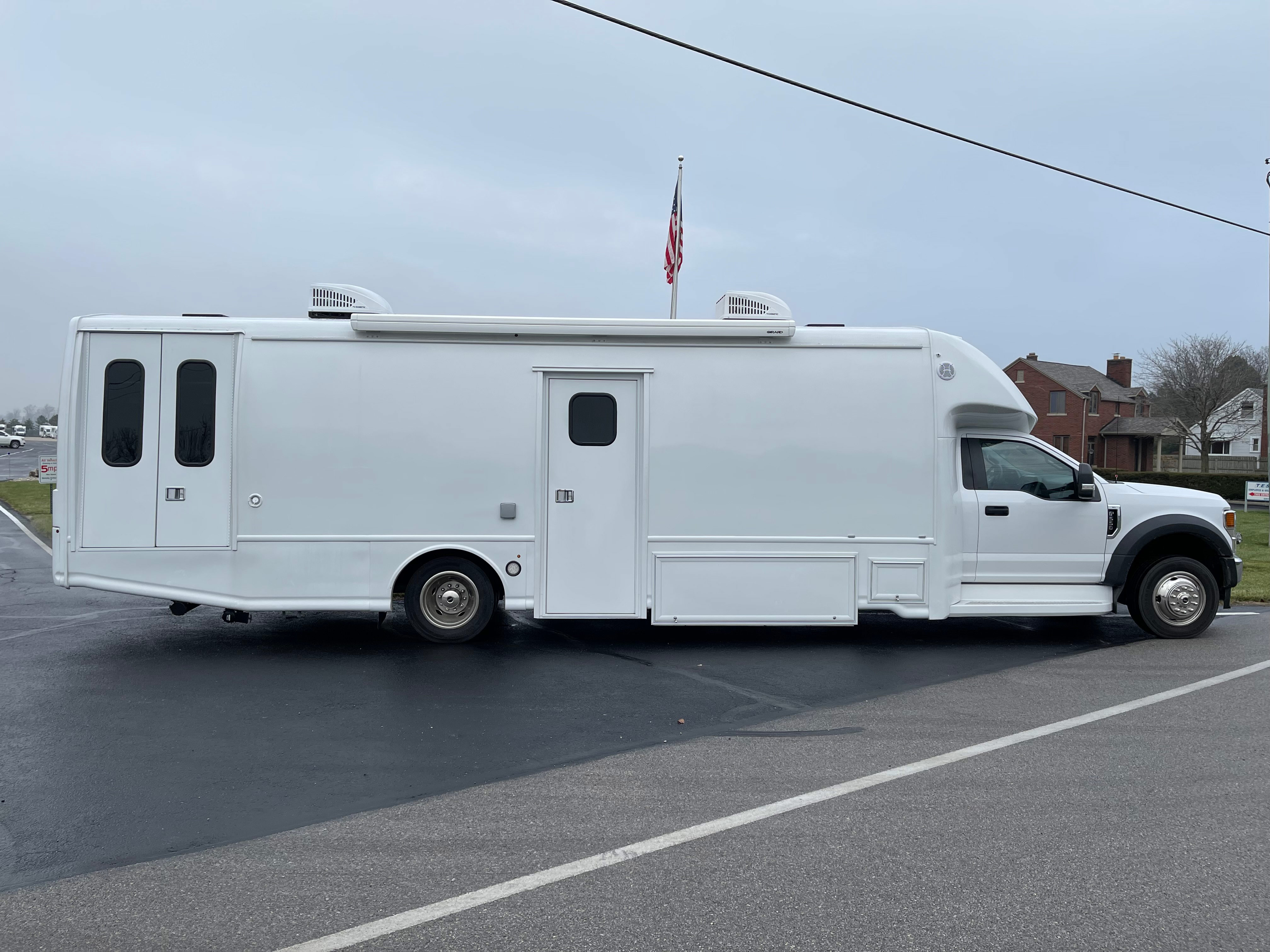

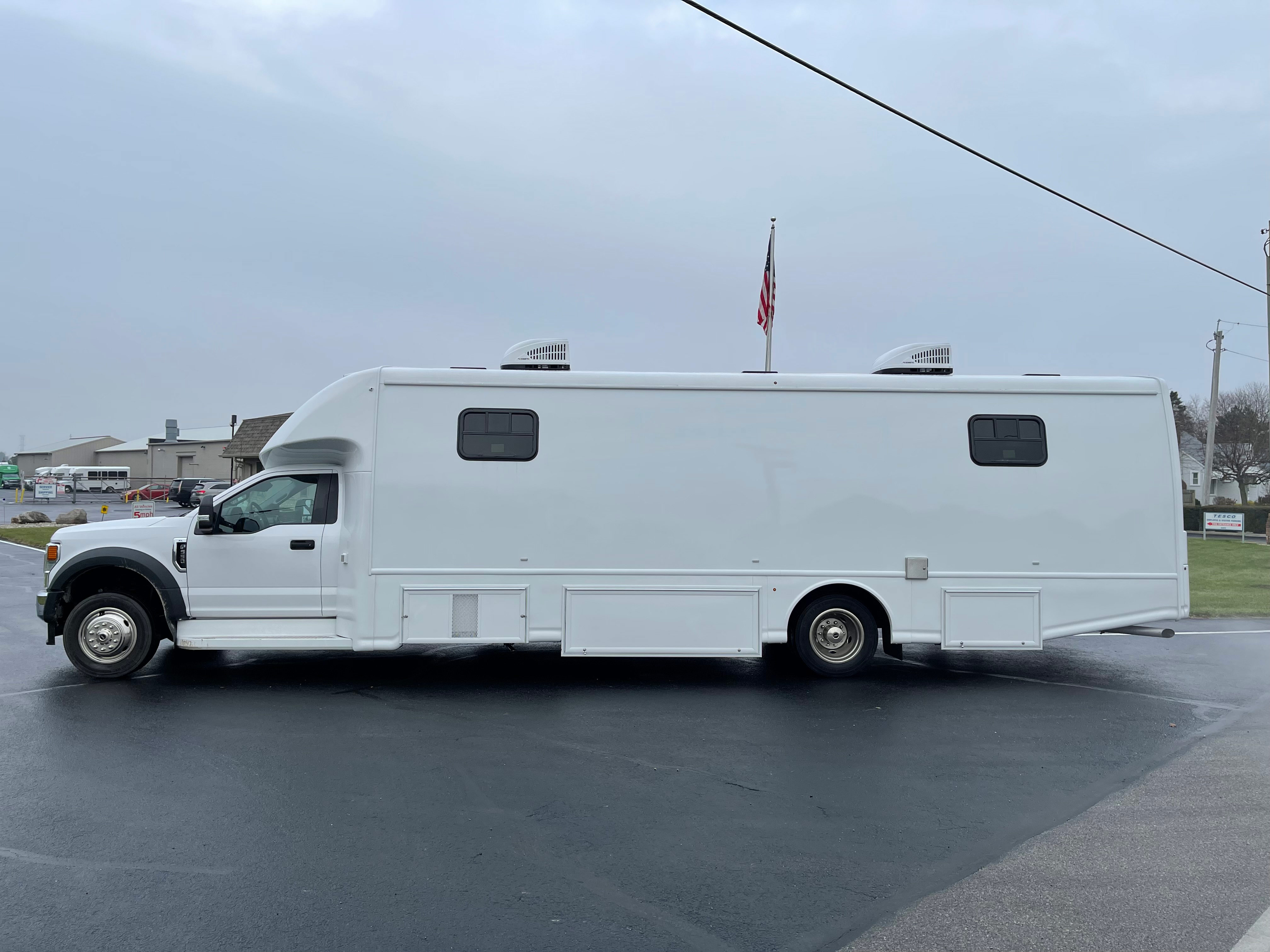

Vehicle Description:

Standard Chassis Equipment

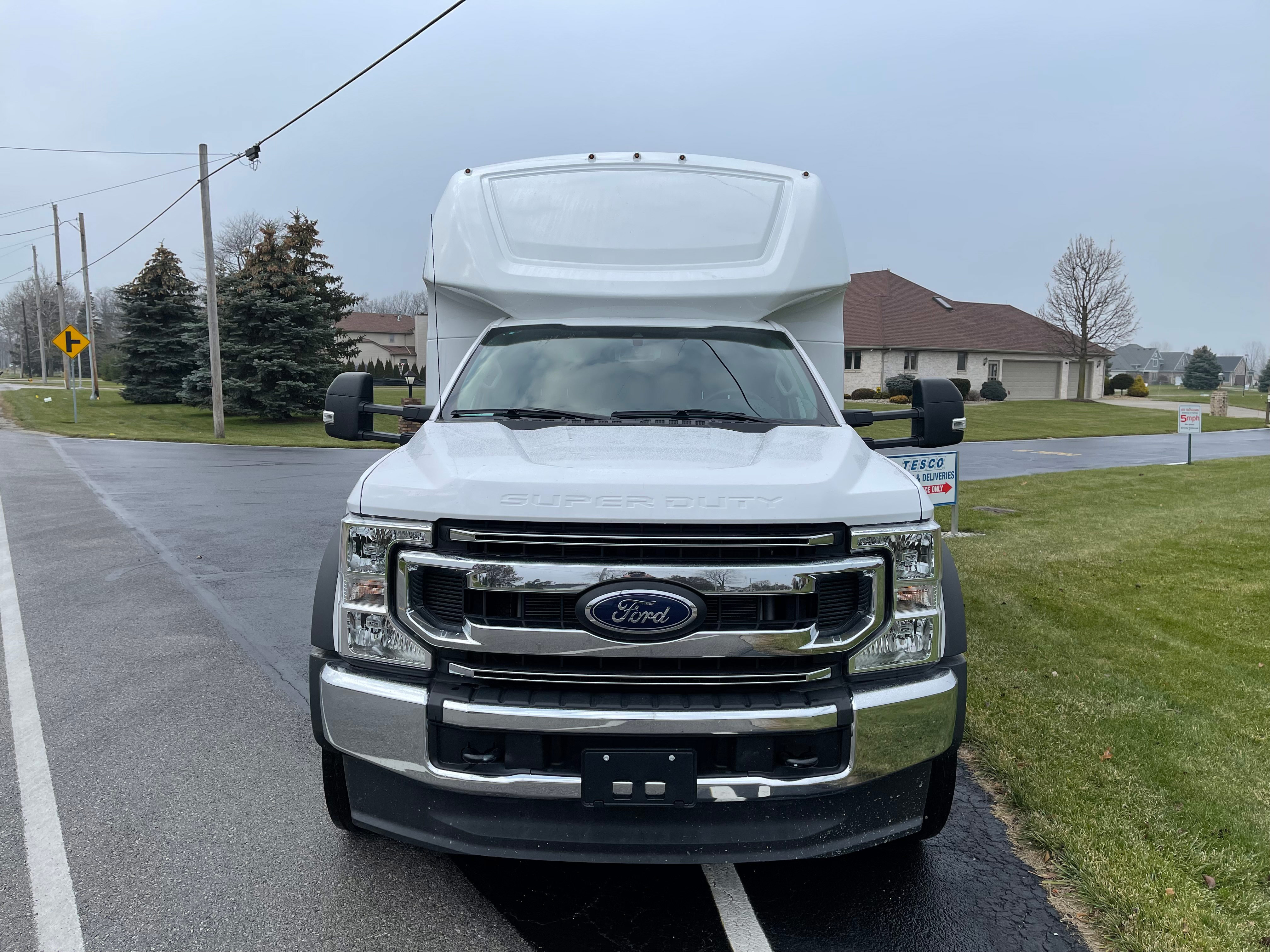

• Ford F‐550 7.3L V8 Gas Engine
• 19,500# GVWR
• 10 Speed Automatic Transmission
• 4.88 Limited Slip Rear Axle Ratio
• Daytime Running Lights
• Power Steering, Cruise Control
• 50 State Emissions
• AM/FM/MP3 Clock Radio
• Tires ‐ 225 BSW AP 19.5
• Bright Grille
• Jack

Standard Body Equipment

• Fiberglass Front & Rear Cowls & Fiberglass Composite Exterior Sidewalls
• Welded Perimeter Steel Floor Frame Supported by Welded Crossmembers
• Welded Tubular Steel Cage and Subfloor
• Steel Track Mounted in Floors & Sidewalls
• Steel Wheel Well Plates
• 1" Polystyrene Foam Board Insulation
• Steel Reinforced Fiberglass Rear Step Bumper
• Drive Shaft Guards
• One‐Piece Pre‐Molded Fiberglass Roof
• LED Upper Running/ Clearance Lights per FMVSS 108 (9 Amber & 7 Red)
• Velvac 2020XG‐OAT Mirrors
• Bright White Fiberglass Reinforced Ceiling & Sidewalls

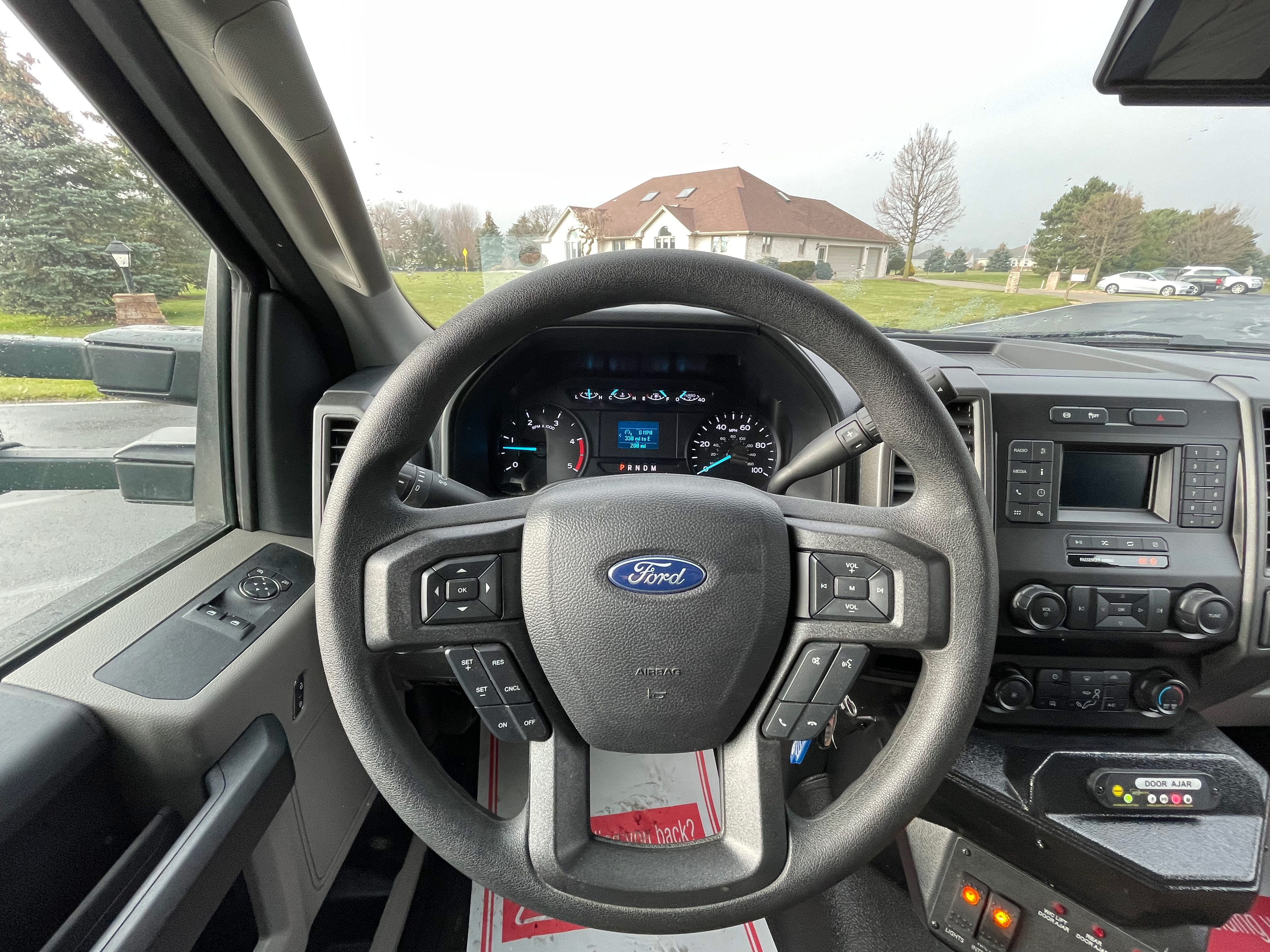

• Driver Friendly Command Center w/ Lighted Switches
• Contoured Fiberglass Lower Body Skirts
• 5/8" AdvanTech Subfloor
• OEM Front Mud Flaps, Turtle Top Rear Mud Flaps
• Steel Cage Primered w/ Rust Inhibitor
• nderbody Foam Sealed & Undercoated
• LED / Reflective Amber Lower Midship Side Marker Lights (2)

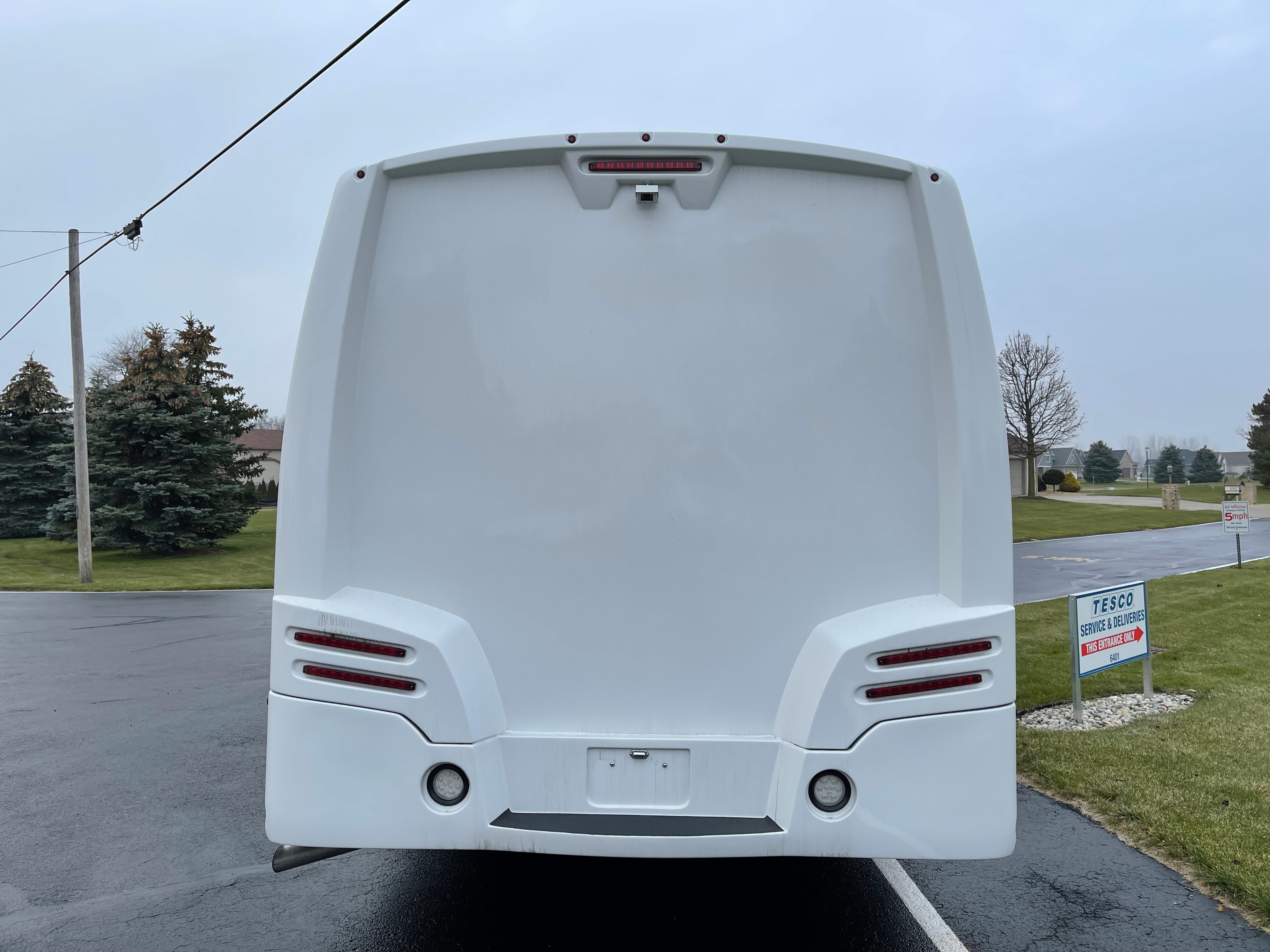

• LED Stop/Tail/Turn Lights Inc LED/Reflective Red Rear Side Marker Lights (2)
• Red Reflectors (2 Rear)
• Backup Lights & LED License Plate Lights
• 80" Interior Height
• Flat Floor is Standard

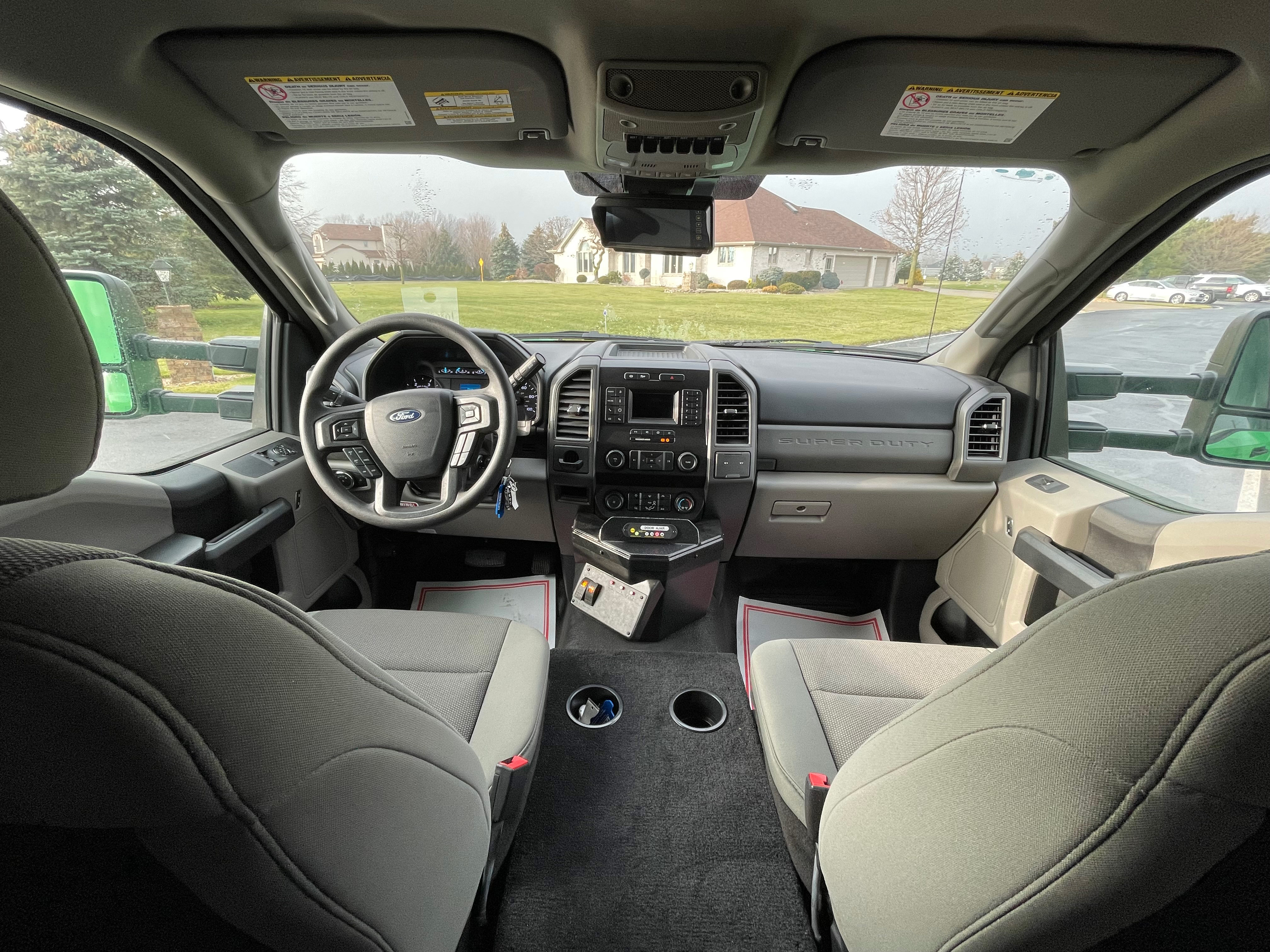

• OEM Dash A/C & Heat Standard
• OEM Interior Rear View Mirror
• Color‐Coded High Temp GXL Wiring Harness w/Weatherproof Connectors

Chassis

• Chassis MOD‐WB Stretch 205" to 267"

Climate Control

• (2) Roof A/C‐15,000 BTU Cool Only
• (3) Roof Vent‐Fantastic 4000 Series Fan‐14"
• (2) Heat Coil

Doors/Windows/Mirrors

• H.D. Sedan Style Entry Door w/Stepwell‐In‐Body

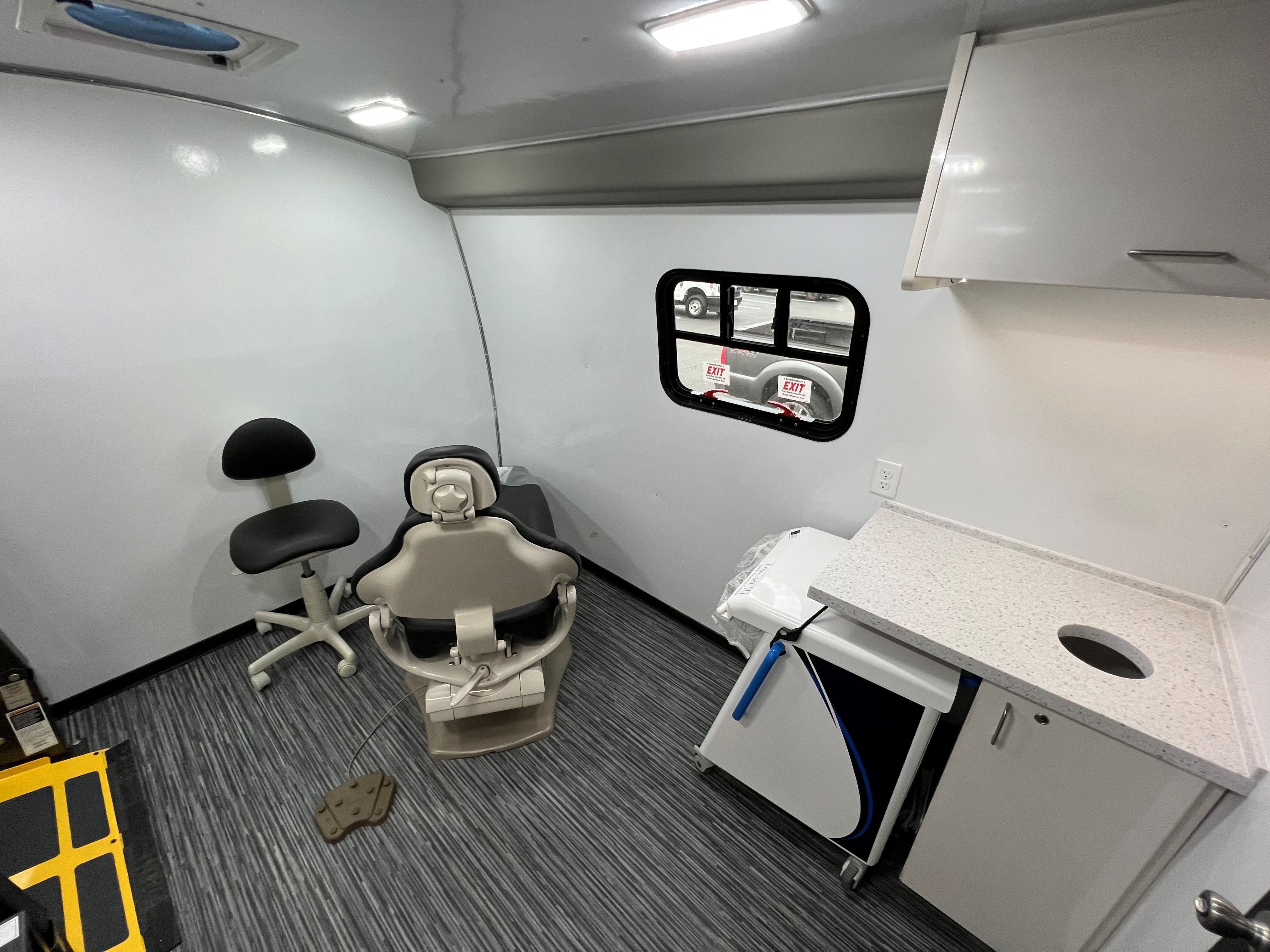

• (2) Egress Bay Window 18 7/8" x 28 5/8" w/Bottom T Slider

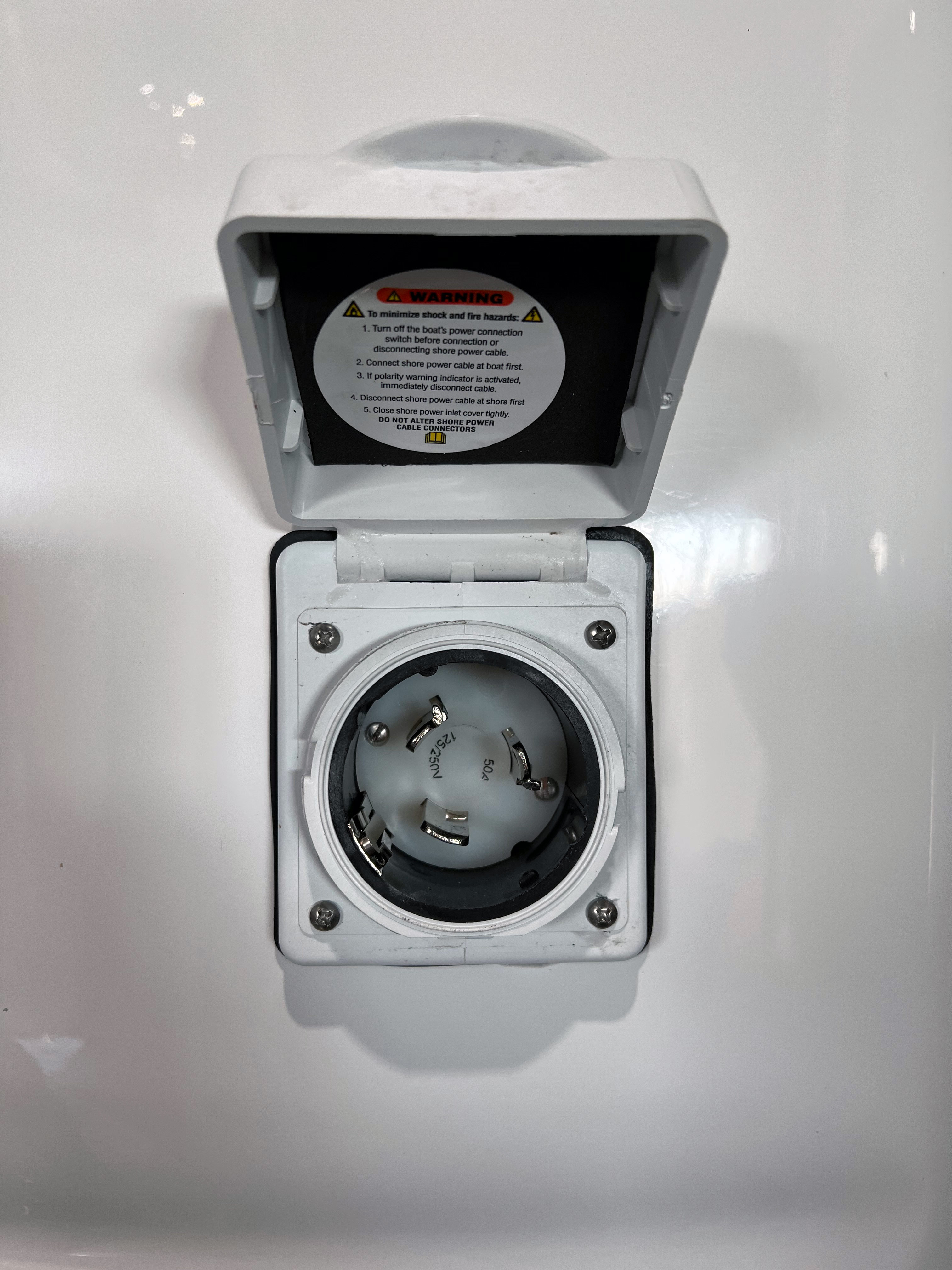

Electrical

• Inverter Wired Hot al all Times‐Manual Shut‐Off
• Wire One 110V Outlet to be Hot at All Times
• (2) 12V Wire Circuit
• (2) Pull 110V 12 Gauge SL Cable, One 20 AMP Breaker Installed Group 31 Hybrid Batteries
• RVS Backup Camera ‐ 7" Mirror Monitor
• Heat Kit for Bathroom Waste Tank
• (2) Replace Std. Dome Lights with 4"x11" LED Light
• Interior Switch for Dome Lights
• (9) Pull 110V 14 Gauge SL Cable, One 15 AMP Breaker Installed

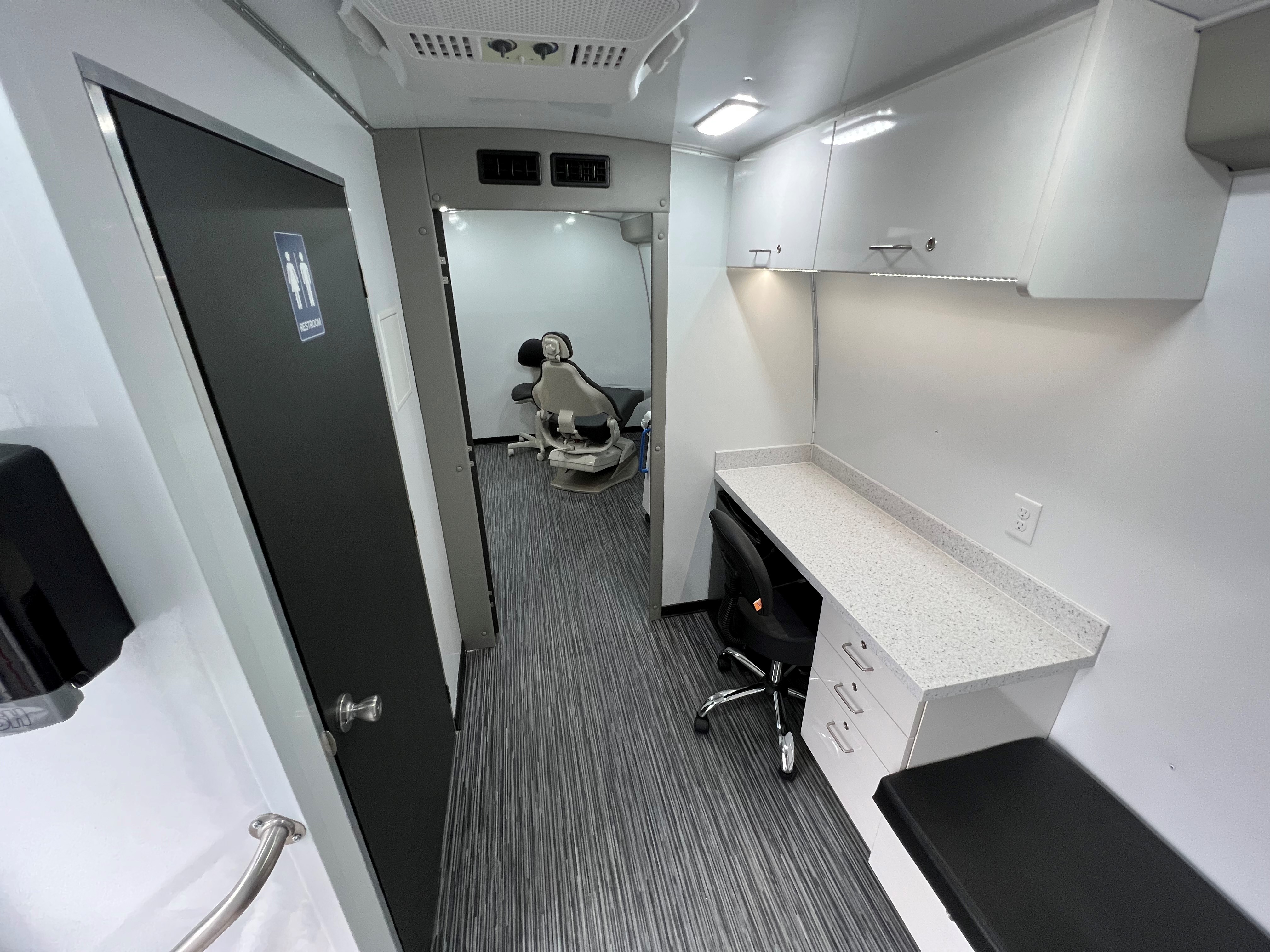

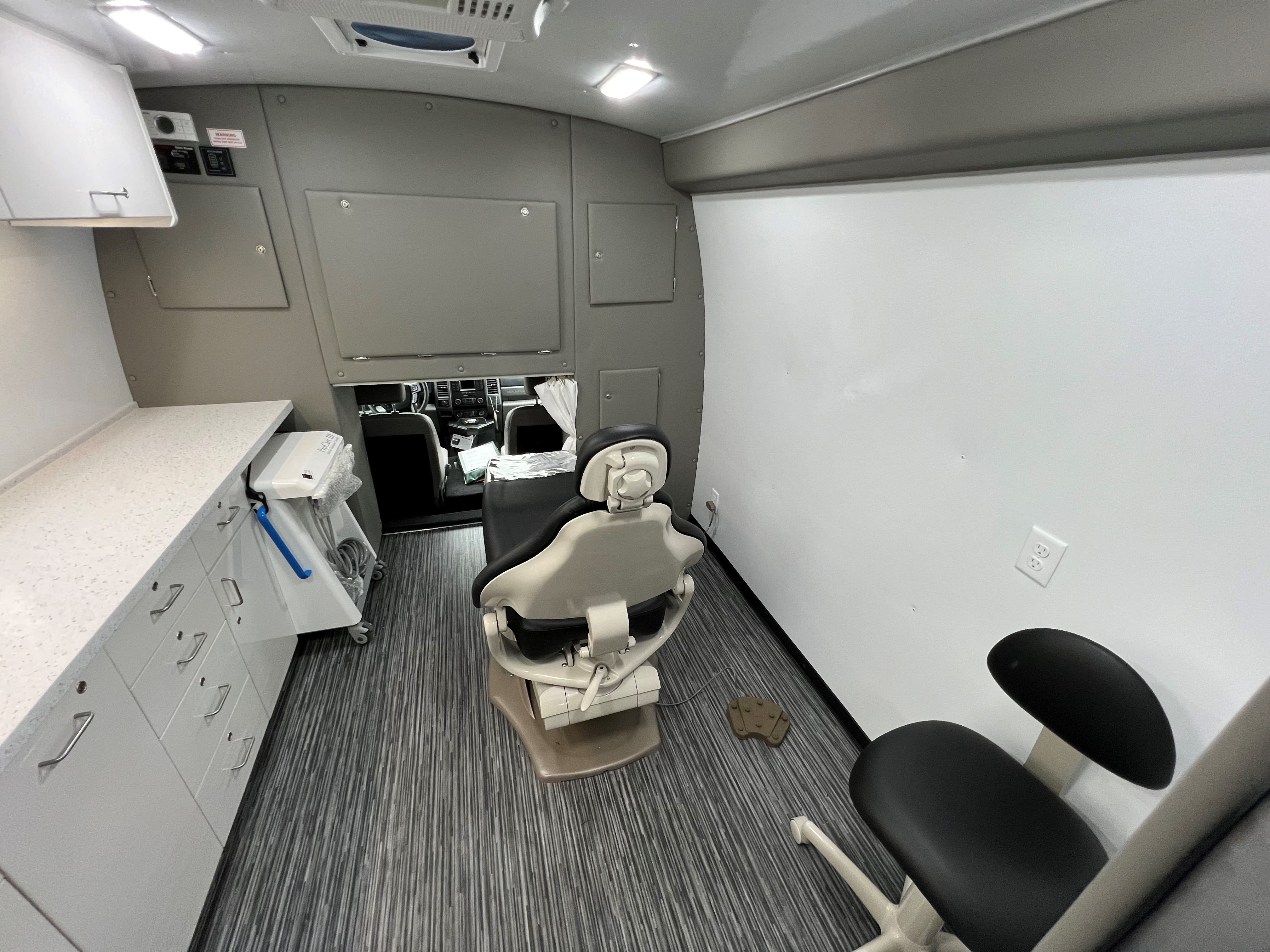

Interior

• (2) Gray Vinyl Padded/FRP Wall With Door Low Profile Toilet
• Two Tank Monitoring System

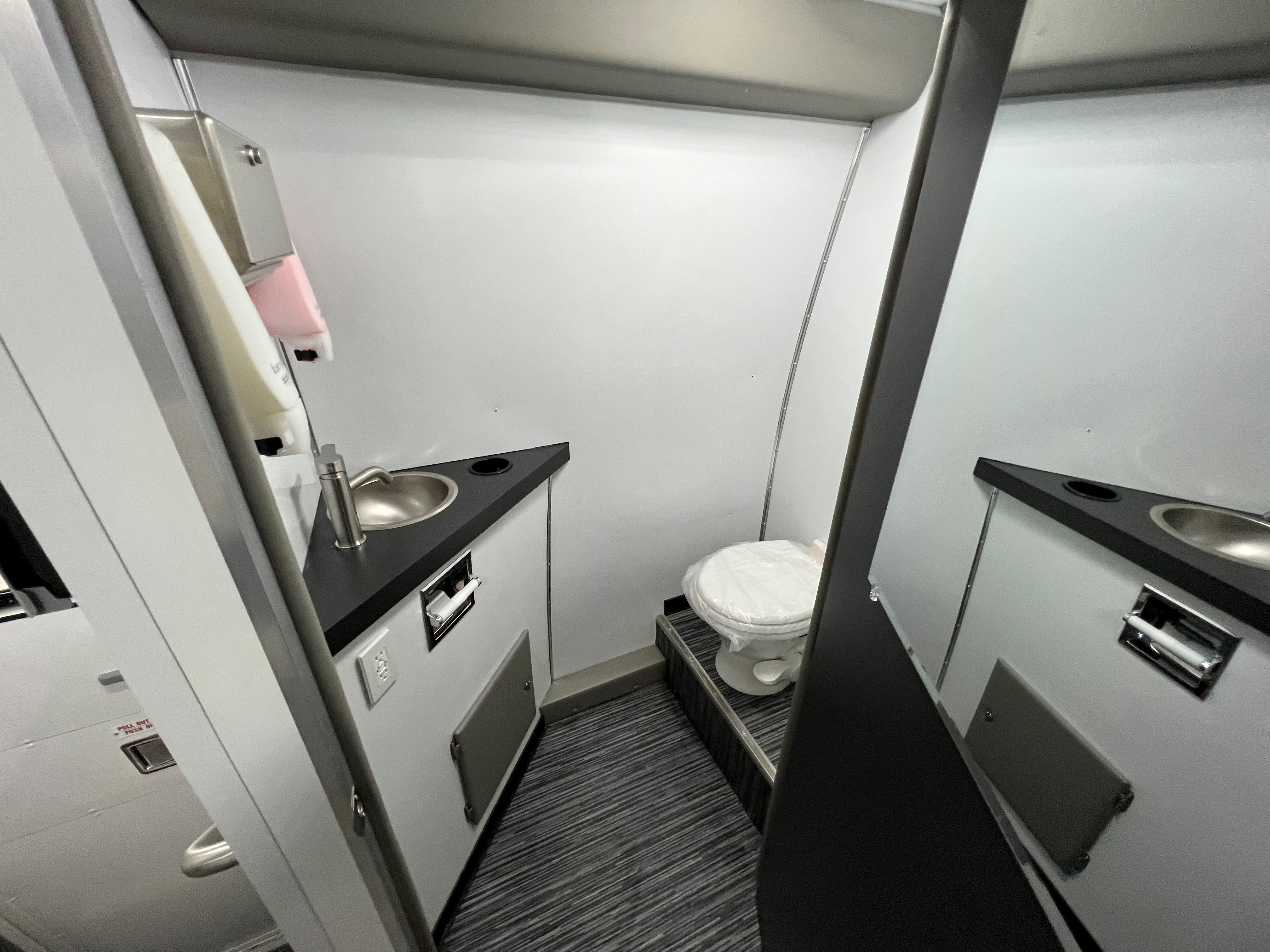

• Bathroom Kit
• Additional Steel Backer in Ceiling/Wall
• Front Bulkhead Storage Area
• Altro Faux Wood Floor Upgrade

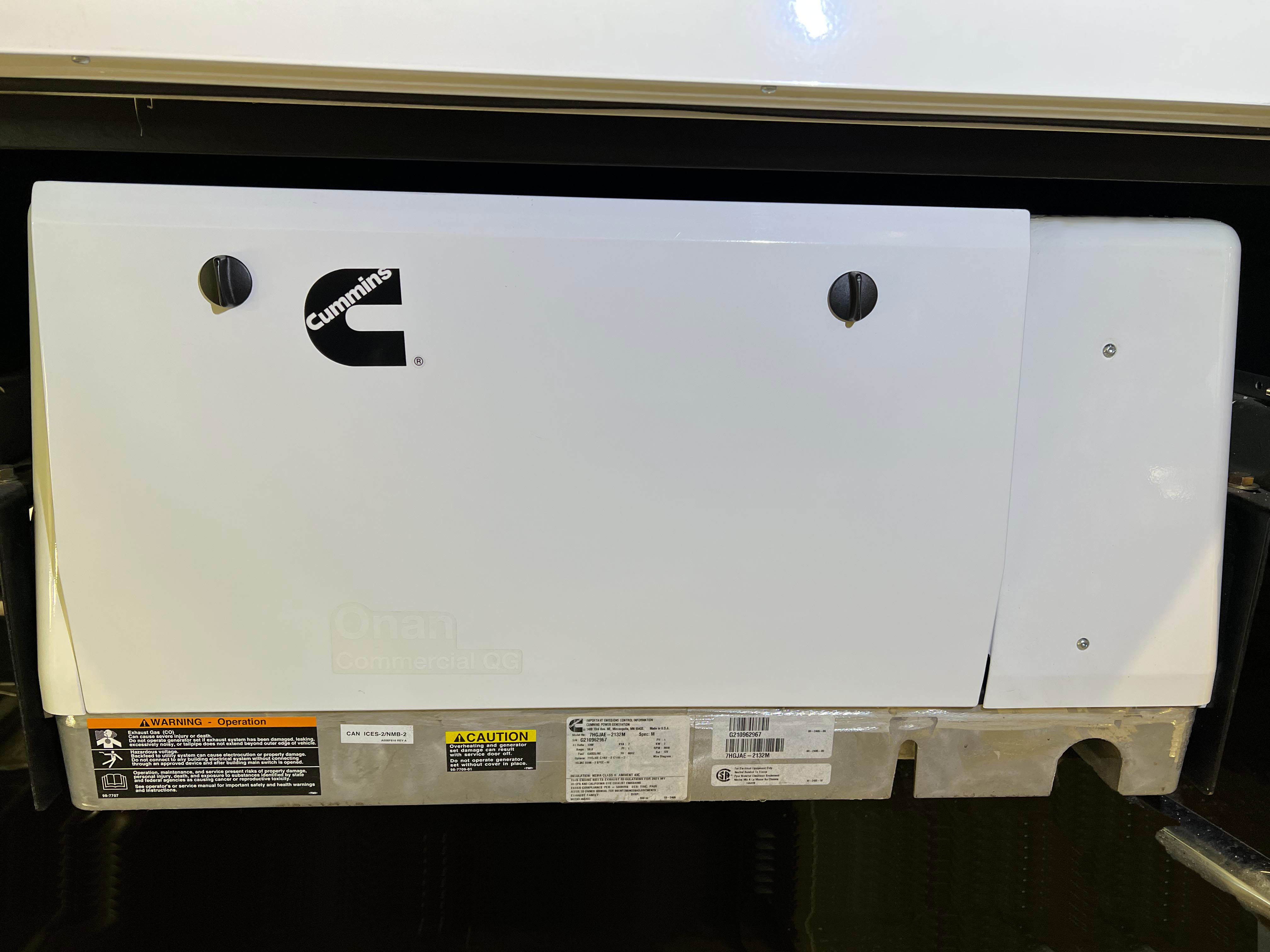

• Generator Enclosurer Kit
• Exterior Skirt Storage 36" W 27" D 16" H
• Generator Prep Kit
• Exterior Skirt Storage 72"W 27"D 16" H

Paratransit Equipment

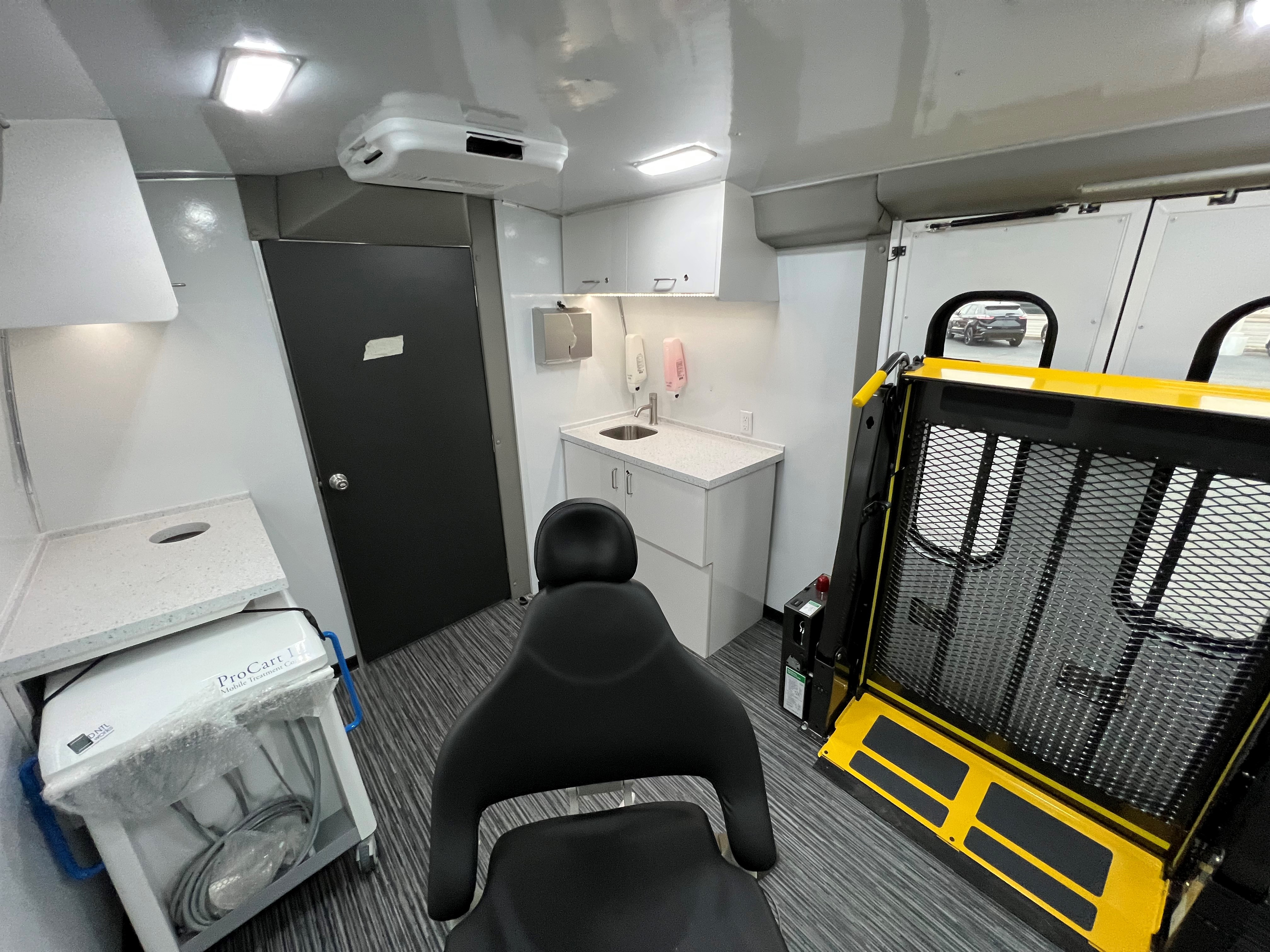

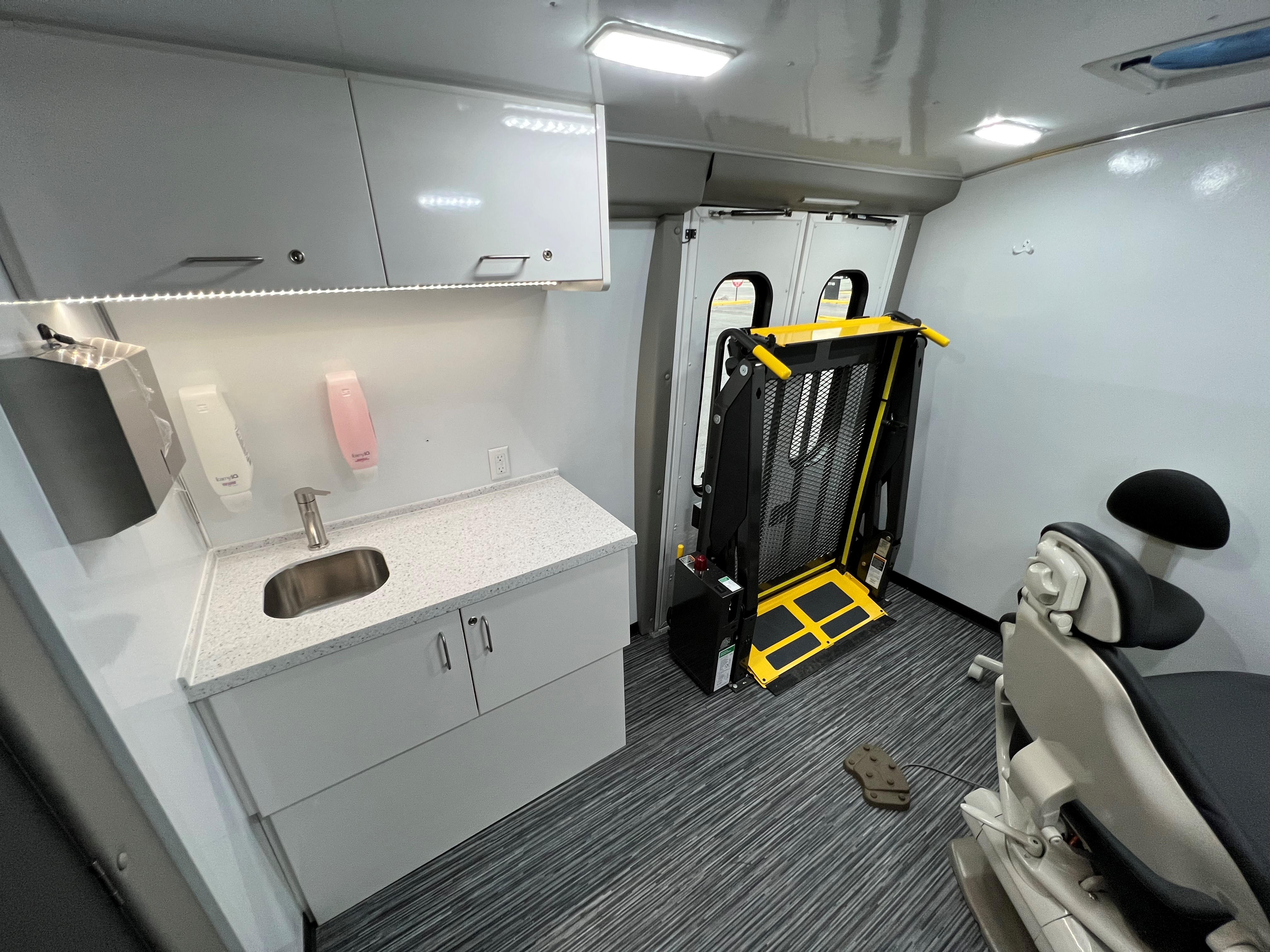

• Braun Century Lift NCL919 ‐ 34" Wide
• Double W/C Lift Door ‐ Deluxe

Safety

• Locking Fuel Door ‐ Deluxe (N/A Transit Chassis)
• LED Brake Light ‐ Center High Mount
• Back Up Alarm
