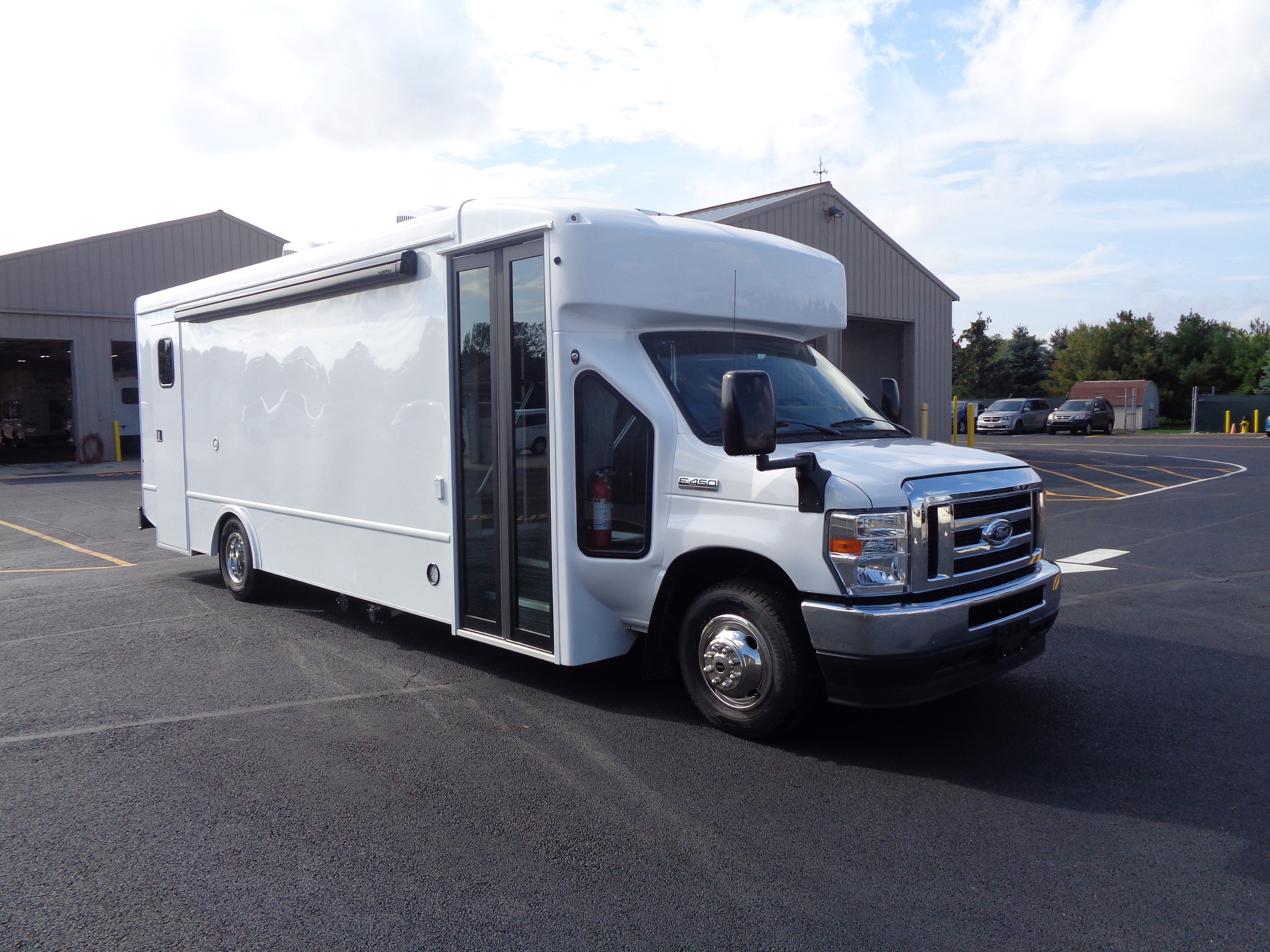

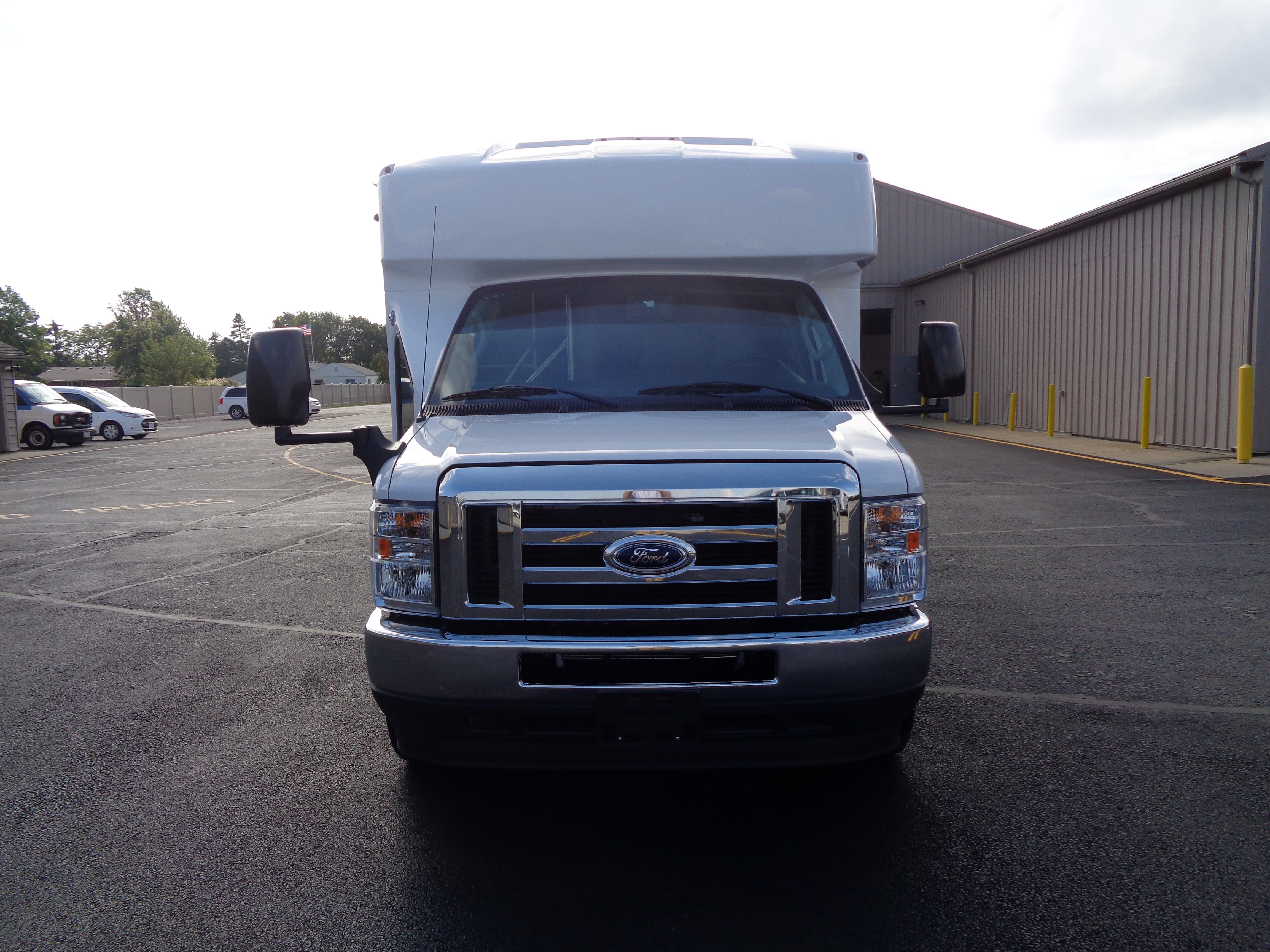

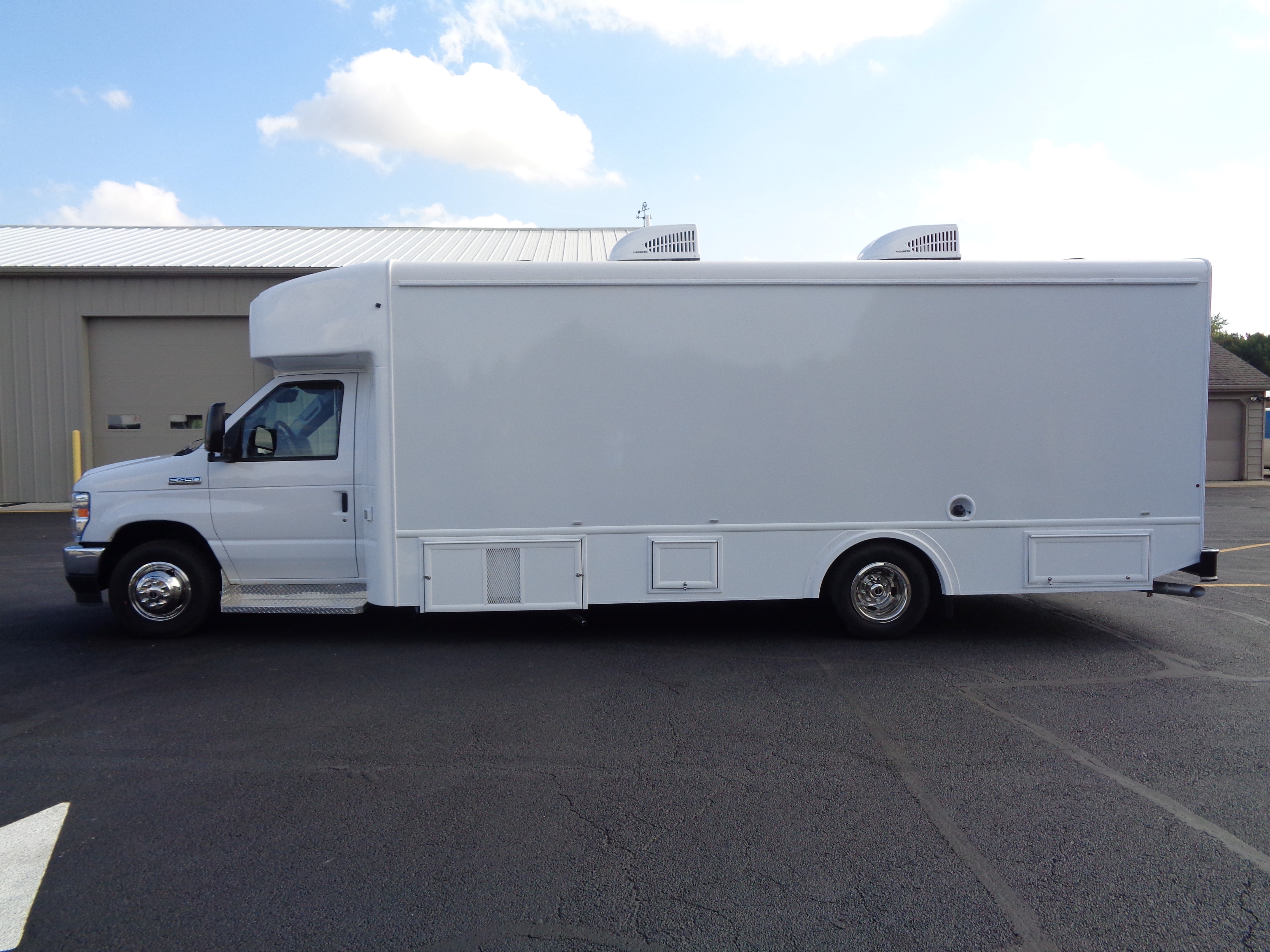

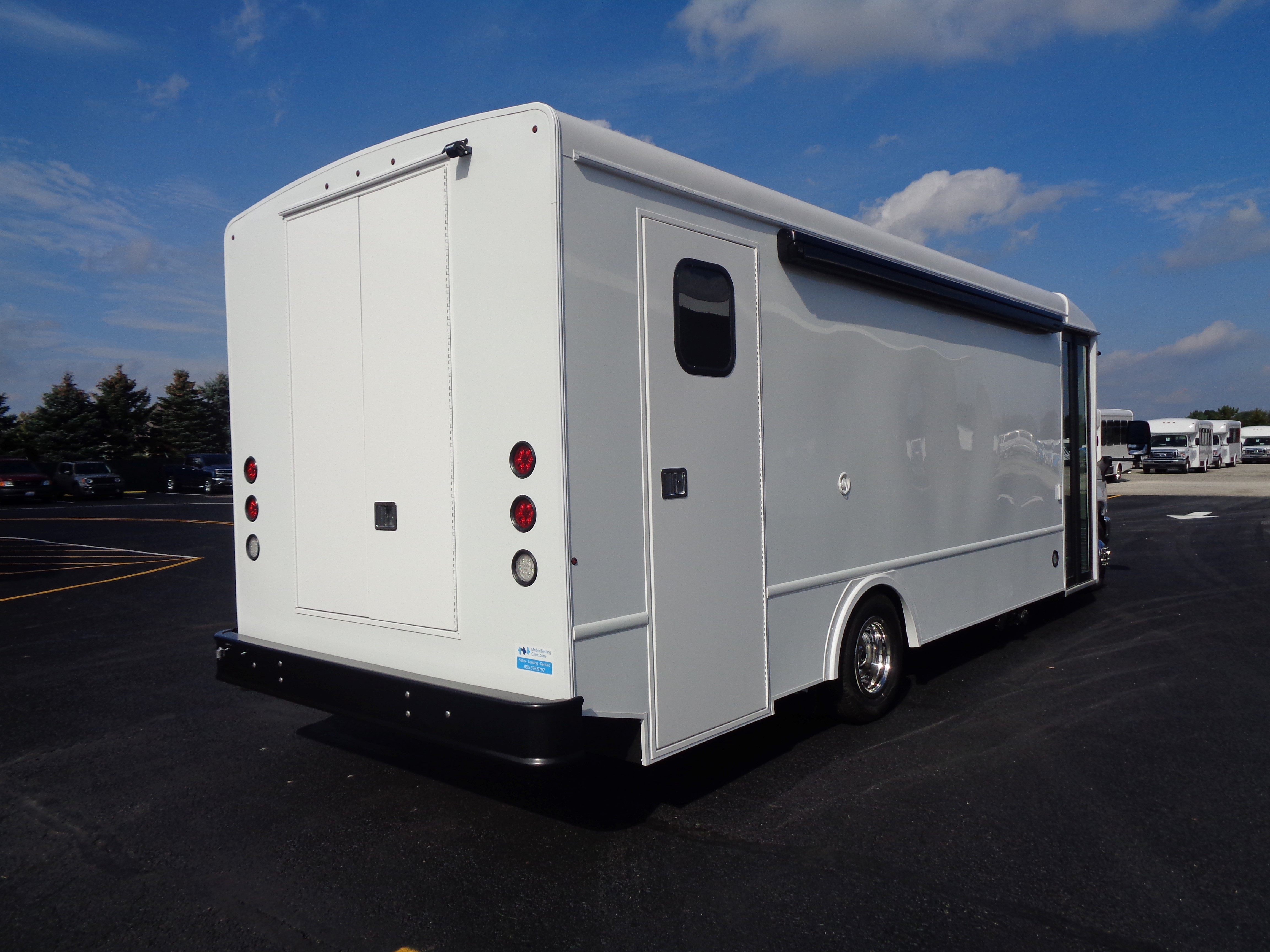

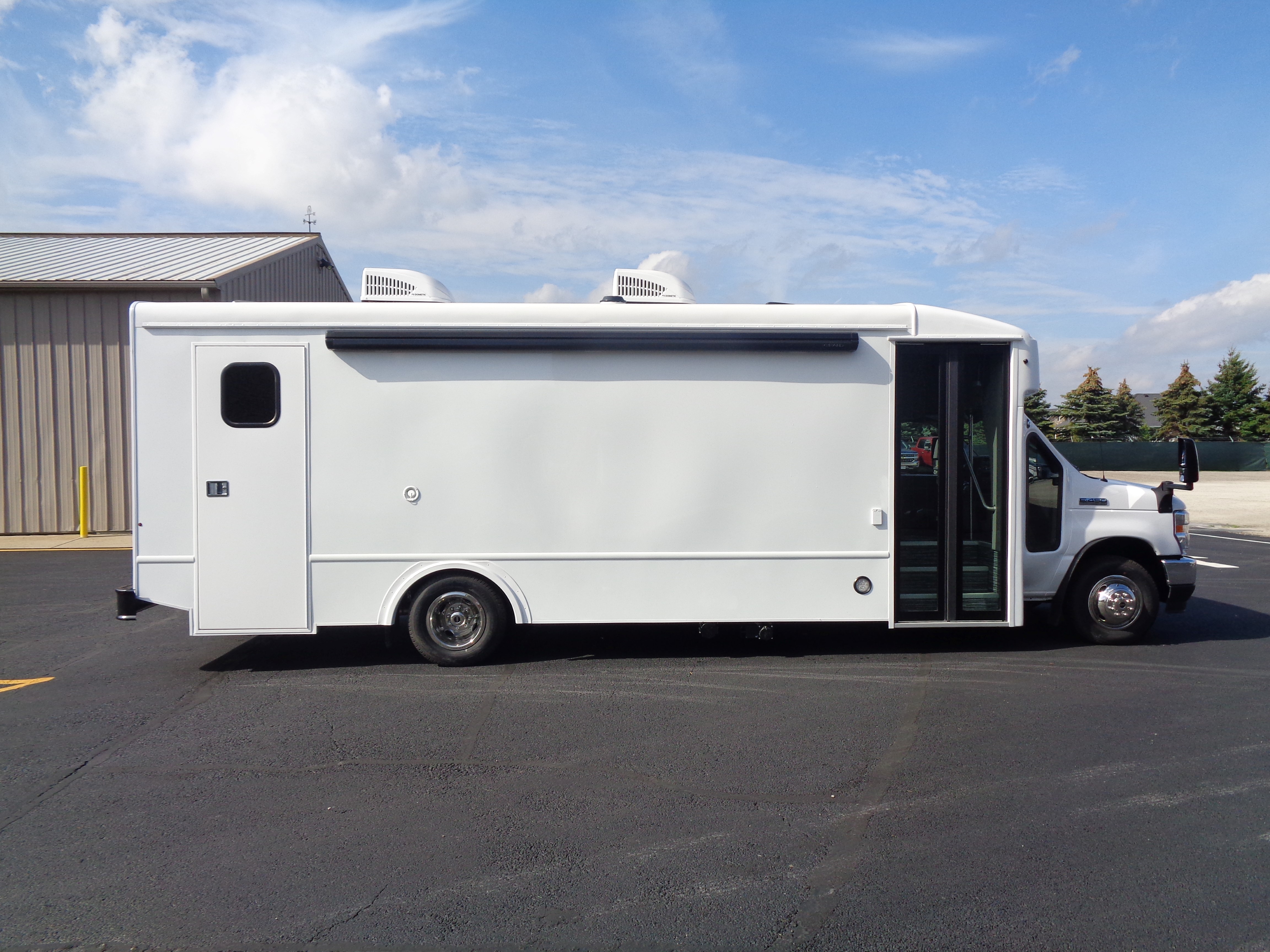

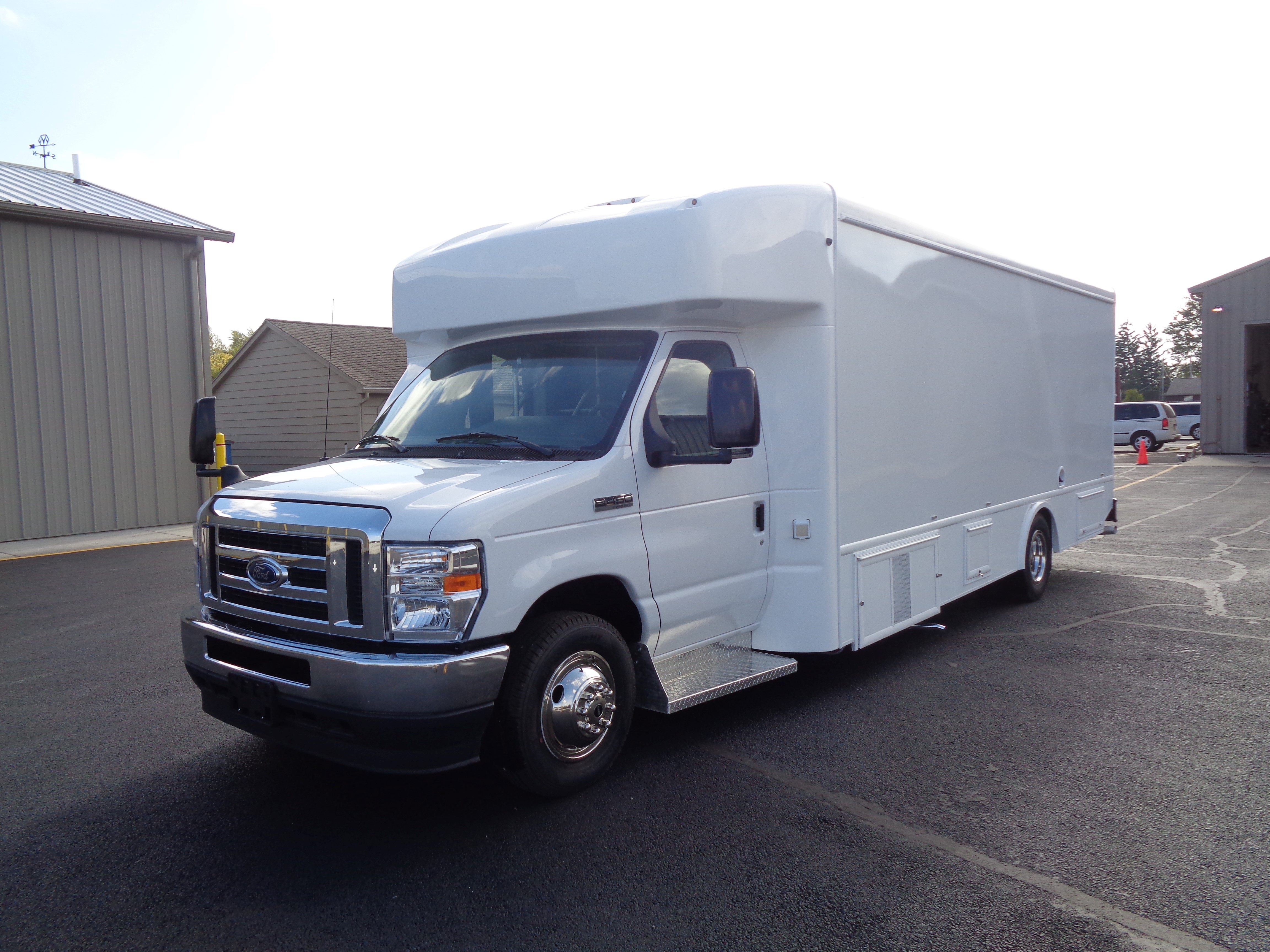

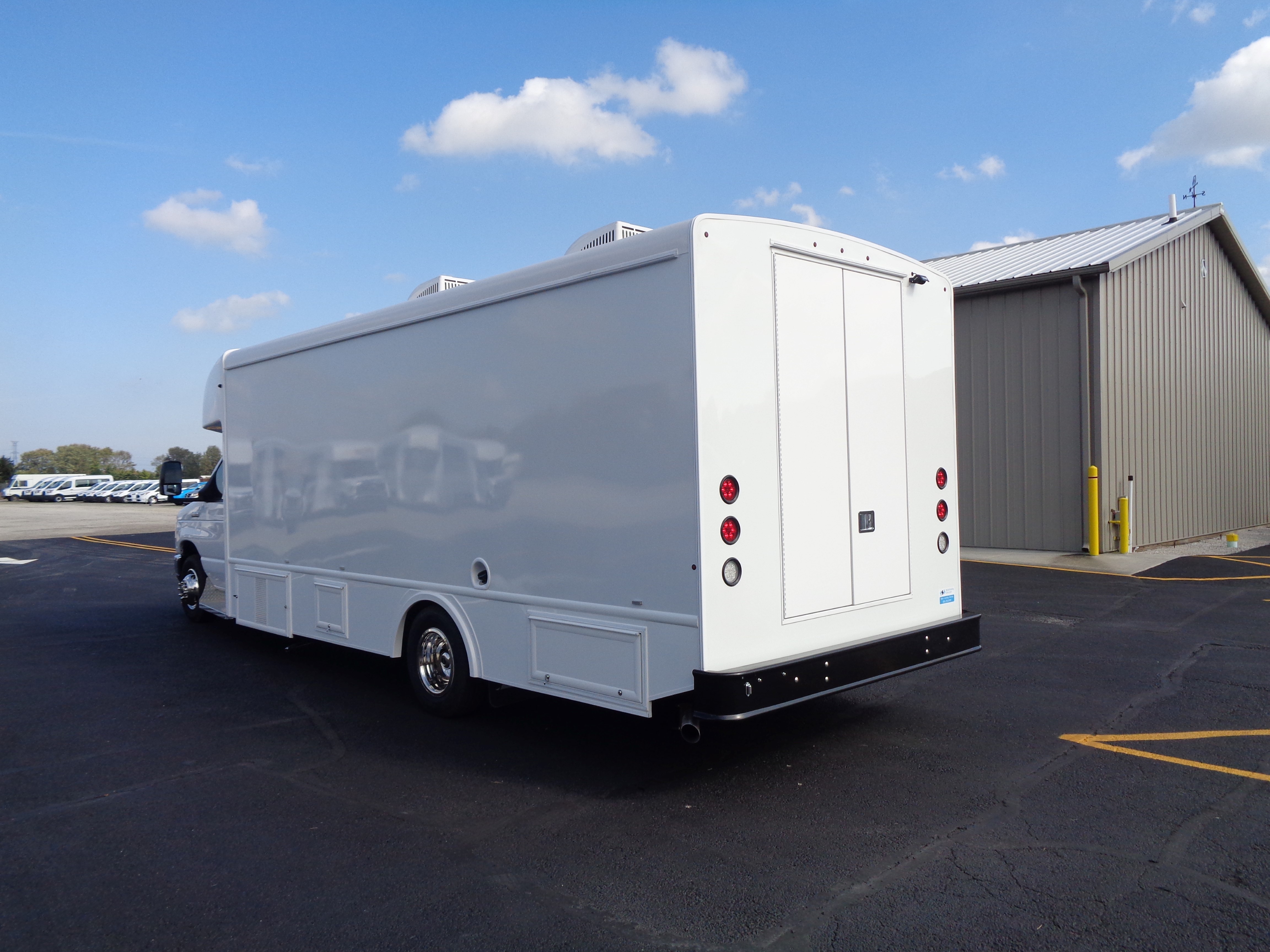

Vehicle Description:

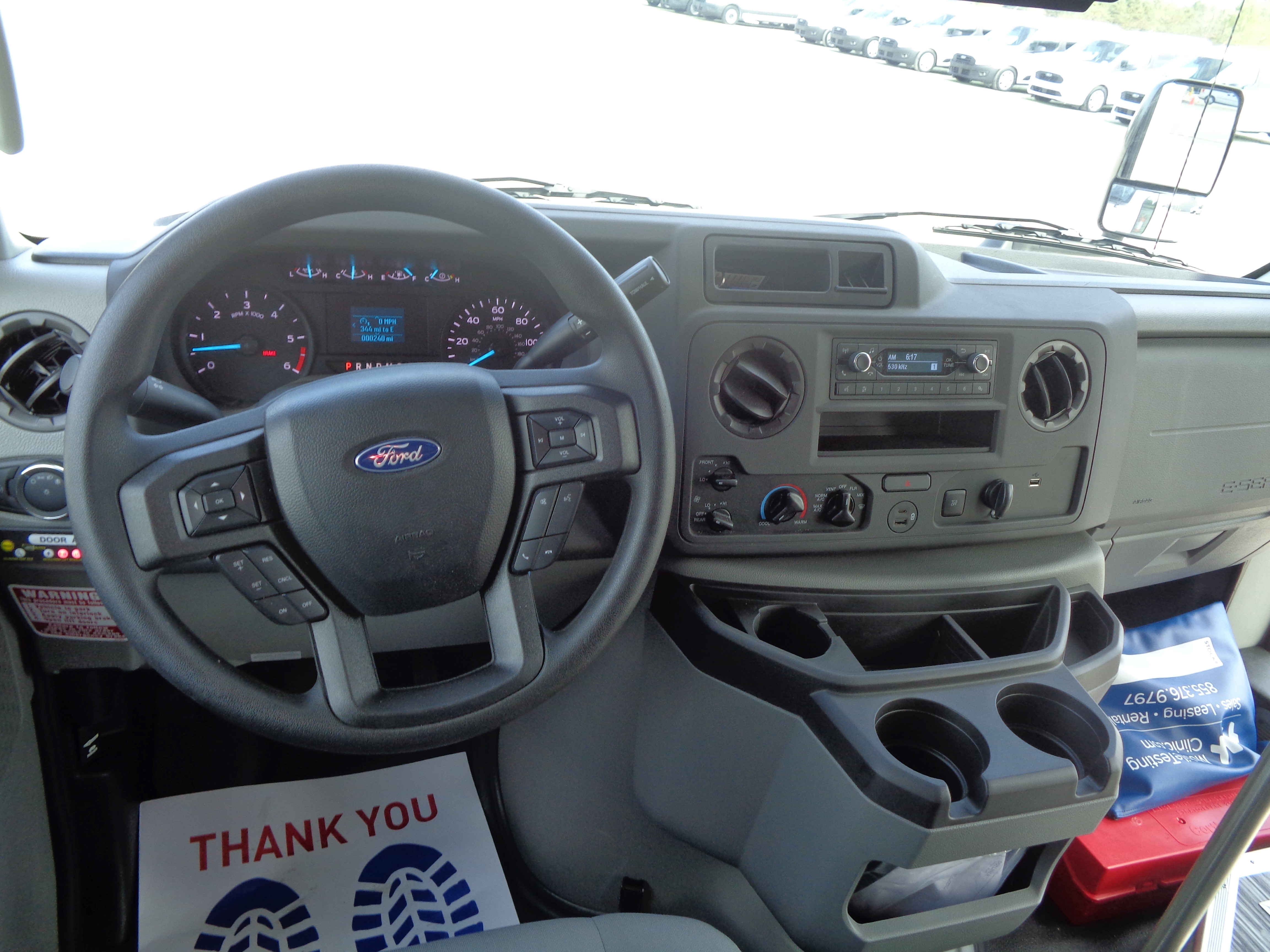

Standard Chassis Equipment

• Ford E‐450 7.3L V8 Gas Engine
• 14,500 GVWR
• 6 Speed Automatic Transmission
• 225/75RX16E Tires
• 50 State Emissions
• Cruise Control
• Rearview Mirror
• Dual Batteries
• 55 Gallon Fuel Tank
• Daytime Running Lights

Standard Body Equipment

• Welded Tubular Steel Cage
• Welded Perimeter Steel Floor Frame Supported by Welded Crossmembers
• Steel Track Mounted in Floors & Sidewalls
• Steel Wheel Well Plates
• Drive Shaft Guards
• Rear Mud Flaps
• Steel Cage Primered w/ Rust Inhibitor
• Underbody Foam Sealed and Undercoated
• 5/8" AdvanTech Subfloor
• Fiberglass Front & Rear Cowls & Fiberglass Composite Exterior Sidewalls
• One‐Piece Pre‐Molded Fiberglass Roof
• Contoured Fiberglass Lower Body Skirts
• 1' Polystyrene Foam Board Insulation
• Entrance Door ‐ Aluminum, Electric Bi‐Fold 29" w/ Tinted Glass
• Tinted A‐Panel Window in Cab
• LED Upper Running /Clearance Lights per FMVSS 108 (5 Amber & 5 Red)
• LED/ Reflective Amber Lower Midship Side Marker Lights (2)
• LED Stop/Tail/Turn Lights Inc. LED/Reflective Red Rear Side Marker Lights (2)
• Red Reflectors (2 at Rear)
• Incandescent Backup Lights & LED License Plate Lights

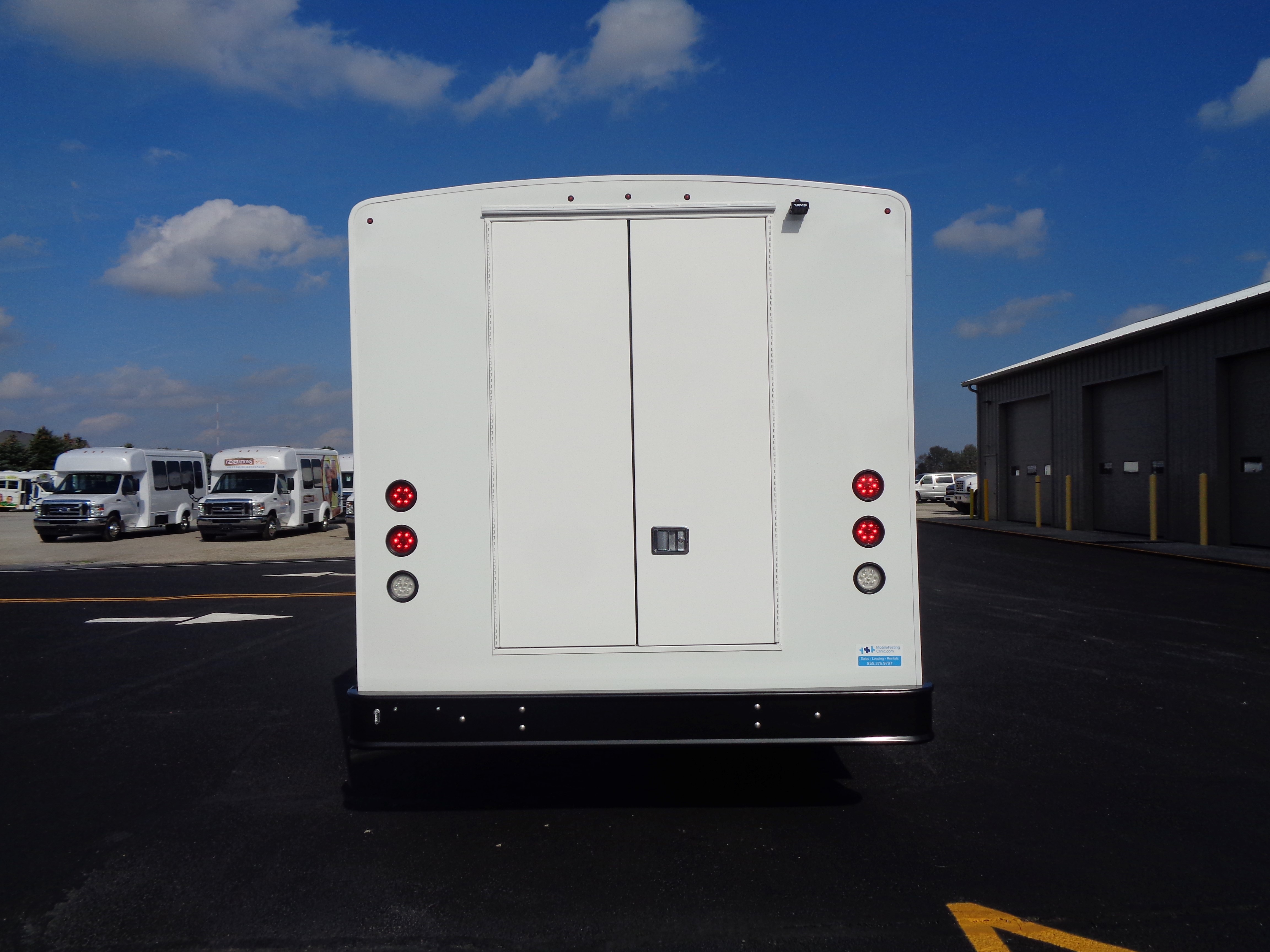

• Heavy‐Duty Steel Powder‐Coated Rear Bumper
• Velvac Exterior Mirrors (L & R)
• 76" Interior Height
• Flat Floor is Standard
• OEM Dash A/C & Heat Standard
• OEM Interior Rear View Mirror
• Durable Bright White Reinforced Fiberglass Ceiling & Sidewalls
• Grab Bar (18") at Right of Entrance Door
• State of the Art Electrical Panel w/ Printed Circuity
• Color‐Coded High Temp GXL Wiring Harness w/Weatherproof Connectors
• Convenience Lighting in Cab & Stepwell

Additional Installed Options

• 13' Awning‐Black
• Gel Hand Sanitizer
• Wheel Liners Stainless Steel E350/450 w/ Valve Ext.
• 13' Awning Arm Set‐Black
• 5 Lb. Extinguisher 3A 40 BC
• (2) Coat Hook
• Curtain Track
• Accucold Medical Grade Refrigerator 5.5 cu ft
• (2) Cab Privacy Curtain 47X64
• Vent Fan Header Compartment
• Ritter 204 Exam Table
• LED Light Strip for upper cabinets
• (2) Sharps Disposable System
• Key Lock Box
• Hand Sanitizer
• Blood Draw Chair
• (2) Floor Wall Heater 1000W 120V
• Door Stopper‐Dome
• First Aid Kit ‐ 24 Unit
• Sewer Hose
• Sewer Hose Carrier 26"
• Triangle Reflectors
• Hand Wash
• (2) Curtain Hold Back Strap

Chassis

• Chassis Stretch 158" OEM to 206" (Ford E‐Series)

Climate Control

• (2) Roof Vent ‐ Fantastic 4000 Series, Fan 14"
• (2) Roof A/C 15,000 BTU
• (2) Roof A/C 15,000 BTU
• (2) Heat Coil Added to A/C System

Doors/Windows/Mirrors

• Entrance Door, Electric ‐ Built In Cab, 29" (Standard)
• Interior Door Switch
• Kubota Key Switch ‐ Exterior
• 1520 Series Sedan Door in Body w/Window & Stepwell

Electrical

• Wire One 110v Outlet 12" off Floor, To be hot at all times.
• (2) LED Dome Lights 4" x 11" (12 Lights Total)
• (2) 12v Wire Circuit
• Inverter Wired Hot At All Times with Manual Shut Off
• Body Disconnect Switch
• Terra Transit Pullout Battery Tray (N/A Transit Chassis)
• (6) (2) Outlets Curbside, (3) Outlets Roadside, (1) Near Exam Bed, (1) At Check In Desk
• RVS Backup Camera ‐ 7" Mirror Monitor

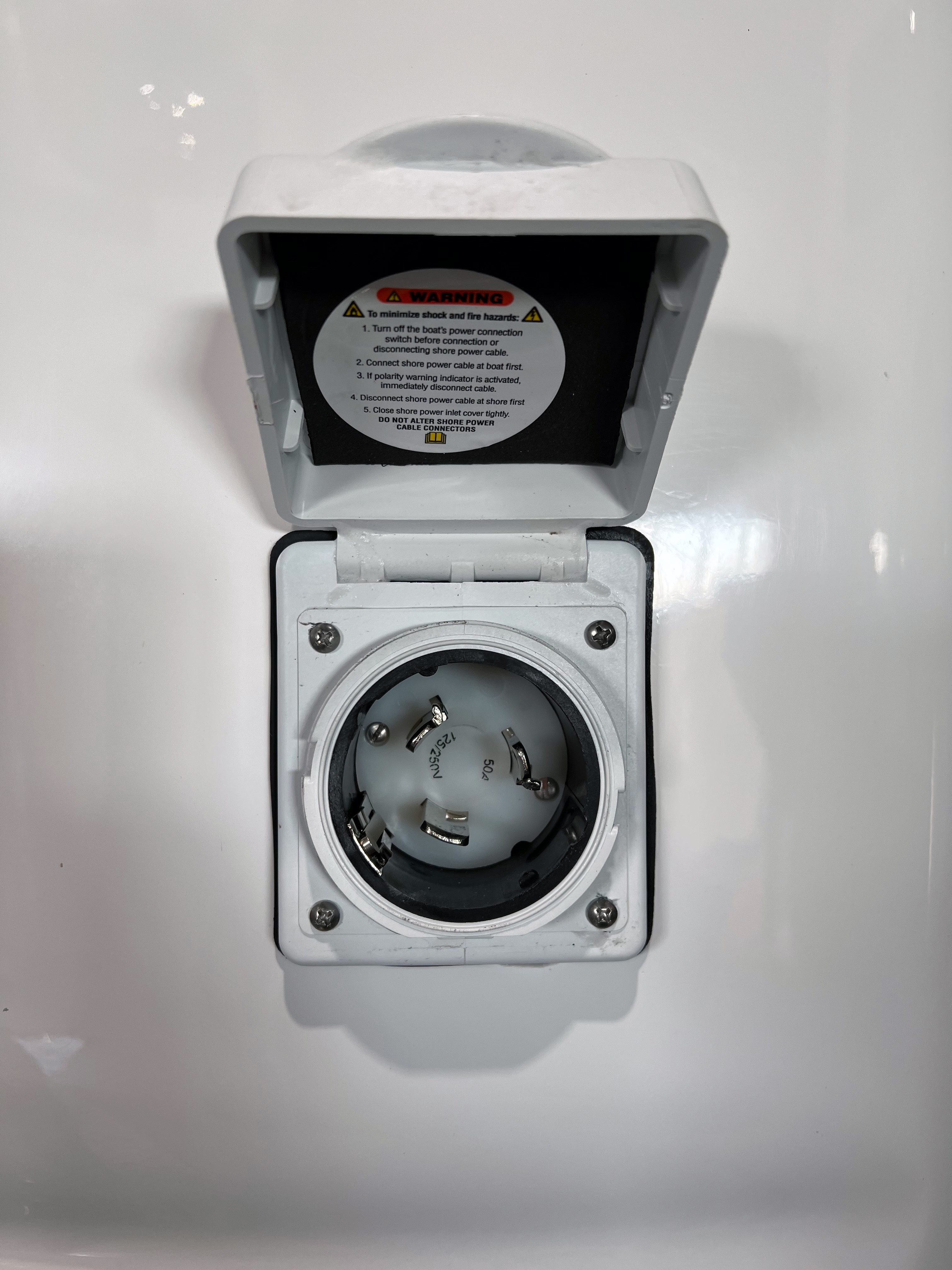

• 110v Exterior GFI Outlet
• (2) Interior Switch for Dome Lights Near Passenger Entrance Door
• (2) Pull 110v 12 Guage SL Cable Coiled up to Front Bulkhead for Rooftop A/C
• Heat Kit for Bathroom Waste Tank

Exterior

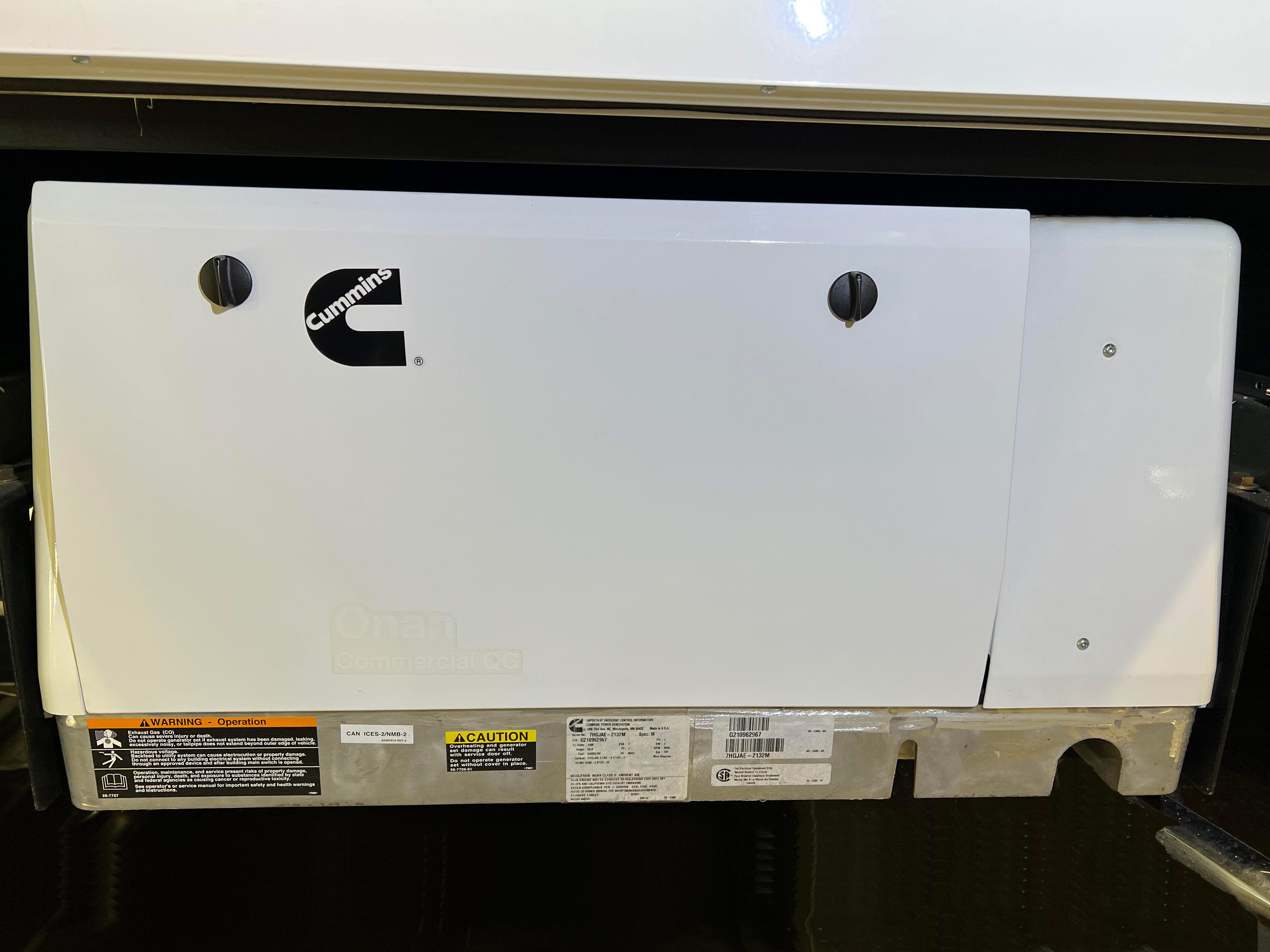

• Generator Prep
• Generator Exclosure Kit, Roadside Behind Driver's Seat
• Running Board ‐ Wide Diamond Plate (Driver's Side)

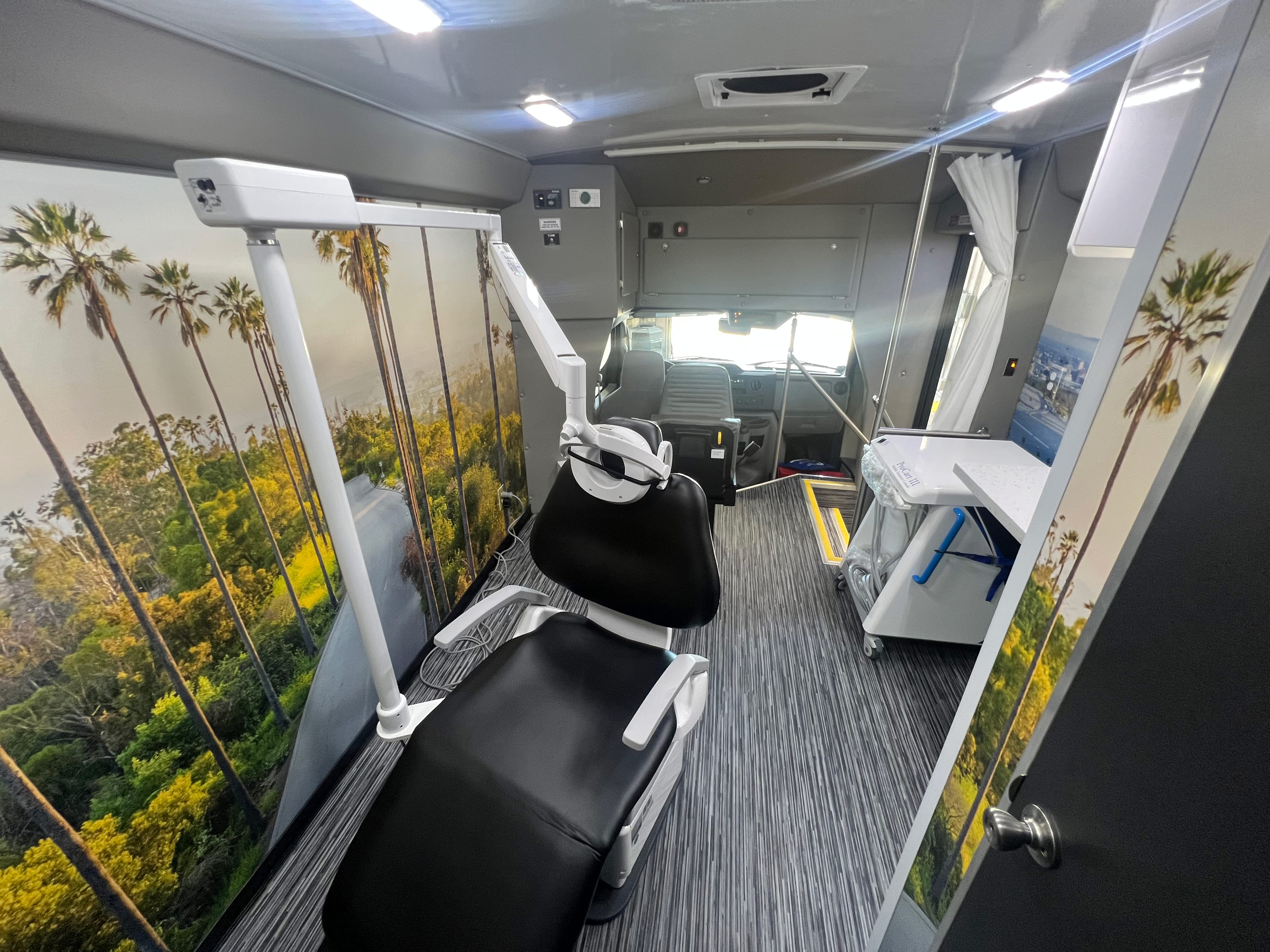

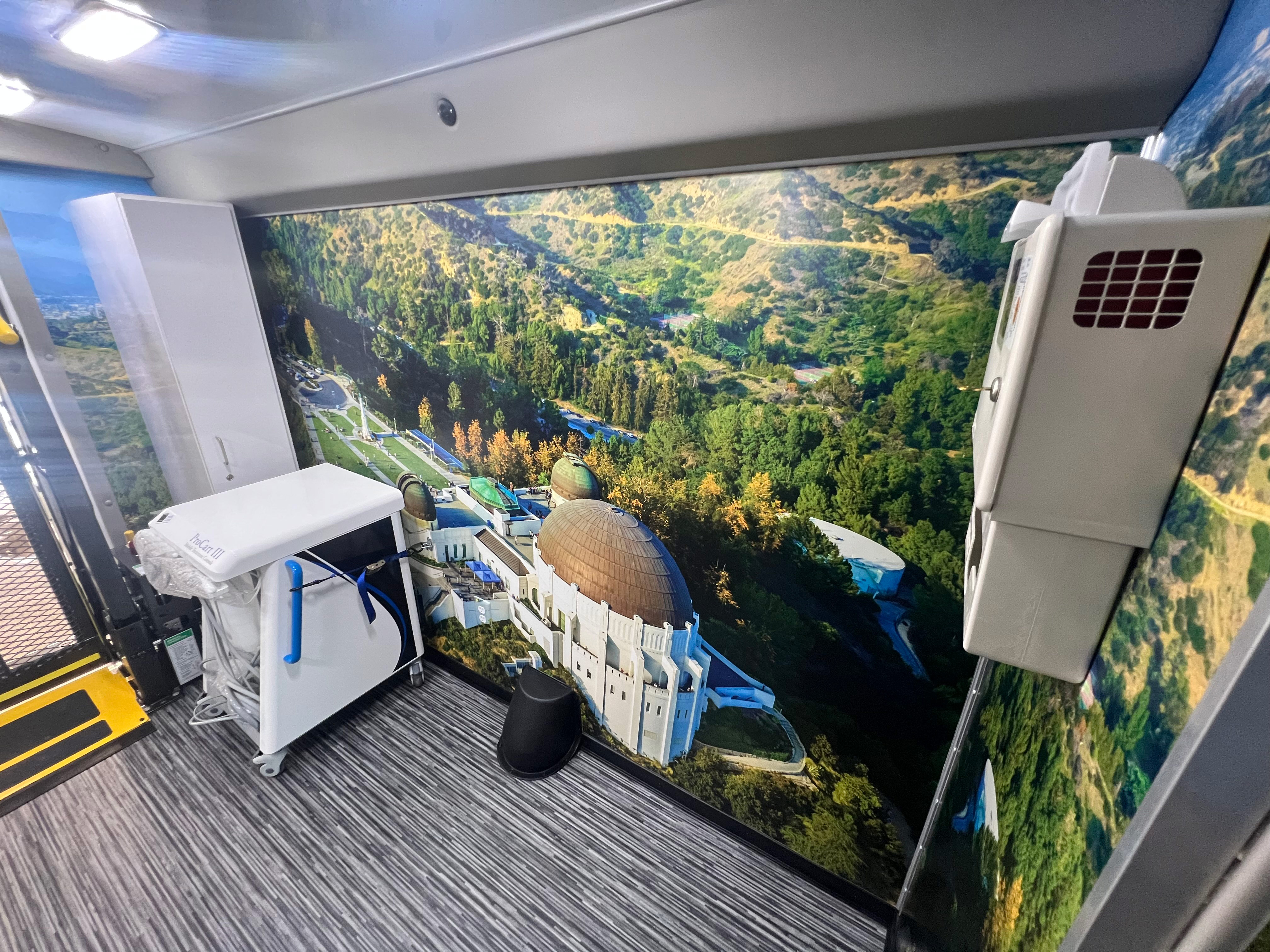

Interior

• Additional Steel Strapping/Backer in Sidewall Curbside for Overhead Cabinets
• Smooth Fiberglass Interior Walls

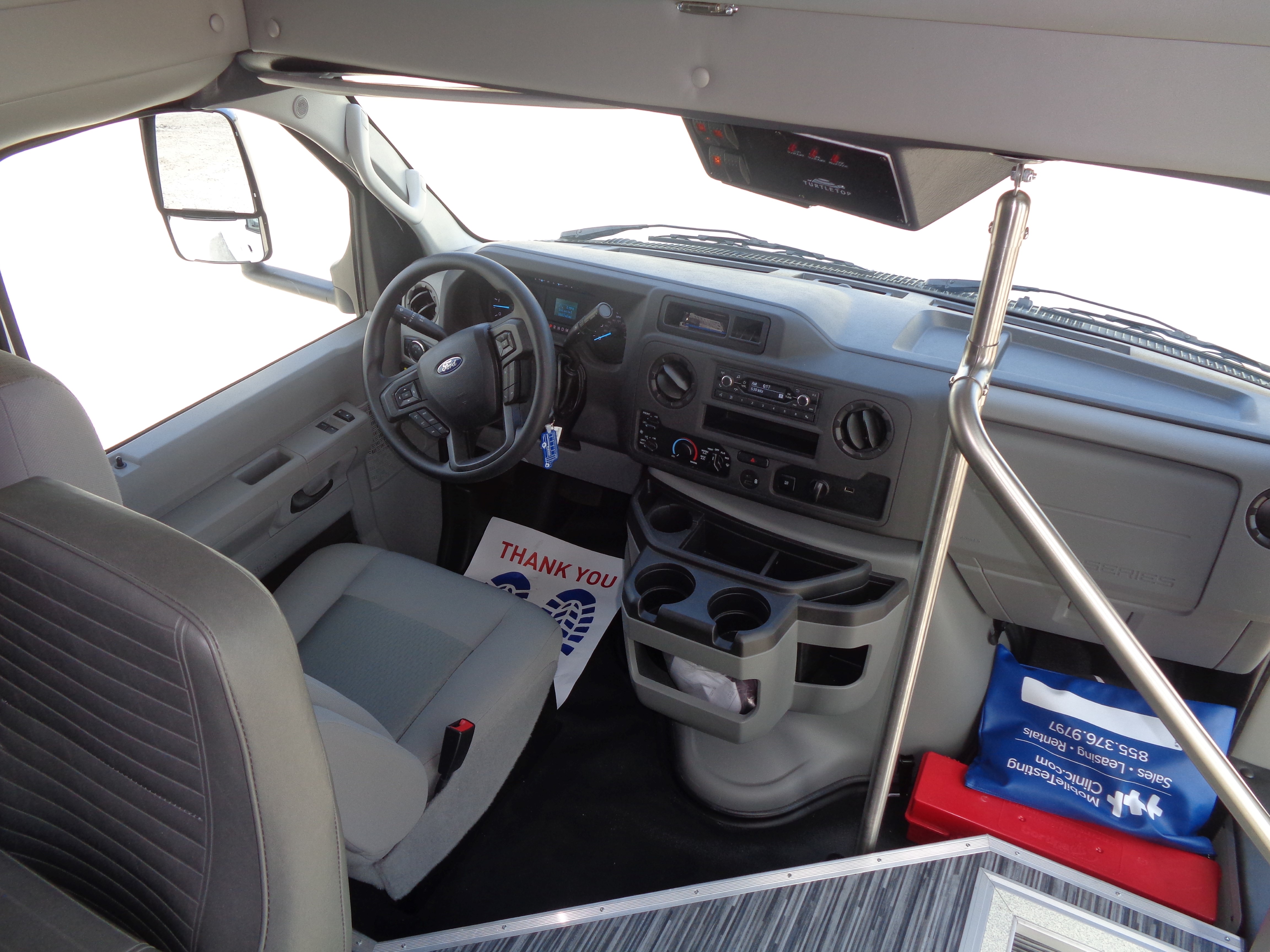

• Stanchion Pole w/Assist R.H. Entry
• USR Belt, Single ‐ Per Passenger
• Flip Seat ‐ Featherweight, Single Mid‐Back 17" w/ Lap Belts
• Two Tank Monitoring System
• Exterior Skirt Storage (36"w x 16"h x 21"d)
• Storage Compartment ‐ Over Driver
• Altro Faux Wood Flooring Upgrade (Iron Bamboo)
• White Fiberglass Wall with Door
• Bathroom Kit: Toilet, SS Sink, Mirror, Trash Can, Paper Towel & TP Dispenser

Paratransit Equipment

• Wheelchair Lift Belt

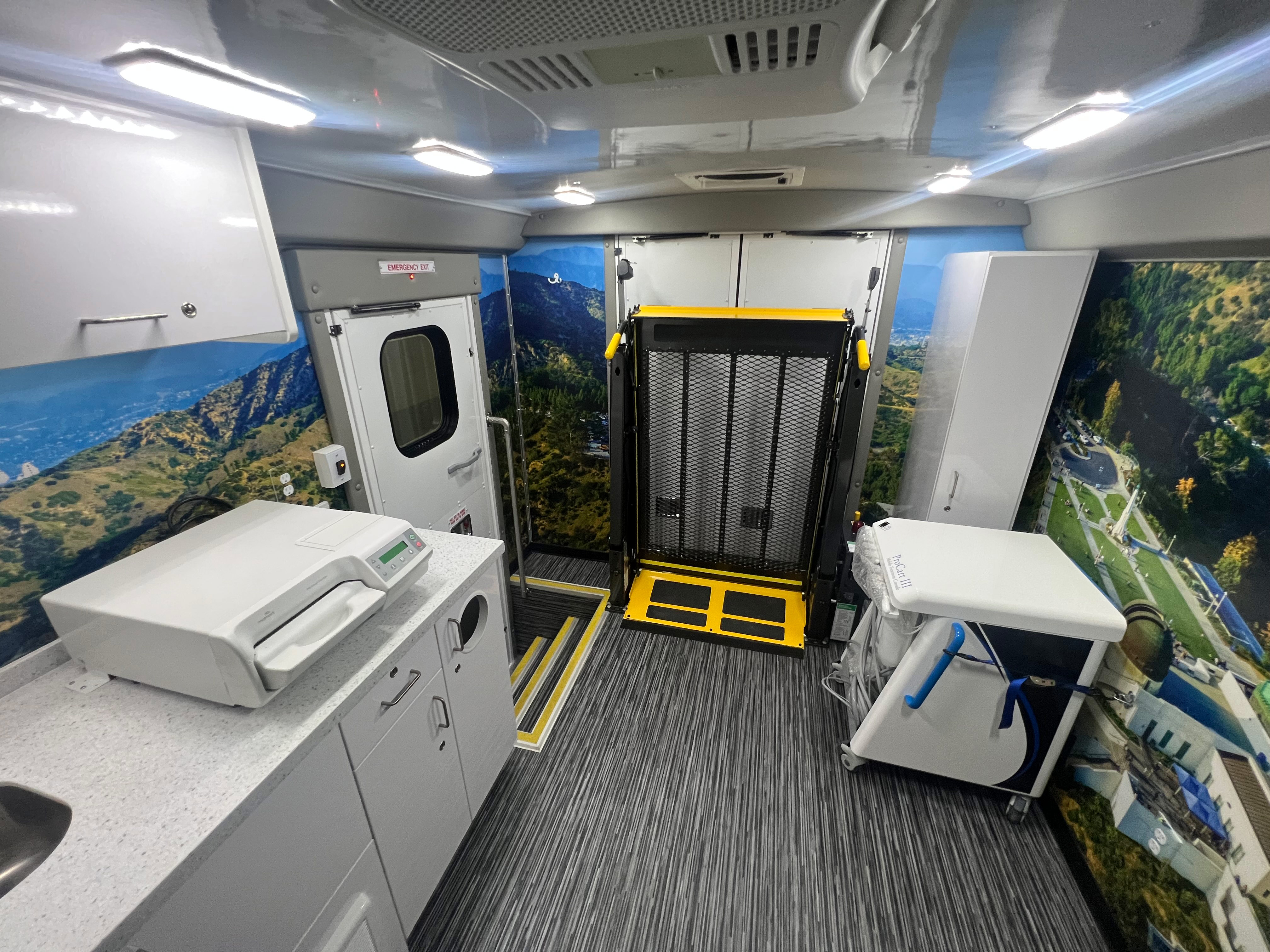

• Braun NCL1000LB3454 1000# Lift
• Double W/C Lift Door ‐ Deluxe
