Two Exam Room & Lab Mobile Clinic ADA

Vehicle Summary:

Group: F
Total Length: 30'
Chassis: Ford E450
Capacity: 1 Passenger with 1 W/C Position & Driver
GVWR: 14,500#
Body: Mobile Medical Clinic
Engine: 7.3L Gas
Sell Price: Call

360° Tour:

Vehicle Description:

Standard Chassis Equipment
  • Ford E‐450 7.3L Premium V8 Gas Engine
  • 14,500 GVWR
  • 6 Speed Automatic Transmission
  • 225/75RX16E Tires
  • Power Windows & Power Locks
  • 50 State Emissions
  • Cruise Control
  • Dual Batteries
  • 55 Gallon Fuel Tank
  • Daytime Running Lights
  • AM/FM Clock Radio w/4 Speakers
  • Engine Block Heater
Standard Body Equipment
  • Welded Tubular Steel Cage
  • Welded Perimeter Steel Floor Frame Supported by "G" Shape Crossmembers
  • Steel Track Mounted in Floors & Sidewalls
  • Steel Wheel Well Plates
  • Drive Shaft Guards
  • Rear Mud Flaps
  • Steel Cage Primered w/Rust Inhibitor
  • Underbody Foam Sealed and Undercoated
  • 5/8" AdvanTech Subfloor
  • Fiberglass Front & Rear Cowls & Fiberglass Composite Exterior Sidewalls
  • One‐Piece Pre‐Molded Fiberglass Roof
  • Contoured Fiberglass Lower Body Skirts
  • 1' Polystyrene Foam Board Insulation
  • Tinted Solid Windows (28.5 x 34.5")
  • Tinted Solid Side Egress Windows Adequate to Meet FMVSS 217
  • Entrance Door ‐ Manual Bi‐Fold 29" w/ Tinted Glass
  • Tinted A‐Panel Window in Cab
  • LED Upper Running /Clearance Lights per FMVSS 108 (5 Amber & 5 Red)
  • LED/ Reflective Amber Lower Midship Side Marker Lights (2)
  • LED Stop/Tail/Turn Lights Inc LED/Reflective Red Rear Side Marker Lights (2)
  • Red Reflectors (2 at Rear)
  • Incandescent Backup Lights & LED License Plate Lights
  • Heavy‐Duty Steel Powder‐Coated Rear Bumper
  • Velvac Exterior Mirrors (L & R)
  • 76" Interior Height
  • Flat Floor is Standard
  • OEM Dash A/C & Heat Standard
  • OEM Interior Rear View Mirror
  • Smooth Black Rubber Floor Under Seats
  • Ribbed Aisle (Black Rubber)
  • Durable Bright White Reinforced Fiberglass Ceiling & Sidewalls
  • Modesty Panel & Angled hand Rail at Left of Entrance Door
  • Grab Bar (18") at Right of Entrance Door
  • Modesty Panel & Stanchion Behind the Driver
  • State of the Art Electrical Panel w/ Printed Circuity
  • Color‐Coded High Temp GXL Wiring Harness w/Weatherproof Connectors
  • Convenience Lighting in Cab & Stepwell
  • Incandescent Dome Lights (Side & Ceiling)
Additional Installed Options
  • 9' Power Awning
  • Sewer Hose
  • Key Lock Box
  • Sewer Hose Carrier 26"
  • Triangle Reflectors
  • Curtain Track
  • WIFI
  • (2) Cab Privacy Curtain 47X64
  • (3) Door Stopper‐Dome
  • 5.5 cu ft Refrigerator
  • (2) Coat Hook
  • (2) Baggage Lock 1 3/8" Keyed
  • Full Wheel Alignment ‐ Castor & Camber
  • 5 Lb. Extinguisher 3A 40 BC
  • Gel Hand Sanitizer
  • (2) Ritter 204 Exam Table
  • Wheel Liners Stainless Steel E350/450 w/Valve Ext.
  • (2) Curtain Hold Back Strap
  • First Aid Kit ‐ 24 Unit
Chassis
  • Chassis Mod ‐ WB Stretch, 158" OEM to 208"
Climate Control
  • (3) Roof Vent, Fantastic 4000 Series with 14" Fan
  • (2) Roof Top A/C, 15,000 BTU, Cool Only
  • (2) Heat Coil Added to Each A/C System
Doors/Windows/Mirrors
  • H.D. Sedan Style Entry Door w/Stepwell‐In‐Body
  • (2) Egress Bay Window 18 7/8" x 28 5/8" with Bottom T‐Slider
Electrical
  • Group 31 Hybrid Batteries
  • RVS Backup Camera ‐ 7" Mirror Monitor
  • (2) Pull 110v 14 Guage SL Cable for Roof Top A/C
  • (3) Additional 4" x 11" LED Lights
  • Interior Switch for Dome Lights
  • Replace Standard Dome Lights with 4" x 11" LED Lights
  • Generator Enclosure Kit
  • (9) Pull 110v 14 Guage SL Cable for Specified Locations
  • Generator Prep Kit
Exam Specific Electrical
  • (2) 15K BTW Dometic Rooftop A/C w/Heat Strips
  • 30' 50 AMP Shore Power Cord w/Inlet Plug Wired to Transfer Switch
  • 75 AMP 110v/12v Power Converter/Charger
  • Onan QG7000 120v Generator w/Remote Start, Hour Meter & Exhaust w/Chrome Tip
  • Refrigerator Recepts Power Converter/Charger
  • 50 AMP Breaker Box
  • 110v Transfer Switch
  • 110 Volt Electrical Package
  • Resettable Manual Breakers
Exterior
  • Running Board ‐ Wide Diamond Plate (Pair)
  • Velvac Mirrors ‐ Power Remote w/Heat
Front Exam Room
  • Corian Countertops
  • Custom Base Cabinets & Upper Locking Cabinets
Interior
  • (2) Exterior Skirt Storage 36"w x 22"d x 20"h with Door
  • Altro Faux Wood Flooring Upgrade, No Coving (Iron Bamboo)
  • Two Tank Monitoring System
  • Enlarged Bathroom Tank Package
  • Bathroom Kit
  • Front Bulkhead Storage Area
  • (2) Gray Vinyl Padded/FRP Wall with Door
  • Smooth Fiberglass Interior Sidewalls

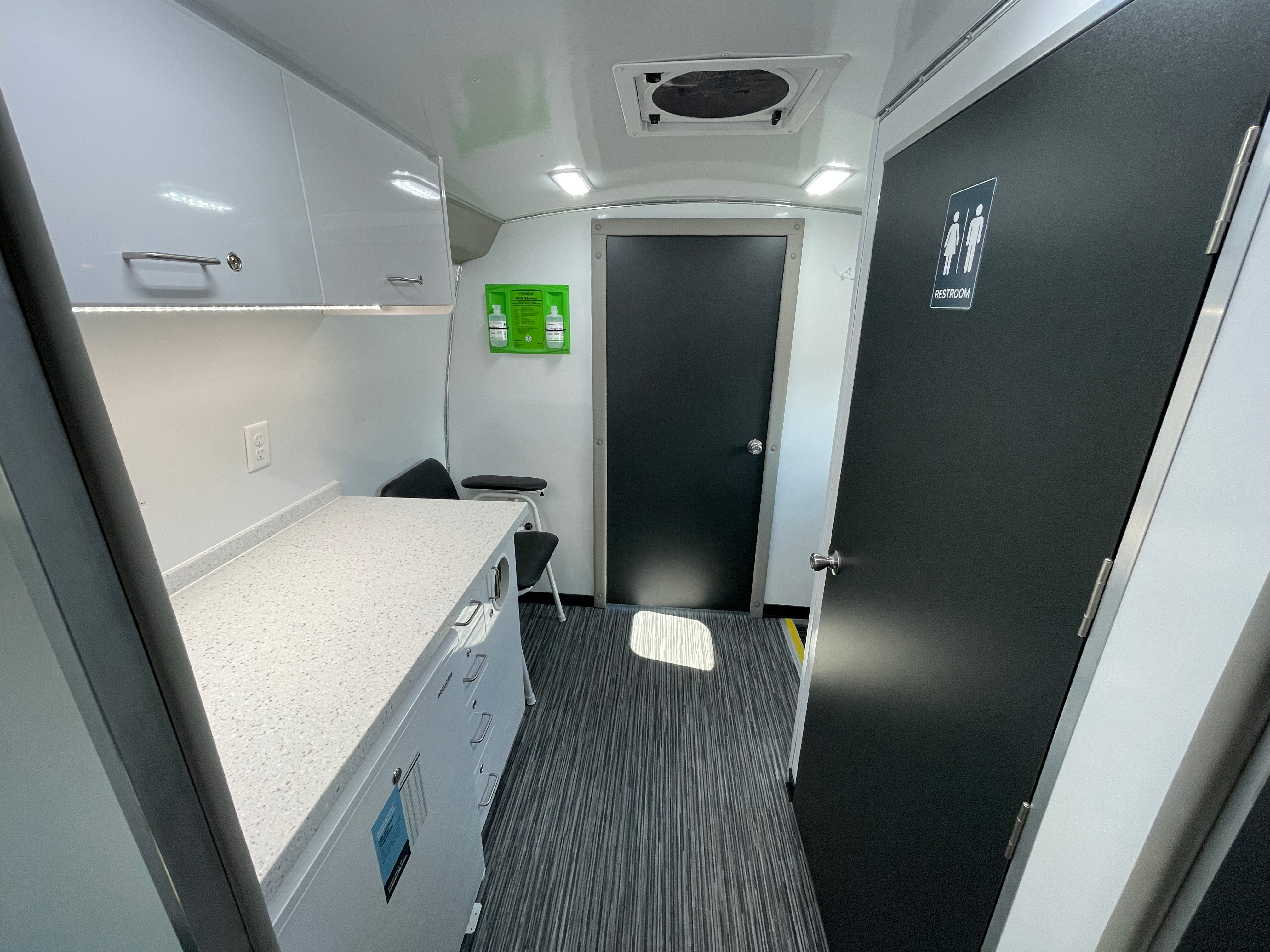

Middle Room
  • Custom Base Cabinets & Upper Locking Cabinets
  • Restroom
  • Lab Area with Corian Countertops
  • Custom Bench in Waiting Area
Paratransit Equipment
  • Double W/C Lift Door ‐ Deluxe
  • Braun Century Lift NCL919, 34" Wide
Rear Exam Room
  • Corian Countertops
  • Custom Base Cabinets & Upper Locking Cabinets
Safety
  • LED Brake Light ‐ Center High Mount
  • Locking Fuel Door ‐ Deluxe (N/A Transit Chassis)
  • Back Up Alarm
