Two Exam Room ADA

Vehicle Summary:

Group: E-1
Total Length: 28'

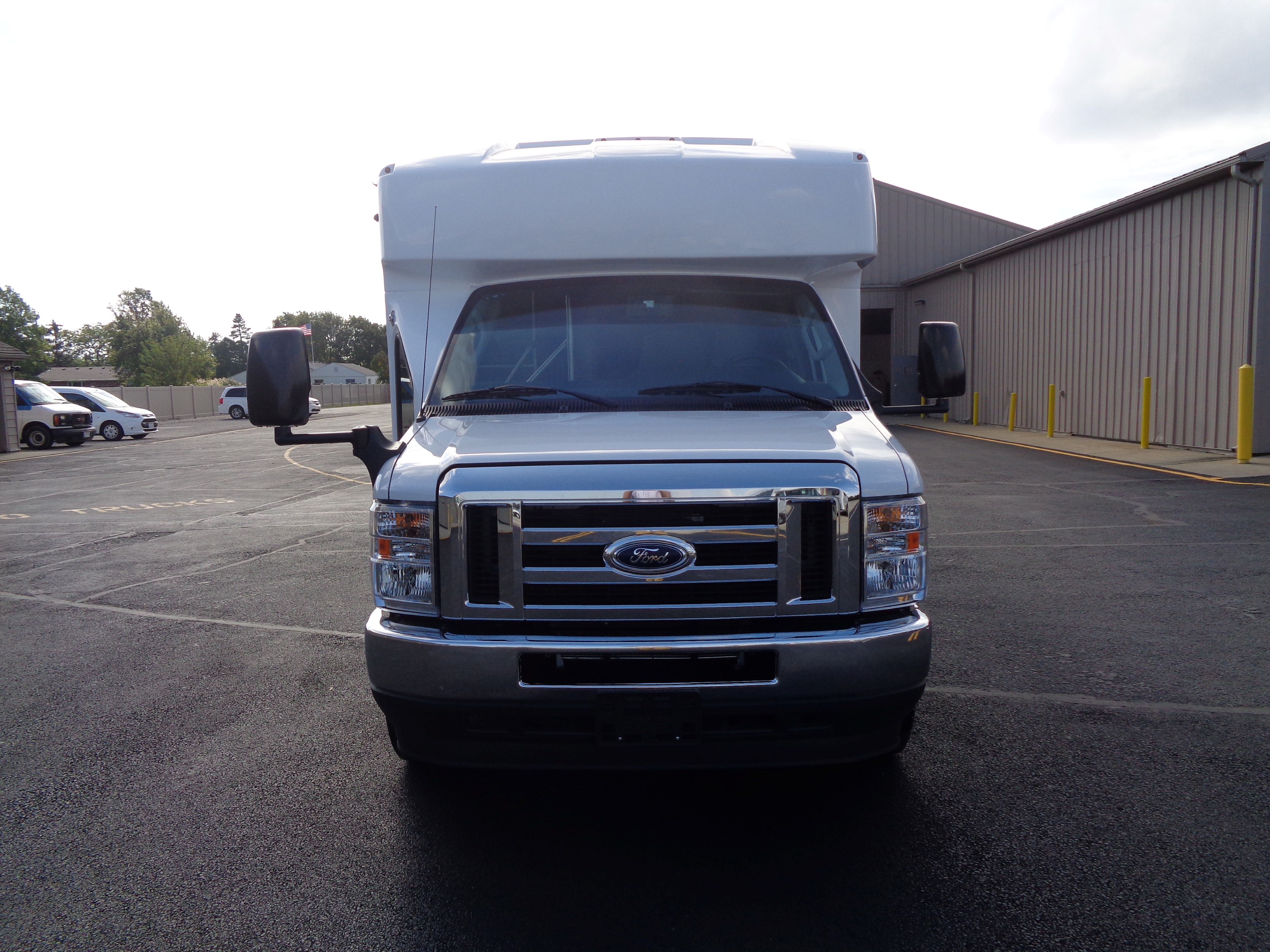

Chassis: Ford E450
Capacity: 3 Passenger & Driver
GVWR: 14,500#
Body: Mobile Medical Clinic
Engine: 7.3L Gas
Sell Price: Call

360° Tour:

Vehicle Description:

Standard Chassis Equipment
  • Ford E‐450 7.3L V8 Gas Engine
  • 14,500 GVWR
  • 6 Speed Automatic Transmission
  • 225/75RX16E Tires
  • 50 State Emissions
  • Cruise Control
  • Rearview Mirror
  • Dual Batteries
  • 55 Gallon Fuel Tank
  • Daytime Running Lights
Standard Body Equipment
  • Welded Tubular Steel Cage
  • Welded Perimeter Steel Floor Frame Supported by Welded Crossmembers
  • Steel Track Mounted in Floors & Sidewalls
  • Steel Wheel Well Plates
  • Drive Shaft Guards
  • Rear Mud Flaps
  • Steel Cage Primered w/ Rust Inhibitor
  • Underbody Foam Sealed and Undercoated
  • 5/8" AdvanTech Subfloor
  • Fiberglass Front & Rear Cowls & Fiberglass Composite Exterior Sidewalls
  • One‐Piece Pre‐Molded Fiberglass Roof
  • Contoured Fiberglass Lower Body Skirts
  • 1' Polystyrene Foam Board Insulation
  • Entrance Door ‐ Aluminum, Electric Bi‐Fold 29" w/ Tinted Glass
  • Tinted A‐Panel Window in Cab
  • LED Upper Running /Clearance Lights per FMVSS 108 (5 Amber & 5 Red)
  • LED/ Reflective Amber Lower Midship Side Marker Lights (2)
  • LED Stop/Tail/Turn Lights Inc. LED/Reflective Red Rear Side Marker Lights (2)
  • Red Reflectors (2 at Rear)
  • Incandescent Backup Lights & LED License Plate Lights
  • Heavy‐Duty Steel Powder‐Coated Rear Bumper
  • Velvac Exterior Mirrors (L & R)
  • 76" Interior Height
  • Flat Floor is Standard
  • OEM Dash A/C & Heat Standard
  • OEM Interior Rear View Mirror
  • Durable Bright White Reinforced Fiberglass Ceiling & Sidewalls
  • Grab Bar (18") at Right of Entrance Door
  • State of the Art Electrical Panel w/ Printed Circuity
  • Color‐Coded High Temp GXL Wiring Harness w/Weatherproof Connectors
  • Convenience Lighting in Cab & Stepwell
Additional Installed Options
  • Diagnostic Complete Wall Unit
  • Sewer Hose
  • Sewer Hose Carrier 26"
  • 13' Power Awning w/ LED lights
  • (2) Gel Hand Sanitizer
  • Blood Draw Chair
  • (2) Hand Wash
  • (2) Floor Wall Heater 1000W 120V
  • Hepa Filter Honywell Air Purifier
  • (2) Coat Hook
  • LED Light Strip for upper cabinets
  • 19" Monitor for Telehealth
  • Accucold Medical Grade Refrigerator 5.5 cu ft
  • Wind Sensor For Awning
  • Triangle Reflectors
  • Paper Towels
  • Custom Cabinetry High Gloss White
  • WIFI Sim7 Combo 4Gxelte w/Sim Card Slot
  • 5 Lb. Extinguisher 3A 40 BC
  • Wheel Liners Stainless Steel E350/450 w/ Valve Ext.
  • Sharps Disposable System
  • Key Lock Box ALL KEYS KEYED SAME
  • Exterior GFCI Outlet
  • Rear Room Sink Plumbed to gray water tank
  • Vent Fan Header Compartment

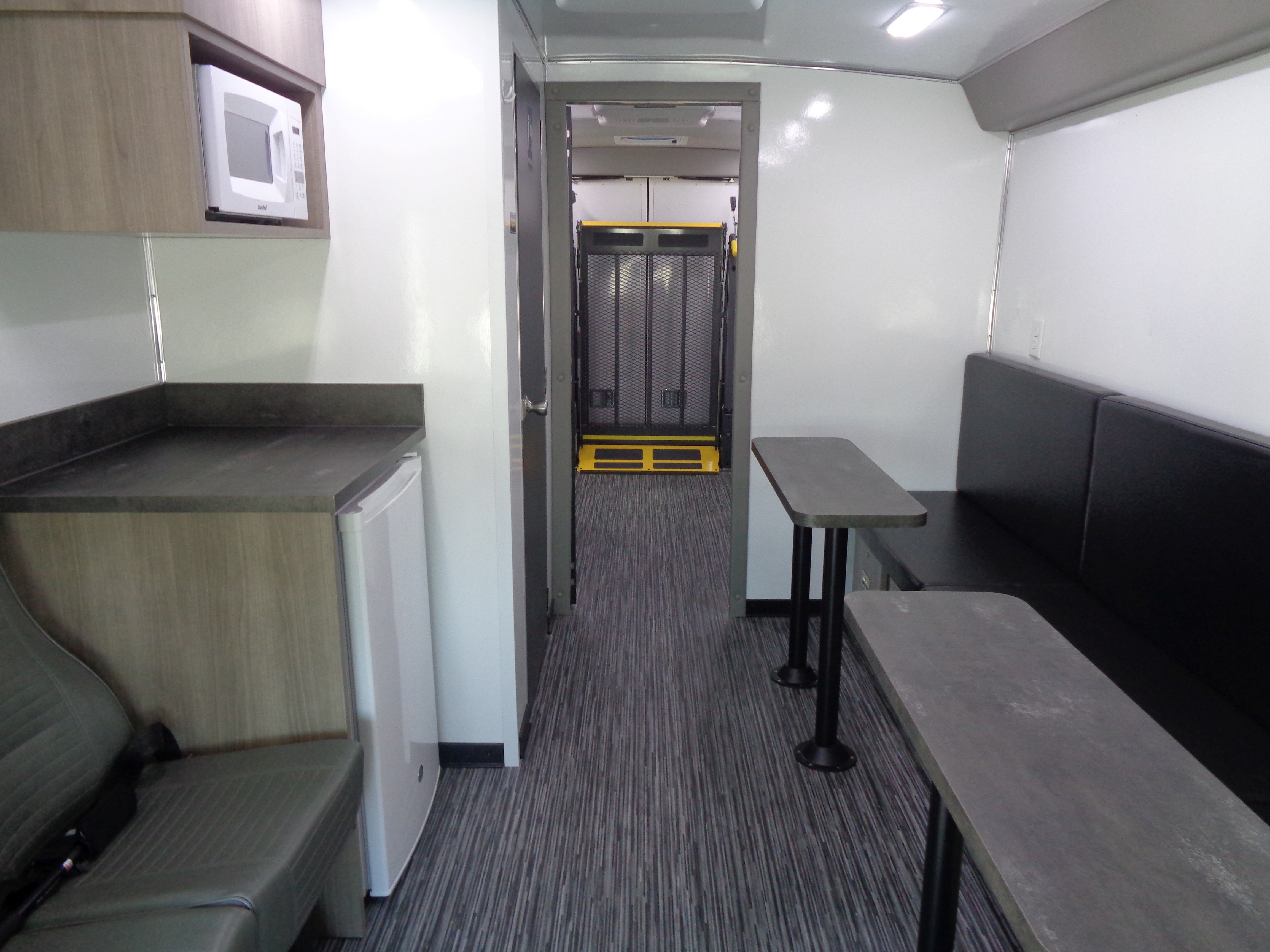

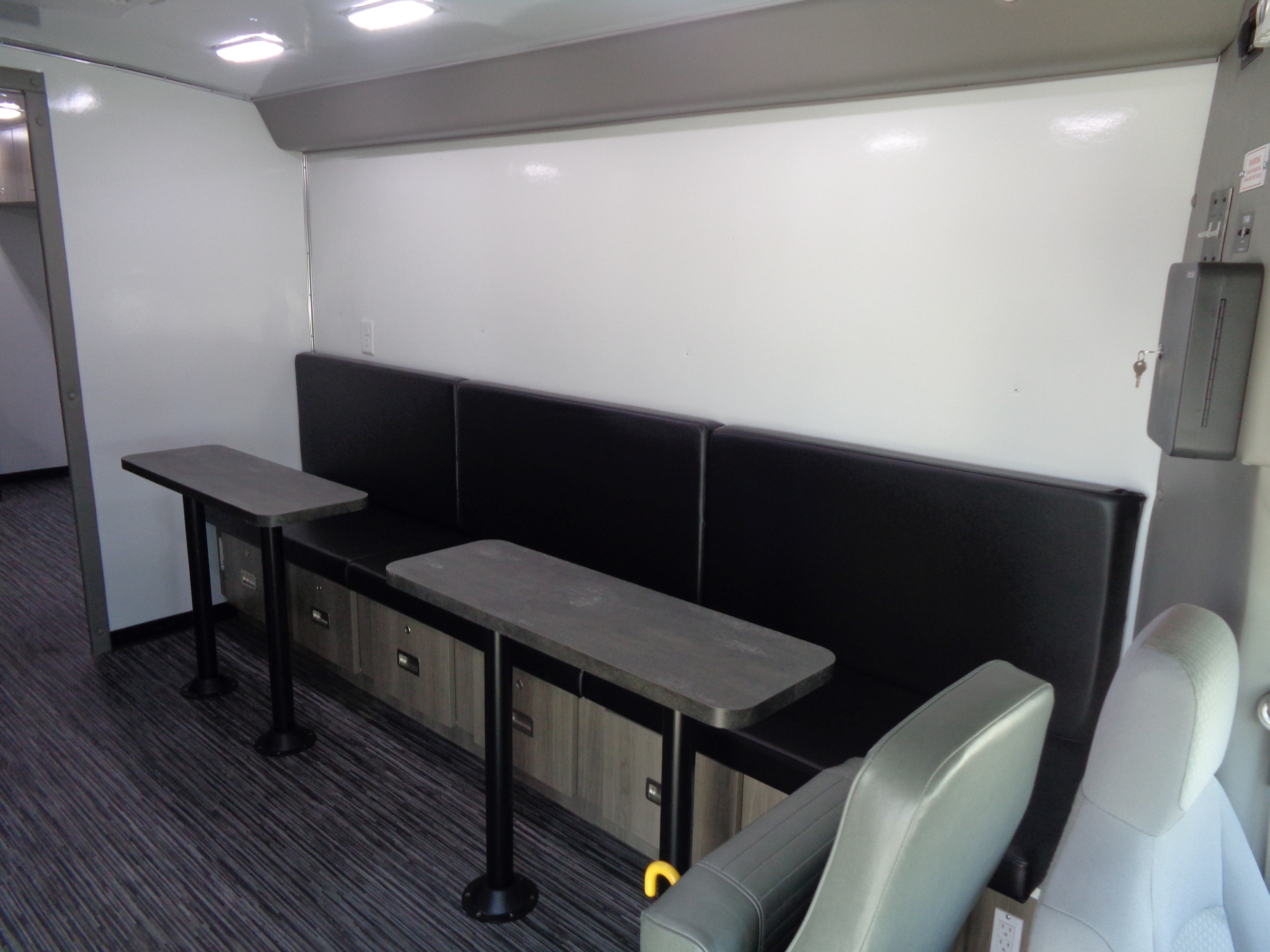

  • Custom Benches & Layout built to spec
  • First Aid Kit ‐ 24 Unit
  • Door Stopper‐Dome
  • (2) Hand Sanitizer
Chassis
  • Chassis Stretch 158" OEM to 206" (Ford E‐Series)
Climate Control
  • (2) Roof A/C 15,000 BTU
  • (2) Roof A/C 15,000 BTU
  • (2) Roof Vent ‐ Fantastic 4000 Series, Fan 14"
  • (2) Heat Coil Added to A/C System
Doors/Windows/Mirrors
  • Kubota Key Switch ‐ Exterior
  • Interior Door Switch
  • 1520 Series Sedan Door in Body w/Window & Stepwell
  • Entrance Door, Electric ‐ Built In Cab, 29" (Standard)
Electrical

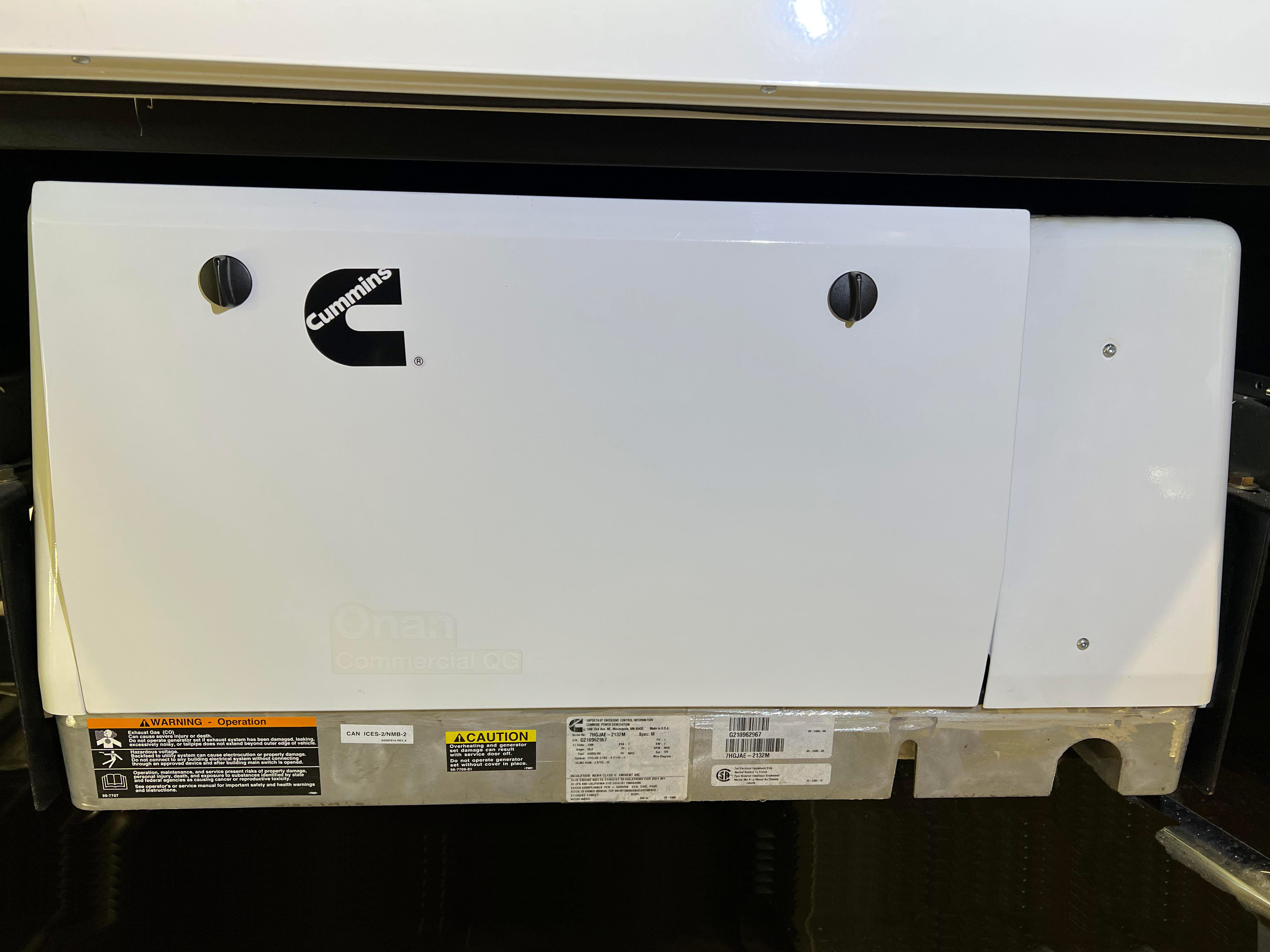

  • Cummins Onan Quiet 7 Kw Generator w/Interior Start Button & Hour Display
  • (2) Interior Switch for Dome Lights Near Passenger Entrance Door
  • (2) 12v Wire Circuit

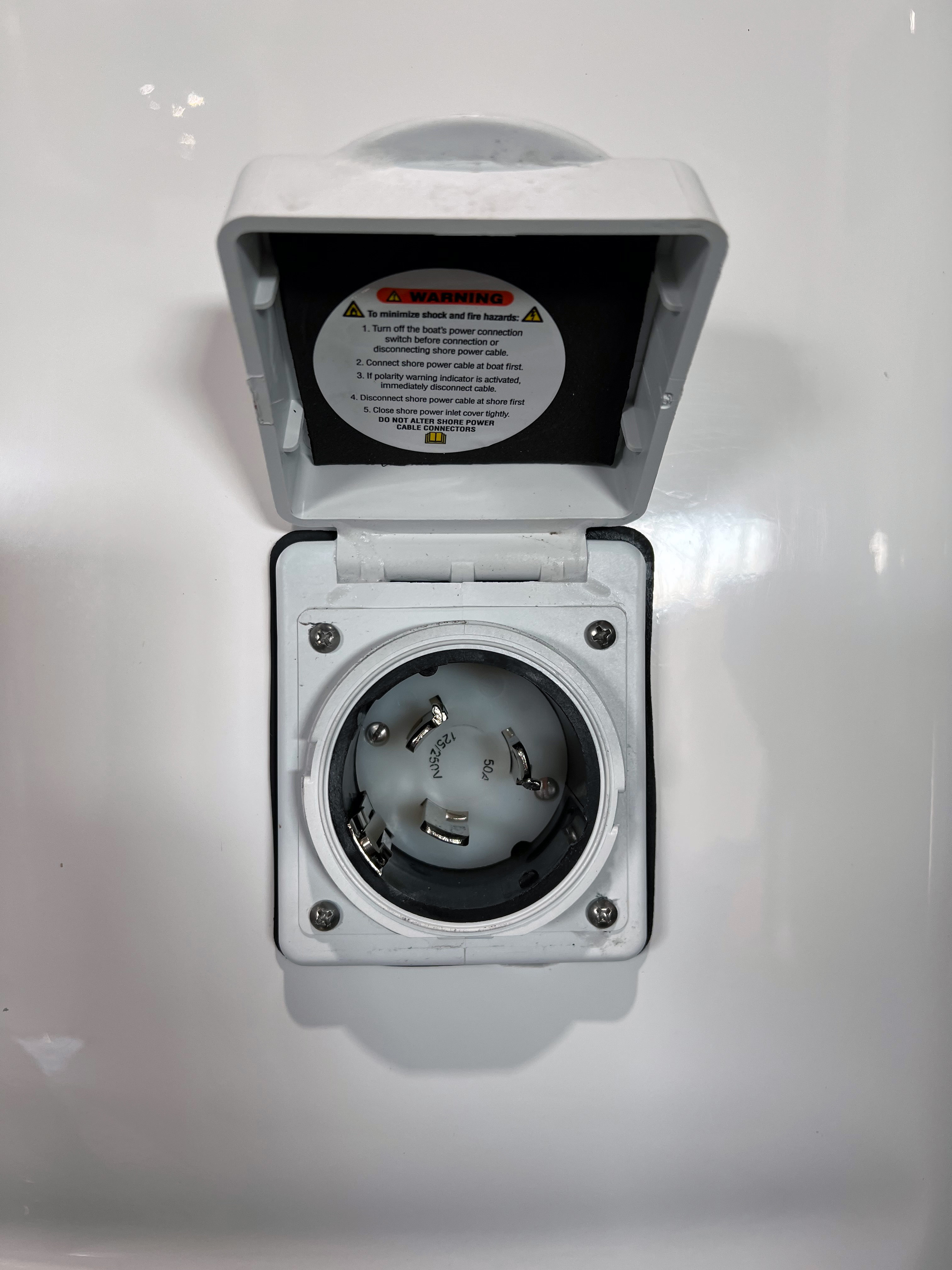

  • 110v Exterior GFI Outlet
  • (2) Pull 110v 12 Guage SL Cable Coiled up to Front Bulkhead for Rooftop A/C
  • RVS Backup Camera ‐ 7" Mirror Monitor
  • Terra Transit Pullout Battery Tray (N/A Transit Chassis)
  • Heat Kit for Bathroom Waste Tank
  • Body Disconnect Switch
  • Inverter Wired Hot At All Times with Manual Shut Off
  • (6) (2) Outlets Curbside, (3) Outlets Roadside, (1) Near Exam Bed, (1) At Check In Desk
  • (2) LED Dome Lights 4" x 11" (12 Lights Total)
  • Wire One 110v Outlet 12" off Floor, To be hot at all times.
Exterior
  • Generator Prep
  • Generator Exclosure Kit, Roadside Behind Driver's Seat
  • Running Board ‐ Wide Diamond Plate (Driver's Side)
Interior
  • White Fiberglass Wall with Door

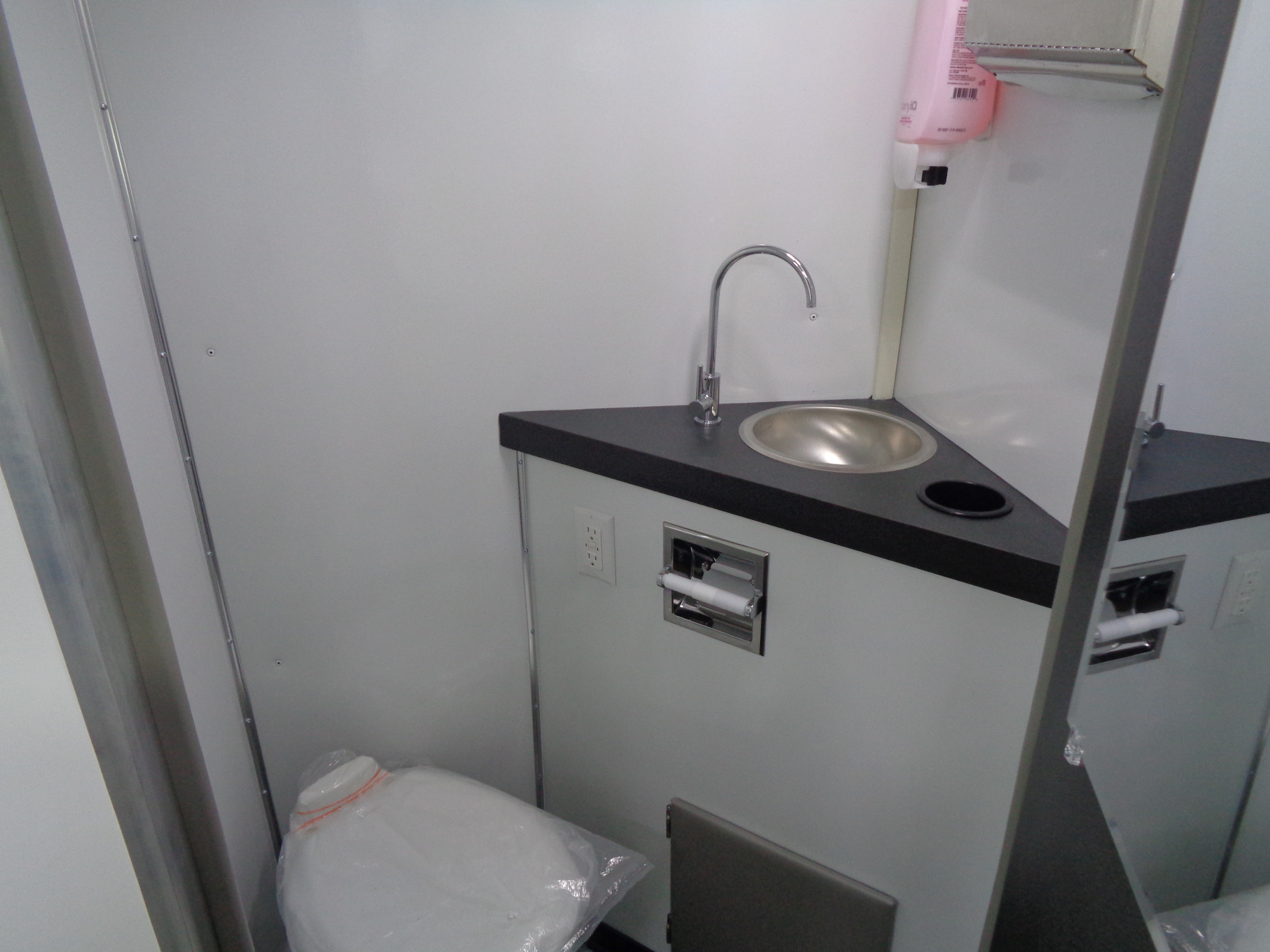

  • Bathroom Kit: Toilet, SS Sink, Mirror, Trash Can, Paper Towel & TP Dispenser
  • Stanchion Pole w/Assist R.H. Entry
  • USR Belt, Single ‐ Per Passenger
  • Flip Seat ‐ Featherweight, Single Mid‐Back 17" w/ Lap Belts
  • Two Tank Monitoring System
  • Storage Compartment ‐ Over Driver
  • Exterior Skirt Storage (36"w x 16"h x 21"d)
  • Altro Faux Wood Flooring Upgrade (Iron Bamboo)
  • Additional Steel Strapping/Backer in Sidewall Curbside for Overhead Cabinets
  • Smooth Fiberglass Interior Walls
Paratransit Equipment
  • Wheelchair Lift Belt

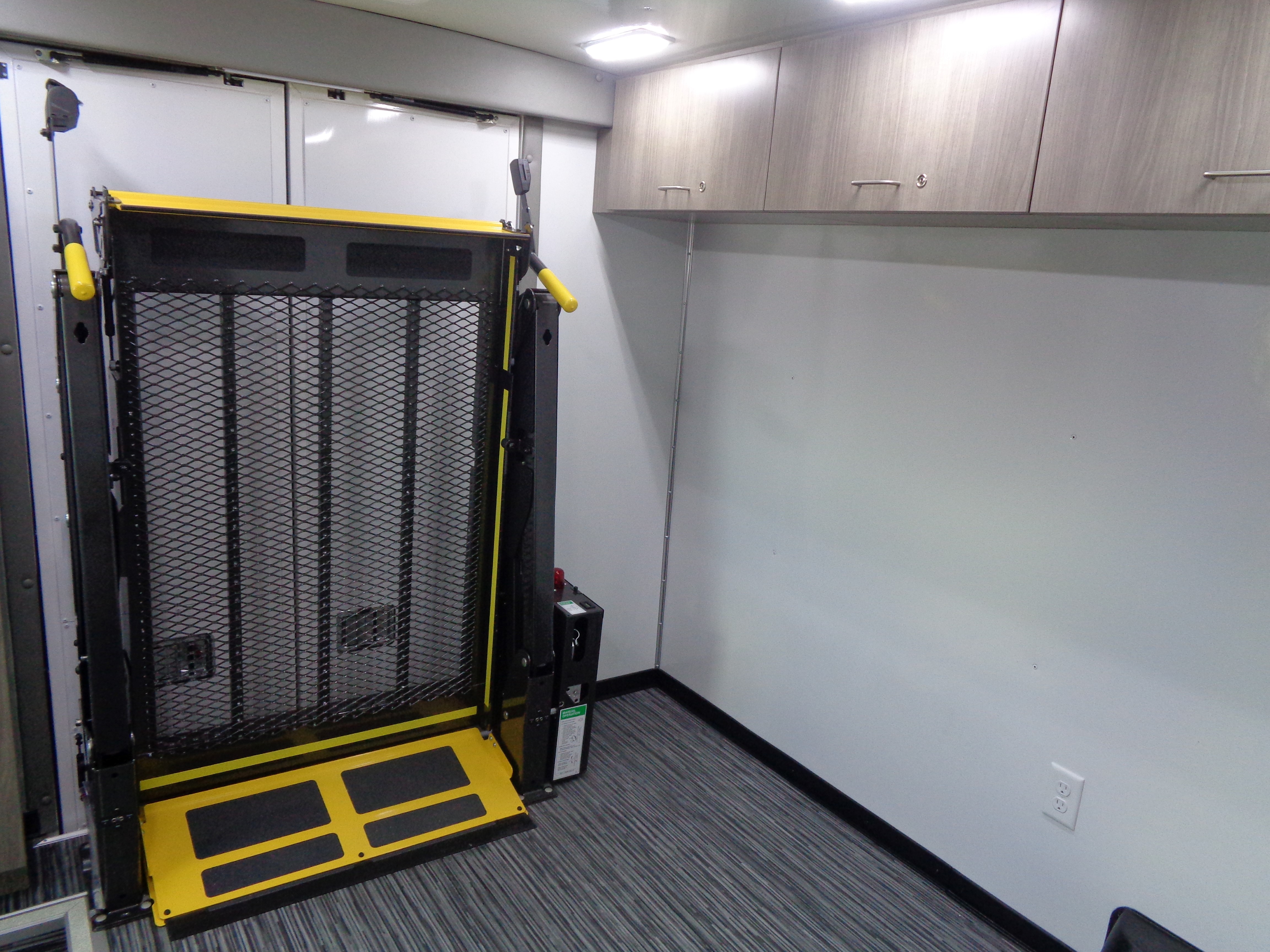

  • Braun NCL1000LB3454 1000# Lift
  • Double W/C Lift Door ‐ Deluxe
