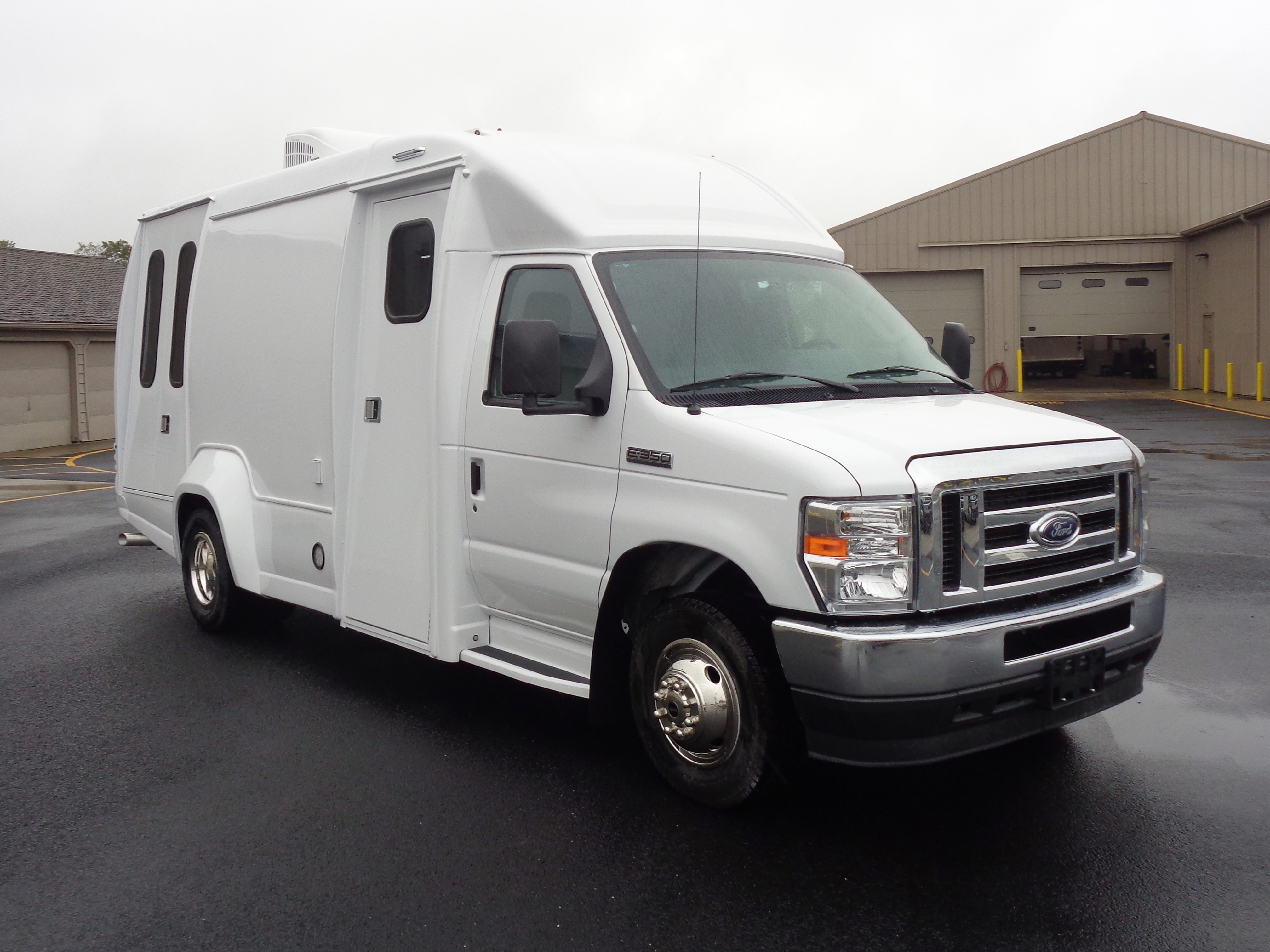

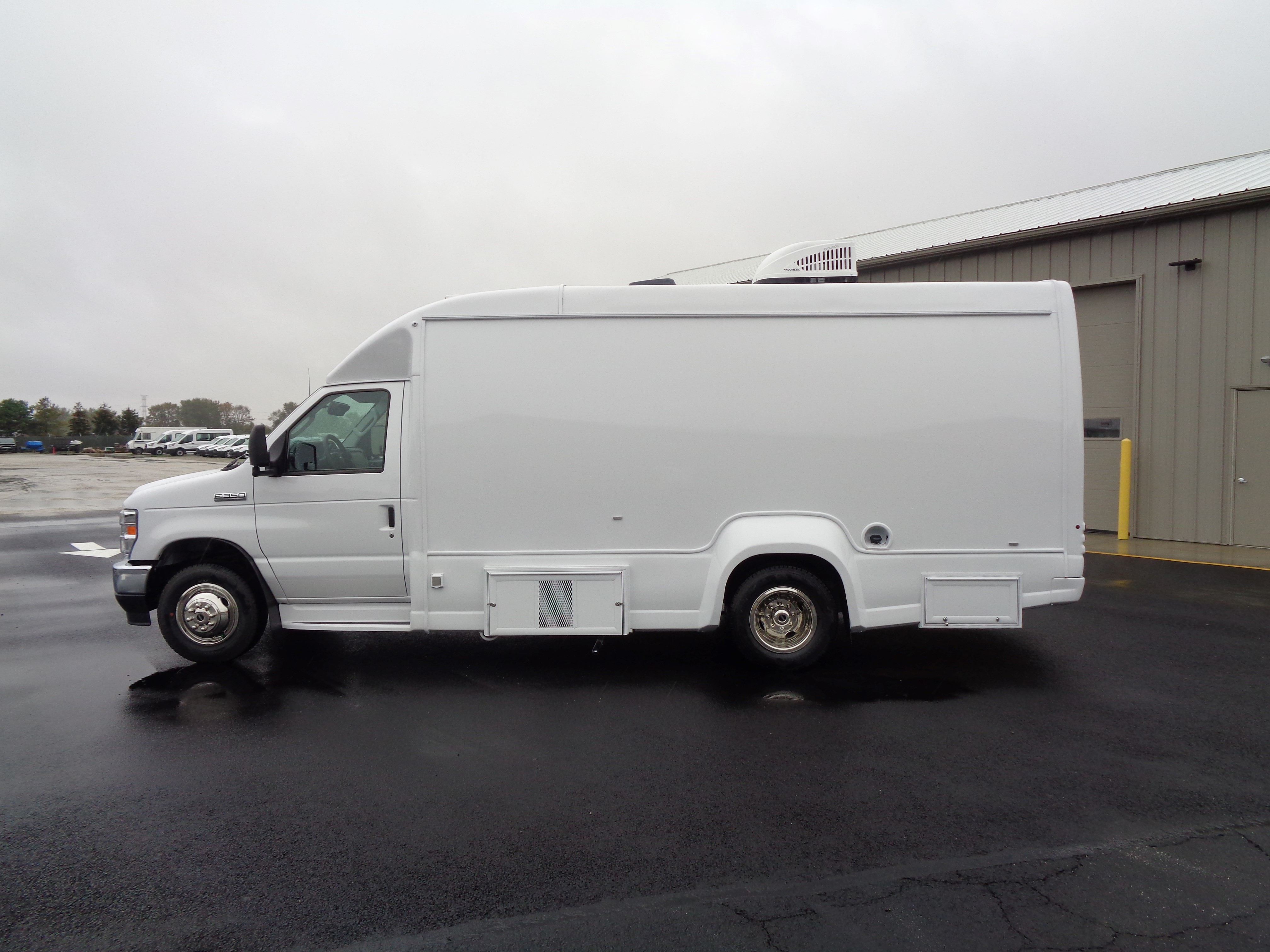

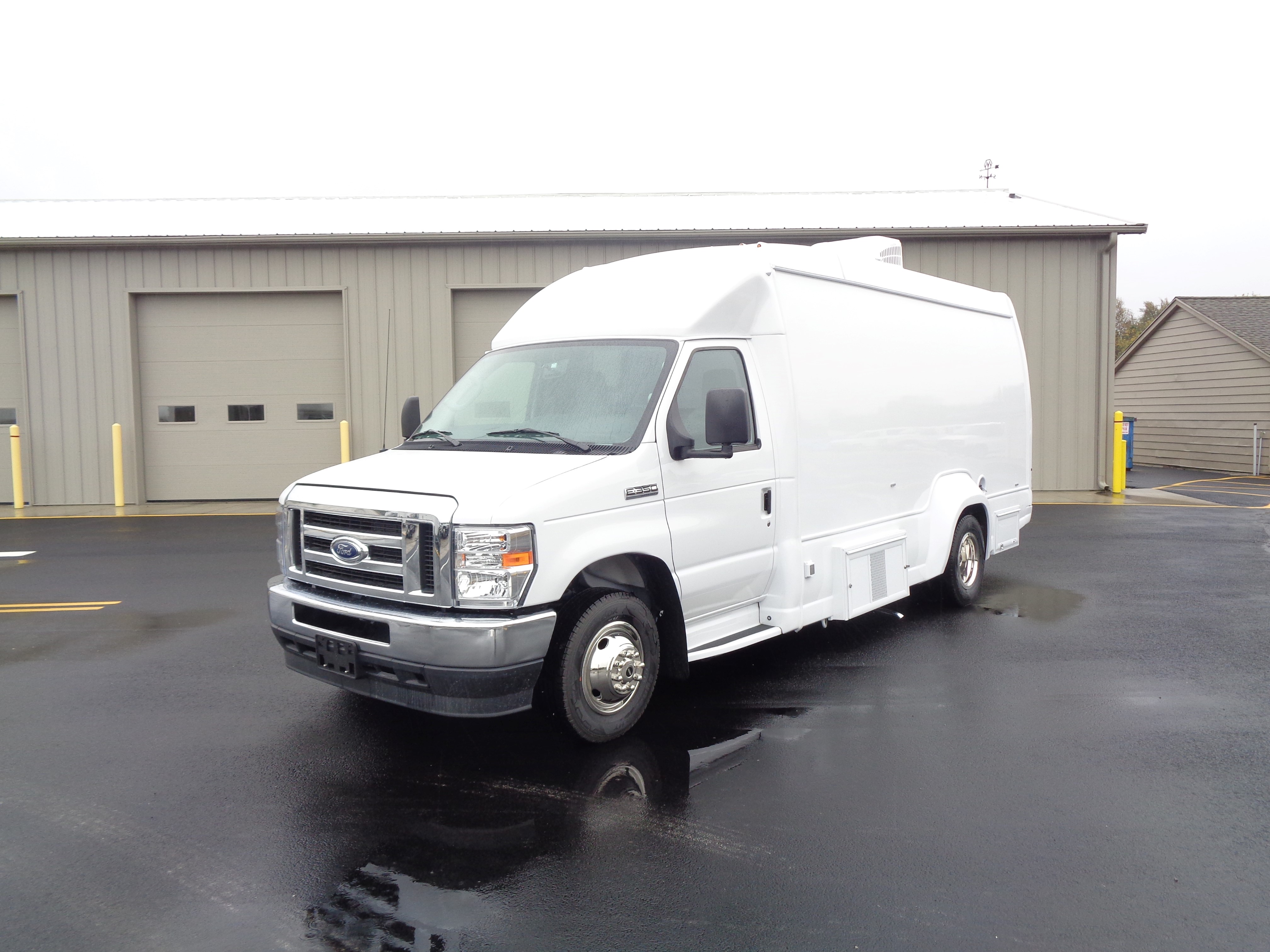

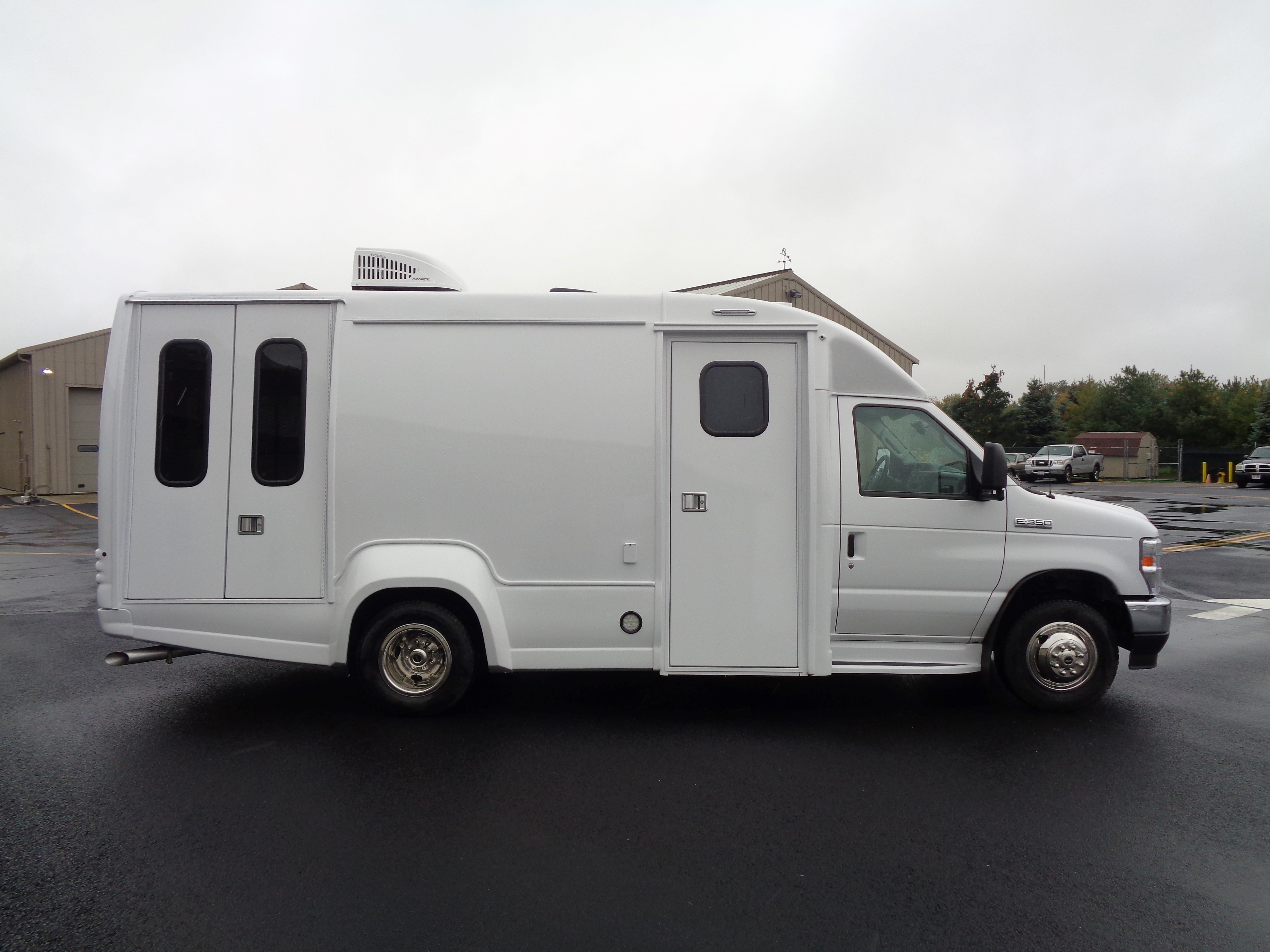

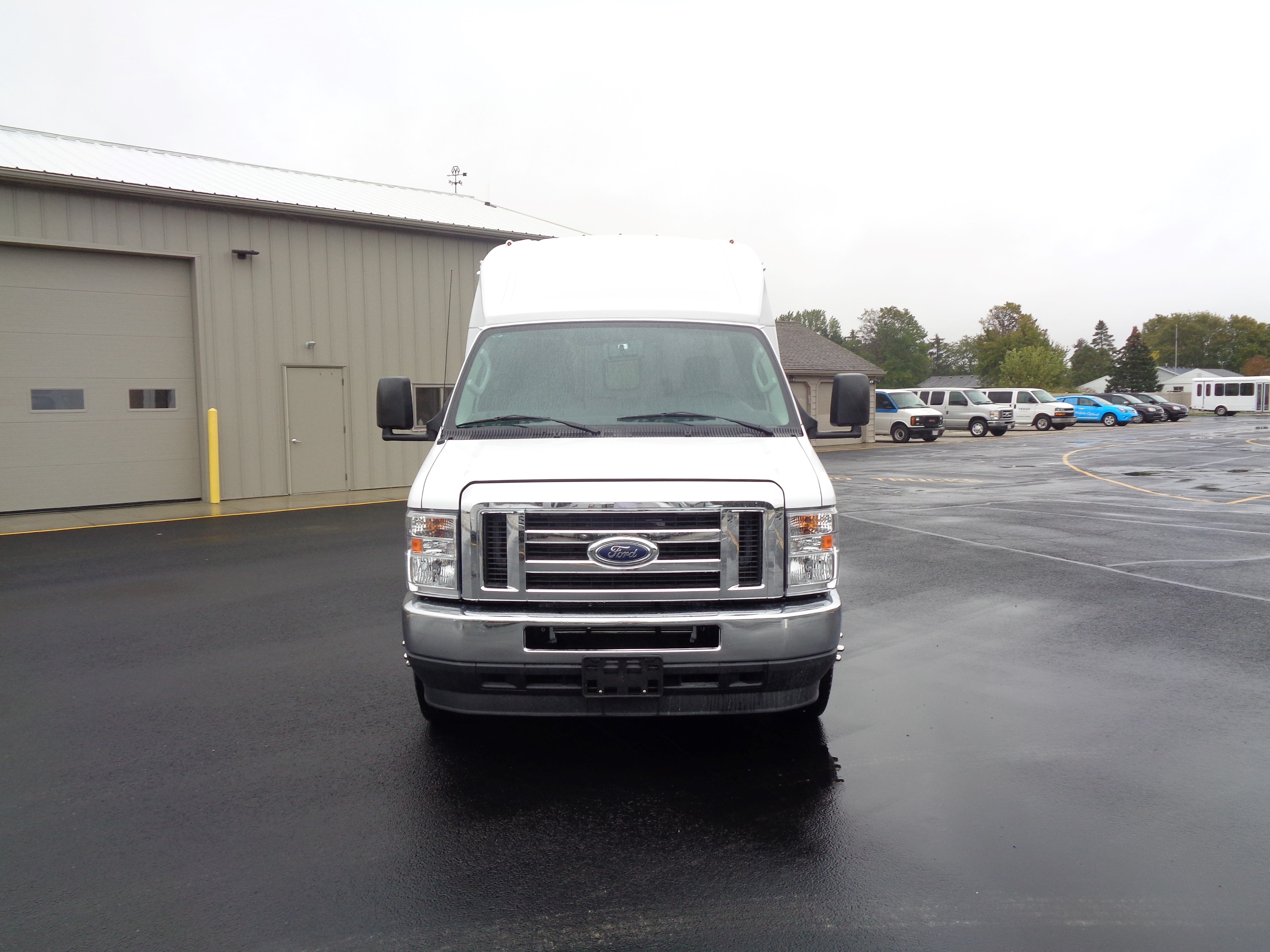

One Room Mobile Medical Clinic ADA

Vehicle Summary:

Group: B
Total Length: 23'
Chassis: Ford E350
Capacity: 1 Pass. & Driver
GVWR: 12,500#
Body: Mobile Medical Clinic
Engine: 7.3L V8 Gas
Sell Price: Call

360° Tour:

Vehicle Description:

Standard Chassis Equipment
  • Ford E‐350 7.3L Premium V8 Gas Engine
  • 12,500 GVWR
  • 6 Speed Automatic Transmission
  • 225/75R16E Tires
  • 50 State Emissions
  • Cruise Control
  • Rearview Mirror
  • Dual Batteries
  • 40 Gallon Fuel Tank
  • Daytime Running Lights
  • AM/FM Clock Radio w/4 Speakers
Standard Body Equipment
  • Welded Tubular Steel Cage
  • Welded Perimeter Steel Floor Frame Supported by Reinforced Crossmembers
  • Steel Track Mounted in Floors & Sidewalls
  • Steel Wheel Well Pans
  • Drive Shaft Guard
  • Rear Mud Flaps
  • Steel Cage Primered with Rust Inibitor
  • Underbody Foam Sealed & Undercoated
  • 5/8" Advantech Subfloor
  • One Piece Pre‐Molded Fiberglass Aerodynamic Top
  • Fiberglass Rear Cowl & Fiberglass Composite Exterior Sidewalls
  • Contoured Fiberglass Lower Body Skirts
  • Steel Reinforced Fiberglass Rear Bumper
  • 1" Polystyrene Foam Board Insulation
  • LED Stop/Tail/Turn Lights
  • Red Reflectors (2 Side, 2 Rear)
  • LED Running & Clearance Lights (9 Red & 7 Amber)
  • Backup Lights & LED License Plate Lights
  • LED High Mounted Centered Rear Brake Light
  • Velvac Manual Exterior Mirrors (L & R)
  • 3" Convex Spot Mirrors (L & R)
  • Small Storage Compartment in Front Bulkhead
  • Ceiling Dome Lights
  • OEM Rubber Floor Mat in Cab
  • 12V Electrical Fuse Panel
  • Color-Coded High Temp GXL Wiring Harness w/Weatherproof Connectors
  • OEM Dash A/C & Heat Standard
  • OEM Interior Rear View Mirror
  • FRP Interior Sidewalls
  • Vinyl-Covered Front & Rear Bulkheads
Additional Installed Options
  • (2) Coat Hook
  • Hand Sanitizer
  • Sharps Disposable System
  • First Aid Kit - 24 Unit
  • Paper Towel Dispenser
  • Curtain Track
  • Cab Privacy Curtain 47X64
  • Triangle Reflectors
  • Key Lock Box
  • Accucold Medical Grade Refrigerator 5.5 cu ft

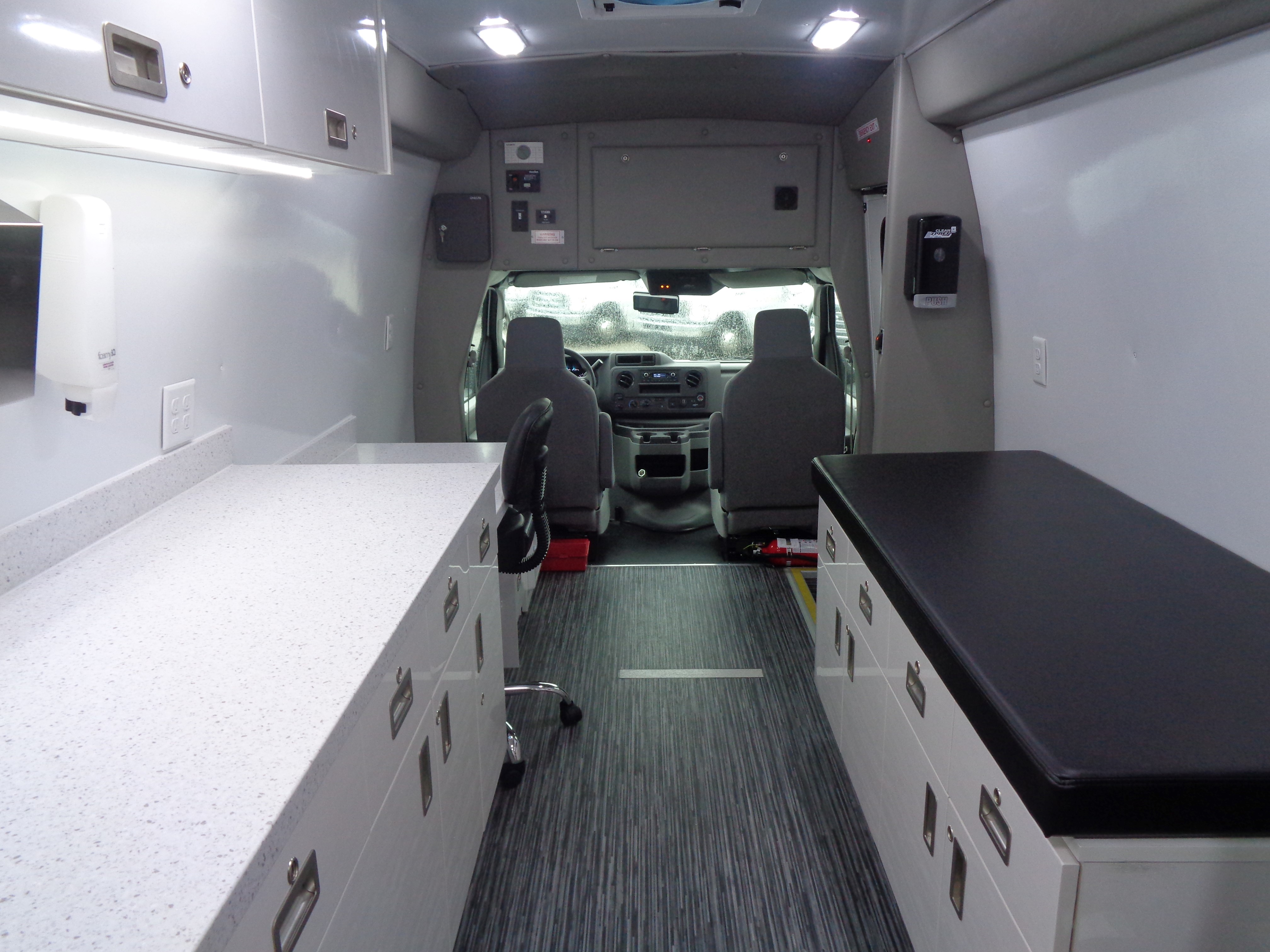

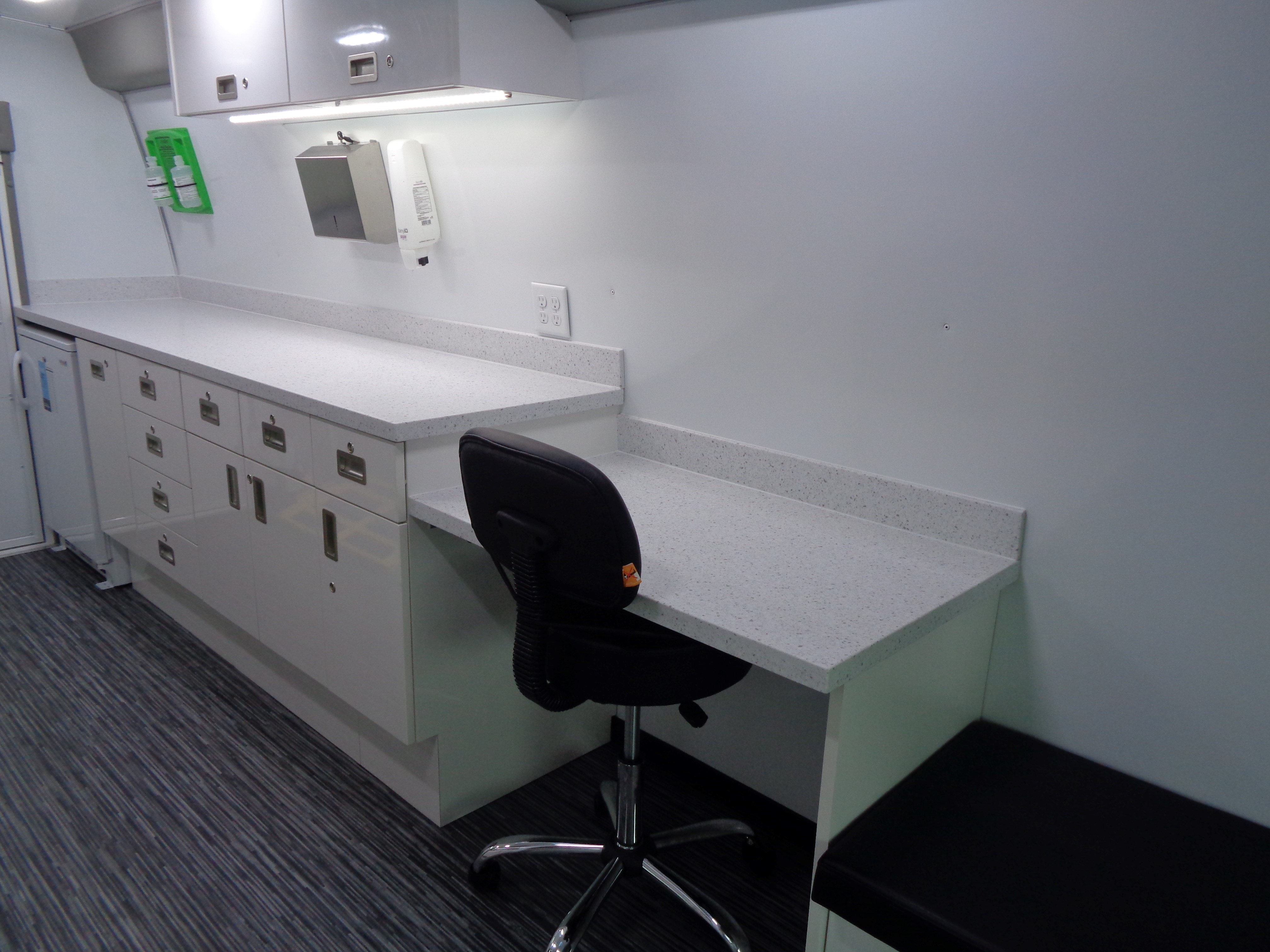

  • Check In Desk with Desk Chair
  • Waiting Area Bench

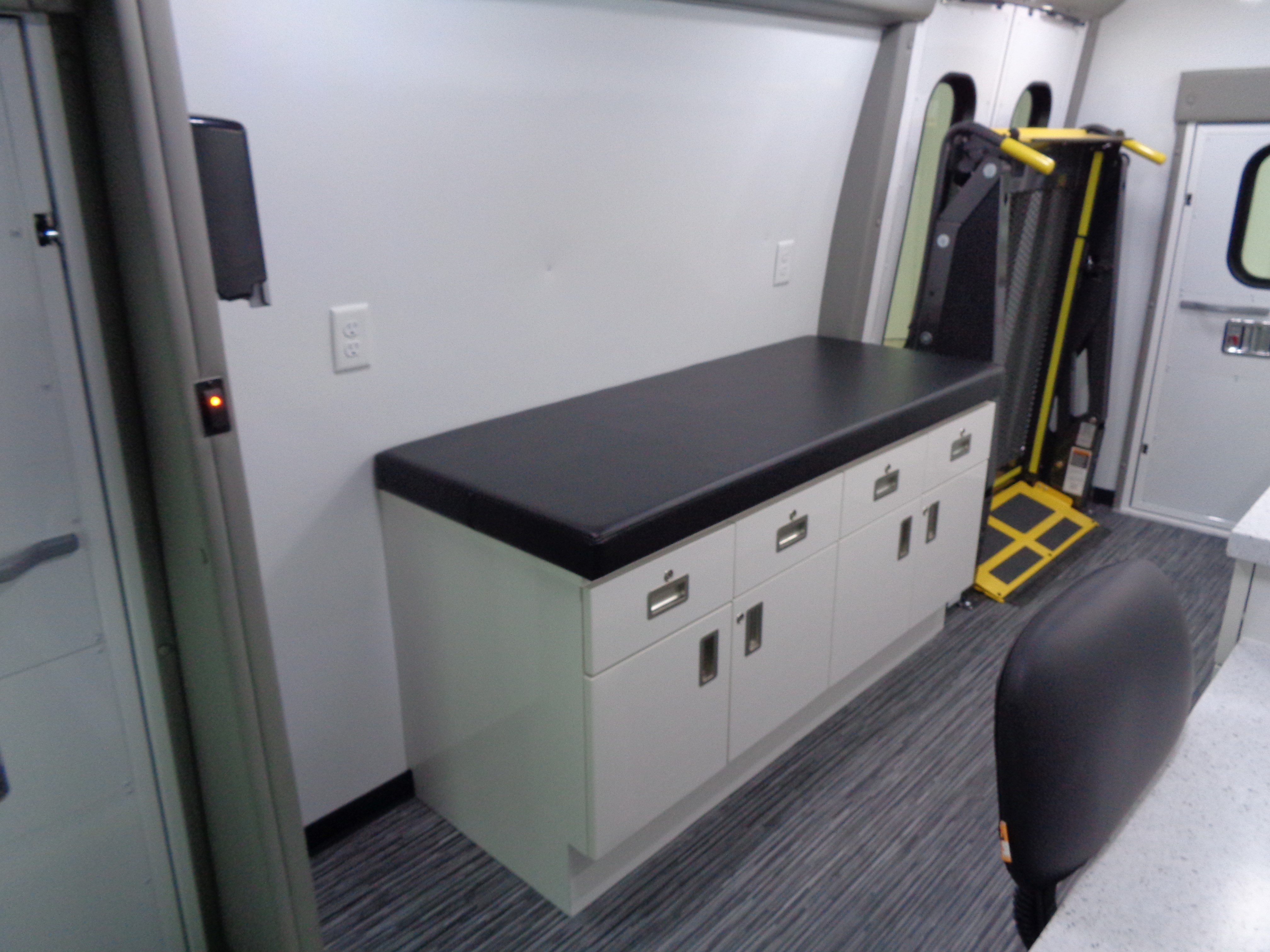

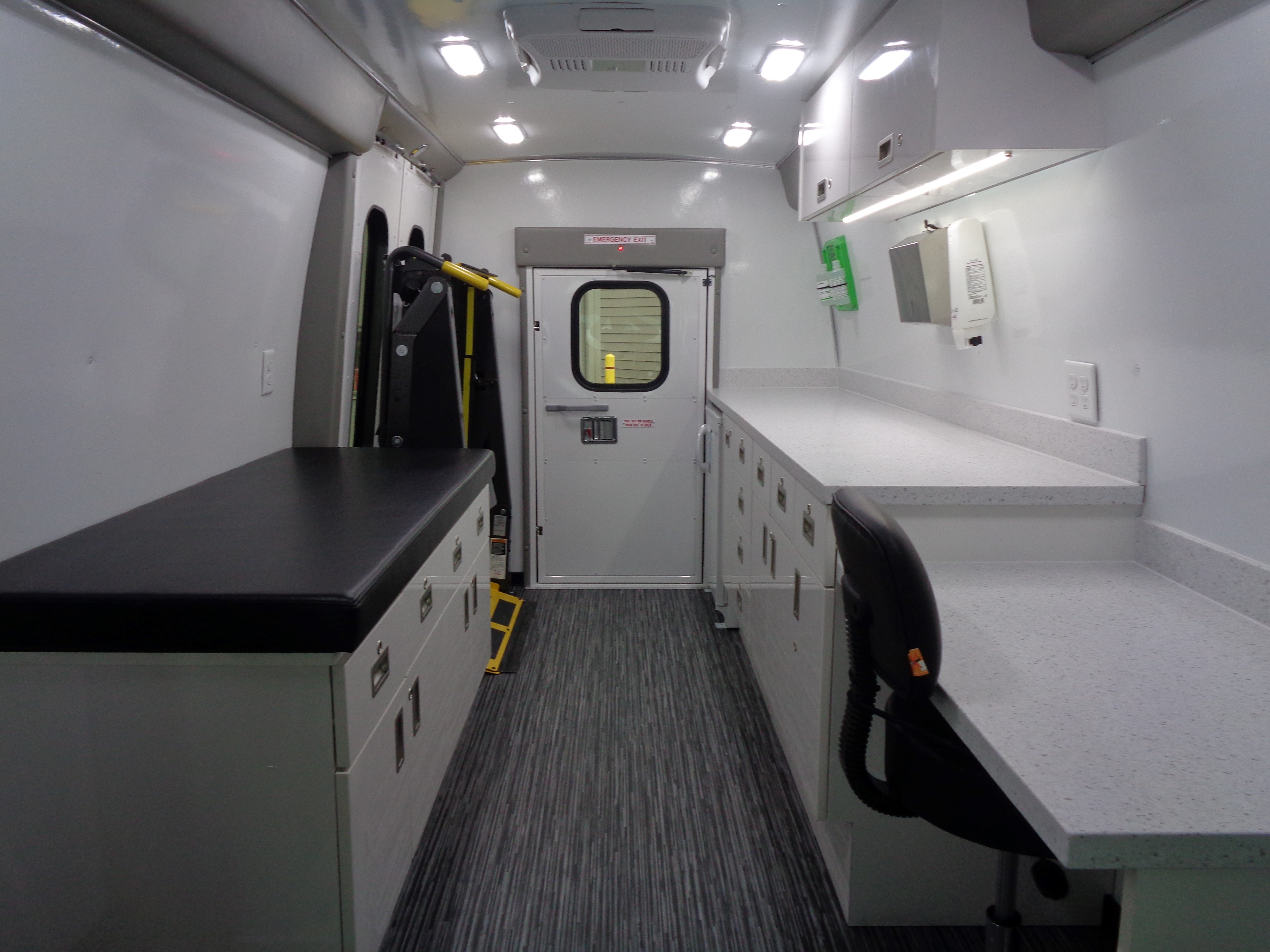

  • Exam Bench

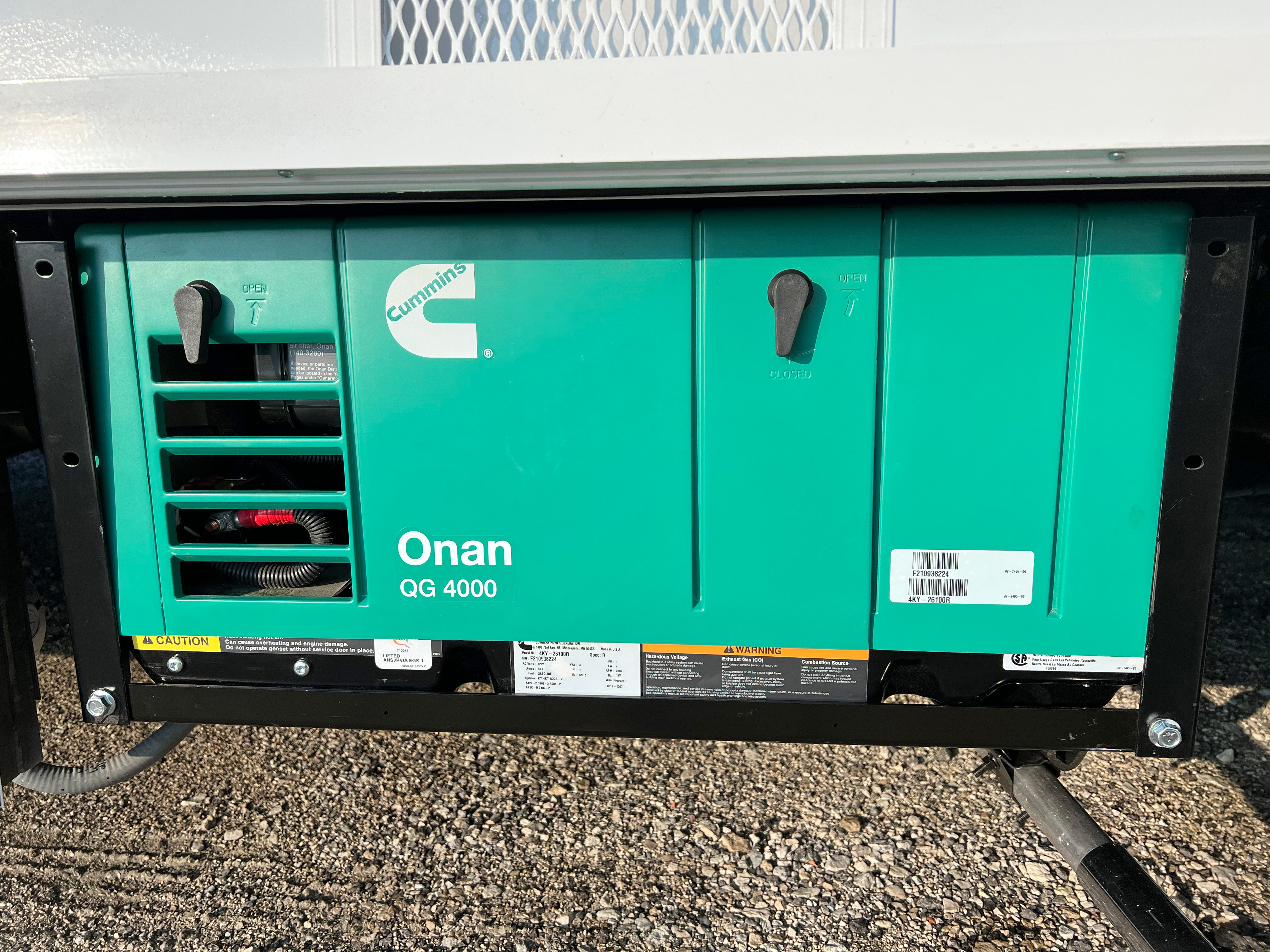

  • Cummins 4.0 Generator with Remote Start
  • Gel Hand Sanitizer
  • Curtain Hold Back Strap
  • Wheel Liners Stainless Steel E350/450 w/Valve Ext.
  • Full Wheel Alignment - Castor & Camber
  • 5 Lb. Extinguisher 3A 40 BC
Chassis
  • Additional Steel Strapping/Backer in Sidewall Curbside
  • Stretch E350 138" to 158"
Climate Control
  • Roof Vent-Fantastic 4000 Series Fan-14"
  • Roof A/C 15K BTU
  • Heat Coil
Doors/Windows/Mirrors
  • H.D. Seadan Style Entry Door w/Stepwell
  • 18" x 16" Window Added to Door, (Each)

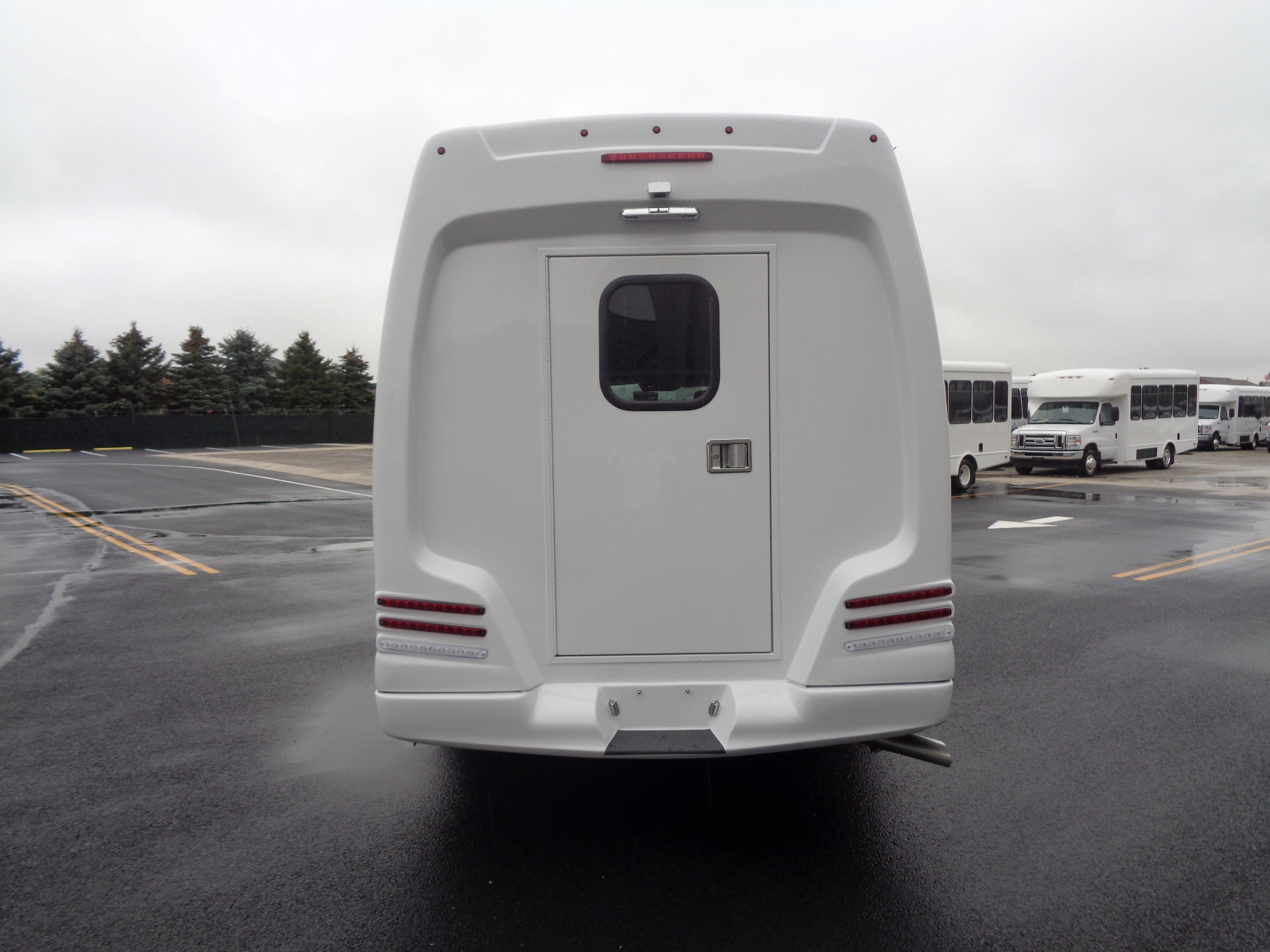

  • Single Rear Door - Deluxe (No Windows)
Electrical
  • Interior Switch for Dome Lights
  • RVS Backup Camera - 7" Mirror Monitor
  • (5) Pull 110V 14 Gauge SL Cable-Coiled to Front Bulkhead-Install 110 Outlet
  • (2) 8" Exterior LED High Mount Cargo Light
  • Entrance Door Light, Exterior Beside Door, LED
  • Replace Std. Dome Lights with 4"x11" LED Light
  • Wire One 110V Outlet to be Hot at All Times
  • Pull 110V 12 Gauge Cable-Coiled Up to Fron Bulkhead
  • Inverter Wired Hot at all Times w/Manual Shut-Off

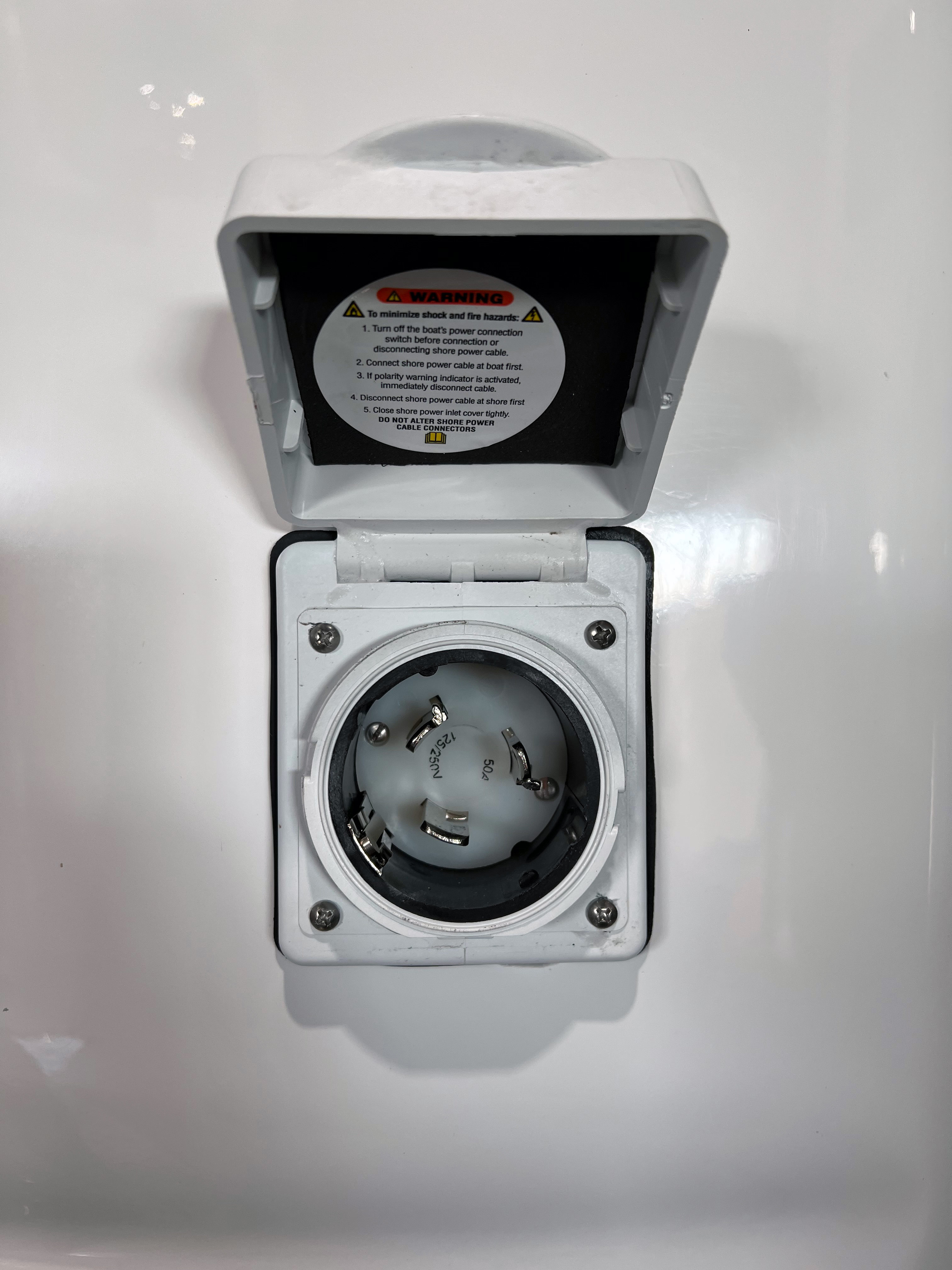

  • 110V Exterior GFI Outlet
  • Group 31 Hybrid Batteries
Exterior
  • Tailpipe Routed to Curbside
  • Generator Prep Kit
  • Generator Enclosurer Kit
Interior
  • Front Bulkhead Storage Area
  • Altro Faux Wood Flooring Upgrade
Paratransit Equipment
  • Braun Century Lift NCL919, 34" Wide
  • Double W/C Lift Door - Deluxe
Safety
  • LED Brake Light - Center High Mount
  • Back Up Alarm
