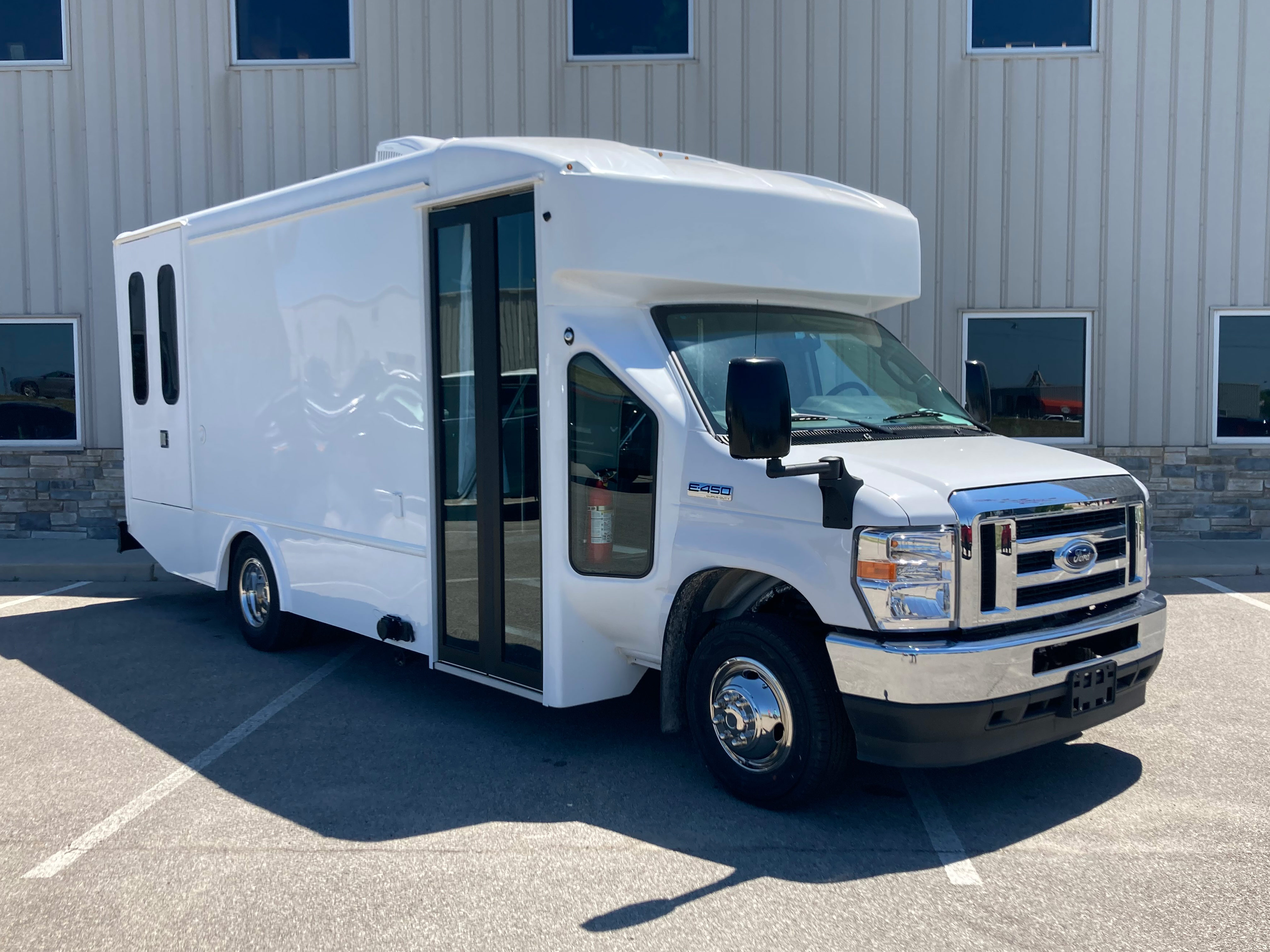

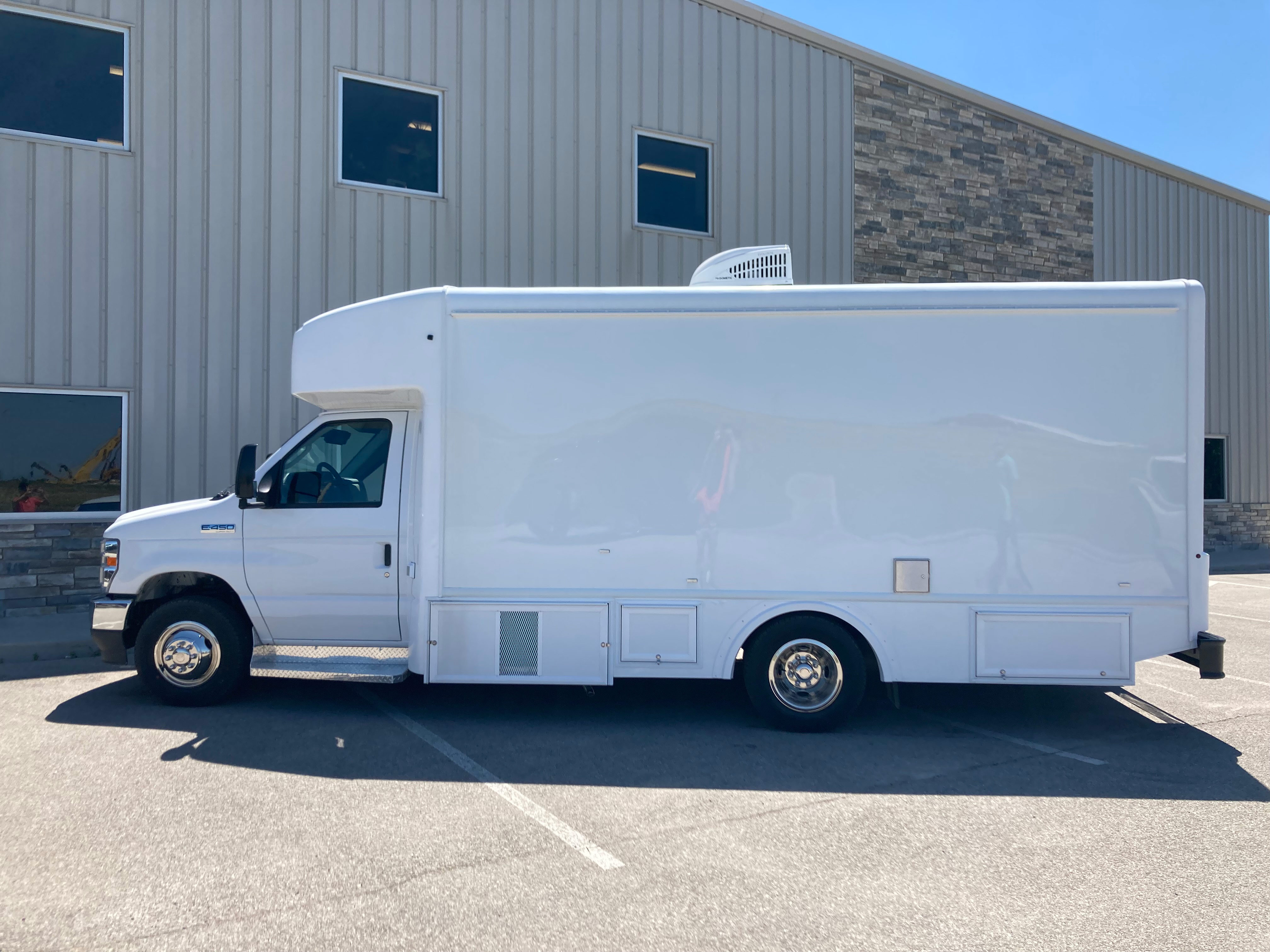

Vehicle Description:

Standard Chassis Equipment

• Ford E‐450 7.3L V8 Gas Engine
• 14,500 GVWR
• 6 Speed Automatic Transmission
• 225/75RX16E Tires
• 50 State Emissions
• Cruise Control
• Dual Batteries
• 55 Gallon Fuel Tank
• Daytime Running Lights
• AM/FM Clock Radio w/4 Speakers

Standard Body Equipment

• Welded Tubular Steel Cage
• Welded Perimeter Steel Floor Frame Supported by Welded Crossmembers
• Steel Wheel Well Plates
• Drive Shaft Guards
• Rear Mud Flaps
• Steel Cage Primered w/ Rust Inhibitor
• Underbody Foam Sealed and Undercoated
• 5/8" AdvanTech Subfloor

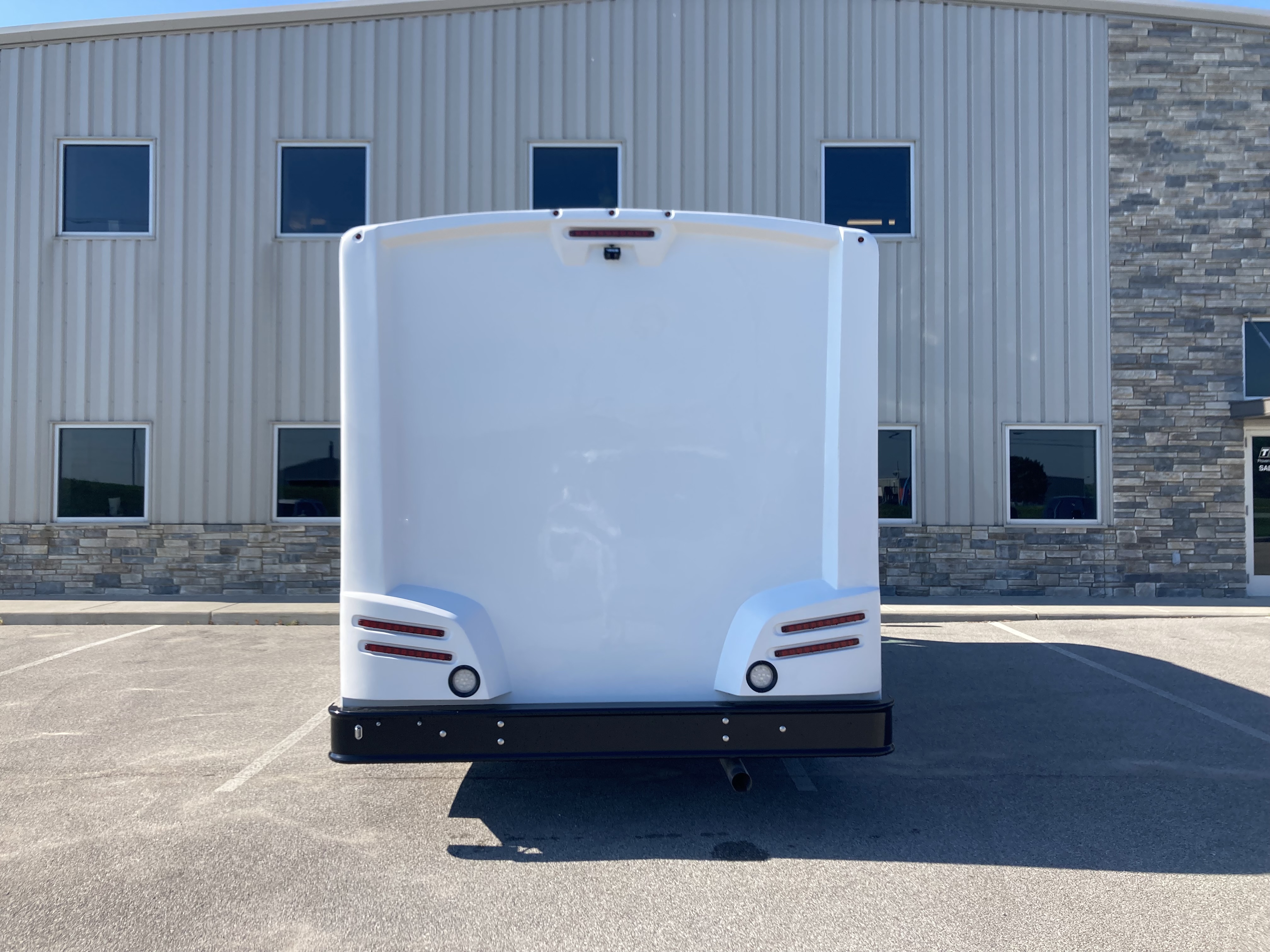

• Fiberglass Front & Rear Cowls & Fiberglass Composite Exterior Sidewalls
• One‐Piece Pre‐Molded Fiberglass Roof
• Lower Body Skirts
• 1' Polystyrene Foam Board Insulation
• Entrance Door ‐ Aluminum, Electric Bi‐Fold 29" w/Tinted Glass
• Tinted A‐Panel Window in Cab
• LED Upper Running /Clearance Lights per FMVSS 108 (5 Amber & 5 Red)
• LED/ Reflective Amber Lower Midship Side Marker Lights (2)
• LED Stop/Tail/Turn Lights Inc LED/Reflective Red Rear Side Marker Lights (2)
• Red Reflectors (2 at Rear)
• Backup Lights & LED License Plate Lights
• Heavy‐Duty Steel Powder‐Coated Rear Bumper
• Velvac Exterior Mirrors (L & R)
• 76" Interior Height
• Flat Floor
• Durable Bright White Reinforced Fiberglass Ceiling & Sidewalls
• State of the Art Electrical Panel w/ Printed Circuity
• Color‐Coded High Temp GXL Wiring Harness w/Weatherproof Connectors
• Convenience Lighting in Cab & Stepwell

Climate Control

• (2) Roof Vent ‐ Fantastic 400 Series, Fan 14"
• Heat Coil ‐ Add Heat Coil to Each A/C System in the Unit

Doors/Windows/Mirrors

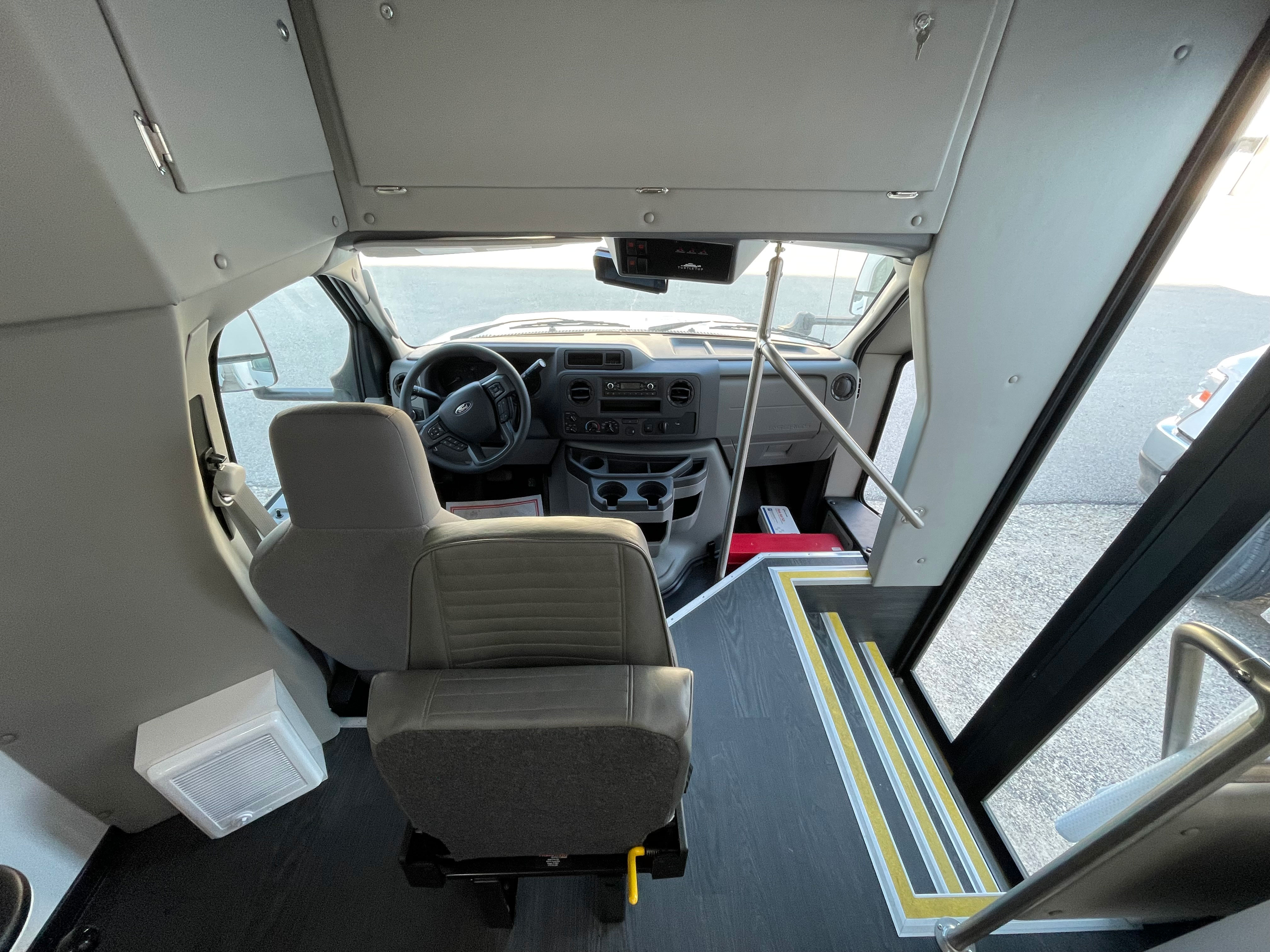

• Entrance Door, Electric ‐ Built In Cab, 29" (Standard)

Electrical

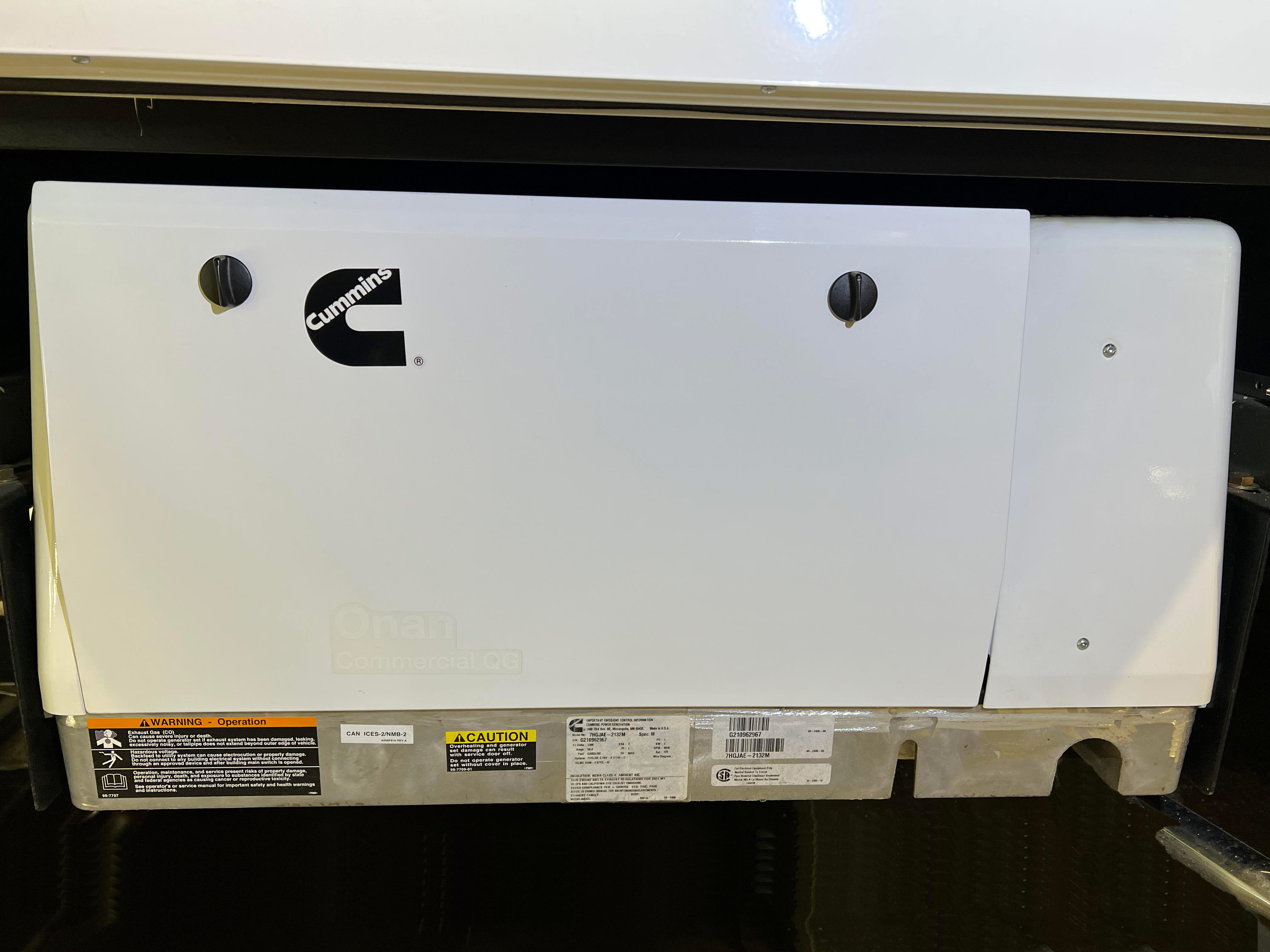

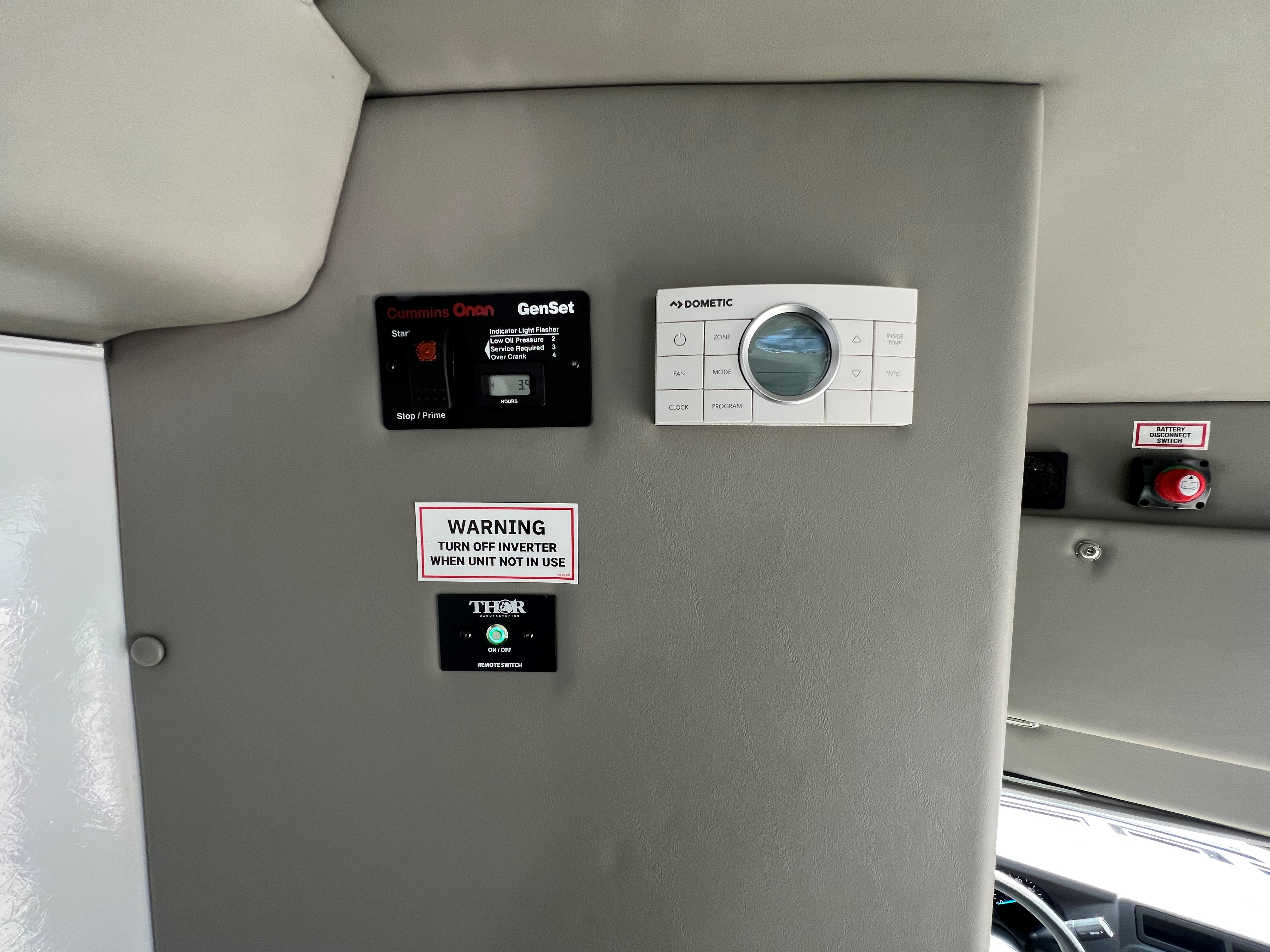

• Cummins Onan Quiet 7 Kw Generator w/Interior Start Button & Hour Display
• 12v Wire Run to Power Fridge
• Terra Transit Pullout Battery Tray (N/A Transit Chassis)
• Pull 110v 12 Guage SL Cable, Coiled Up to Front Bulkhead Area
• Replace Standard Dome Lights with 4" x 11" LED Lights
• (5) Pull 110v 14 Guage SL Cable, Coiled Up to Front Bulkhead Area
• RVS Backup Camera ‐ 7" Mirror Monitor

Exam Specific Electrical

• Breaker Box/Breakers
• 110v Package Includes 5 Outlets ‐ 10 Plugs
• Cummins Onan 7.0 Generator Gas Generator

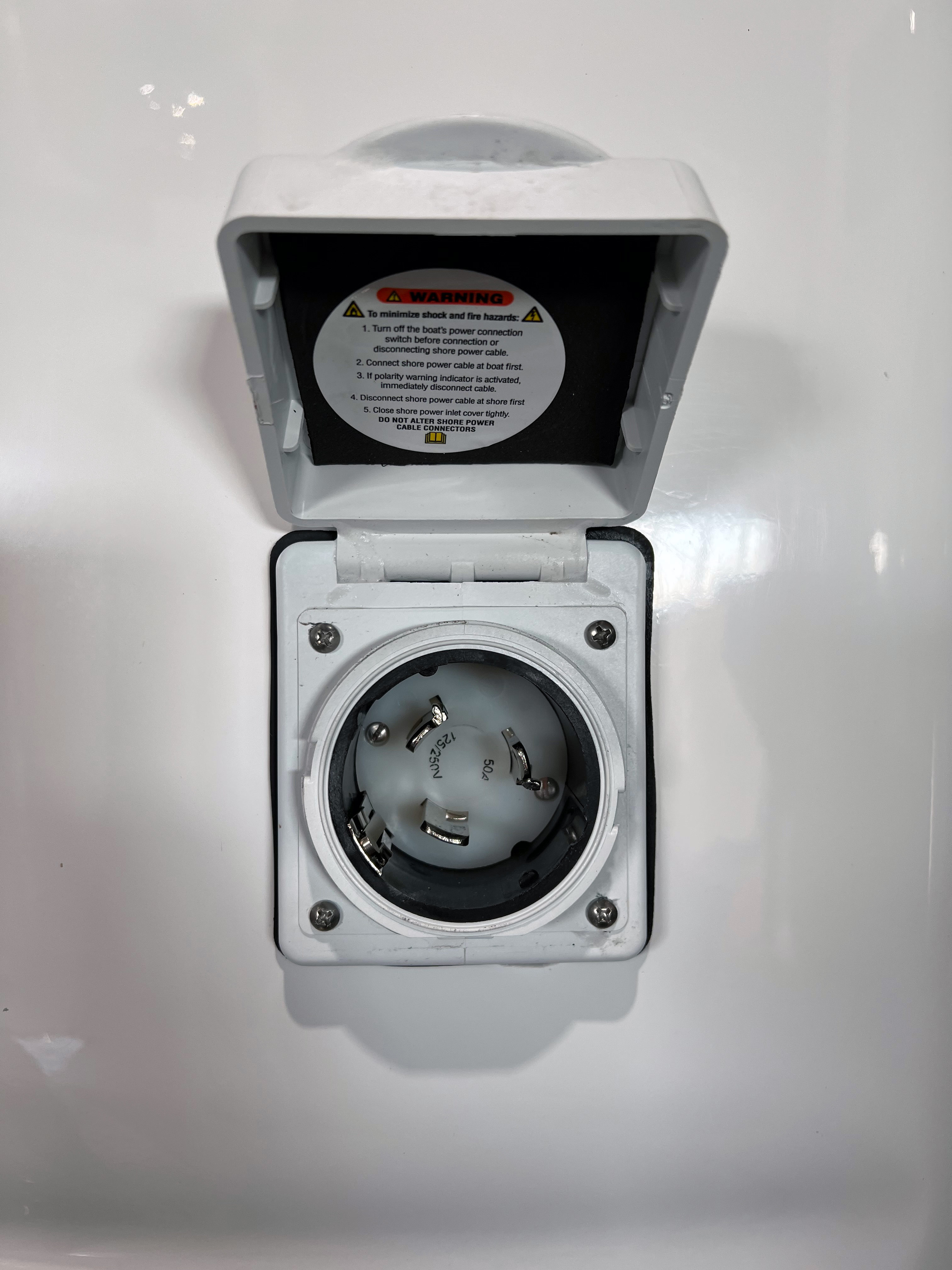

• 50 Amp Shore Power w/Cord, Inlet on Side of Vehicle for Plug In
• Power Converter 50 Amp
• Transfer Switch

Exterior

• Generator Prep, Skirt Door 43.25"W x 20"H
• Running Board ‐ Wide Diamond Plate (Driver's Side)
• Exterior Skirt Storage 36"W x 19"D x 14.25"H Box w/Door

Interior

• Interior Corner Boards (Standard)
• Gray Vinyl Padded Wall with Door
• Flip Seat ‐ Featherweight, Single Mid‐Back 17" w/ Lap Belts
• USR Belt, Single ‐ Per Passenger
• Additional Steel Strapping/Backer in Sidewall, Curbside for Cabinets
• Altro Faux Wood Flooring Upgrade (Iron Bamboo)
• Smooth Fiberglass Interior Sidewalls w/Gray Vinyl Corner Boards
• Stanchion Pole w/Assist R.H. Entry
• Bathroom Kit

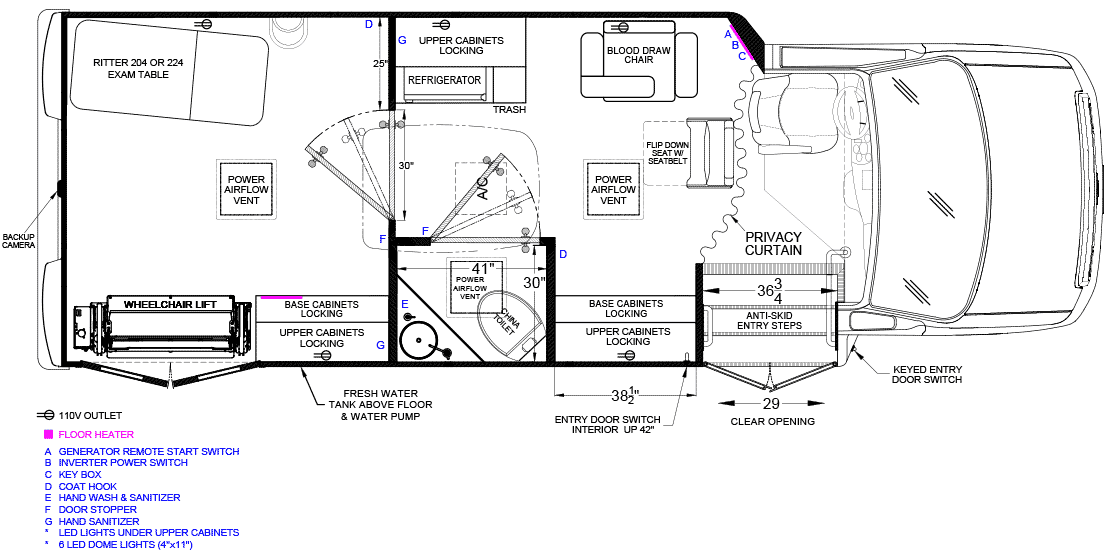

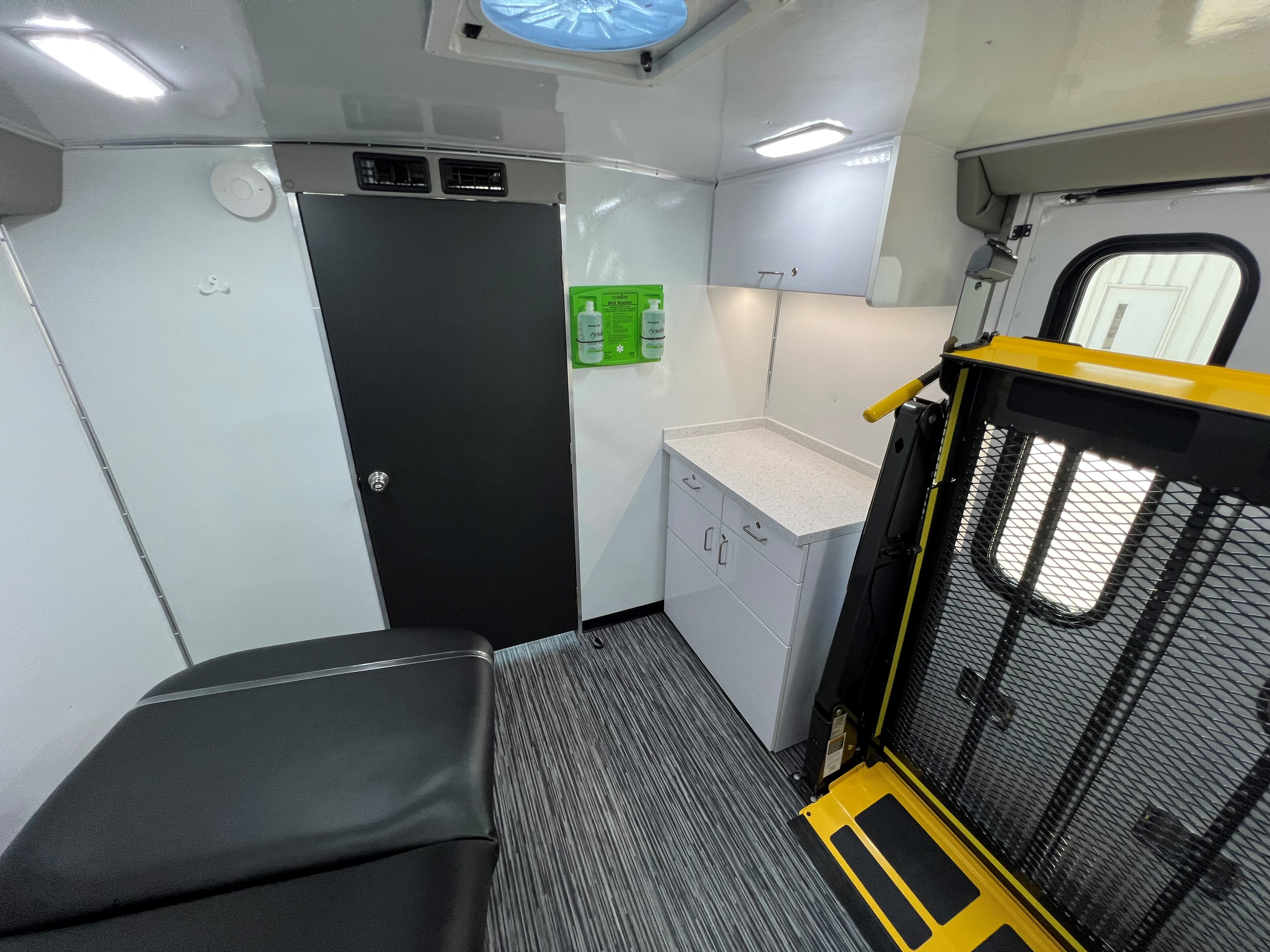

Mobile Clinic Upfit Specifics

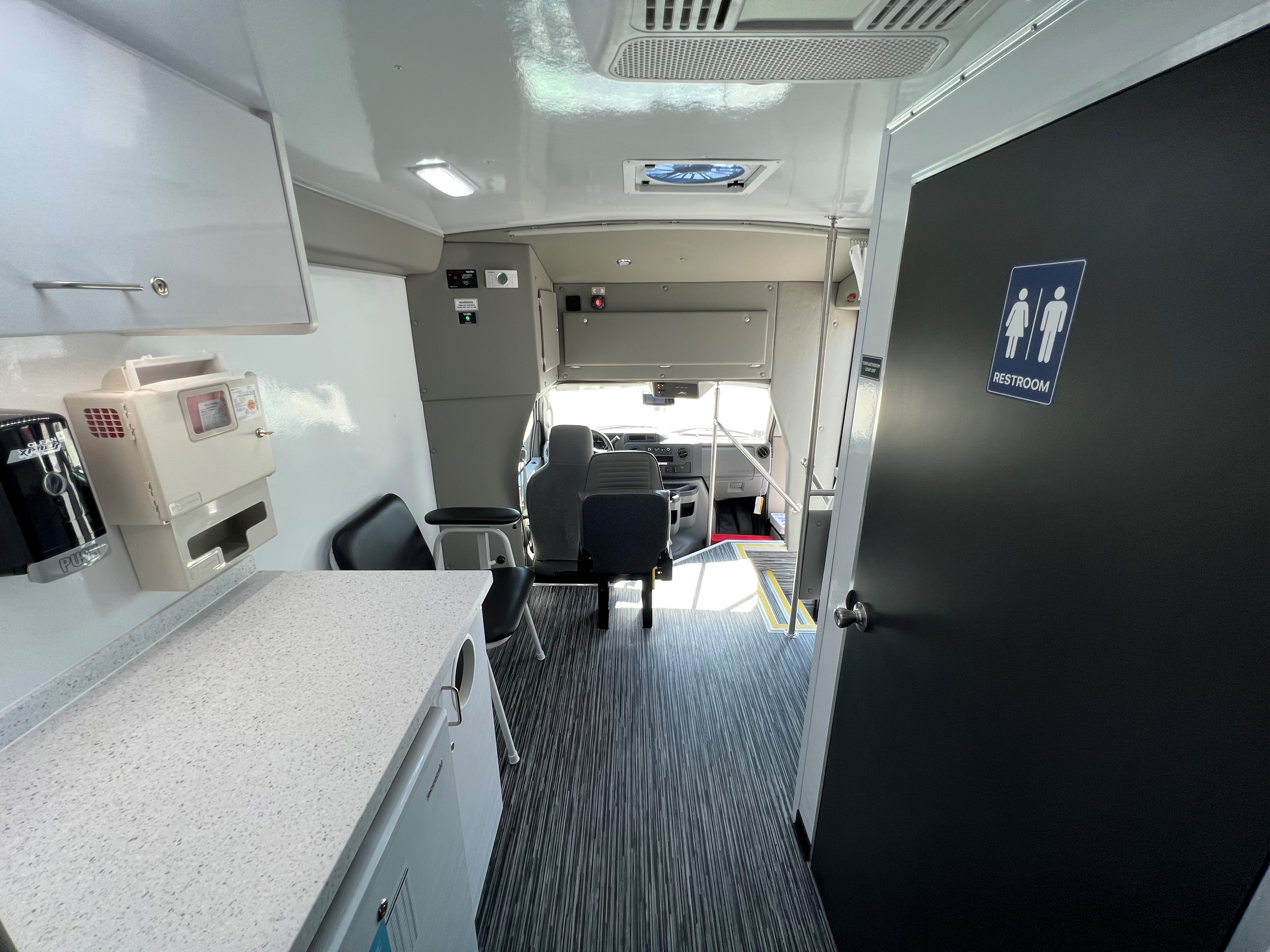

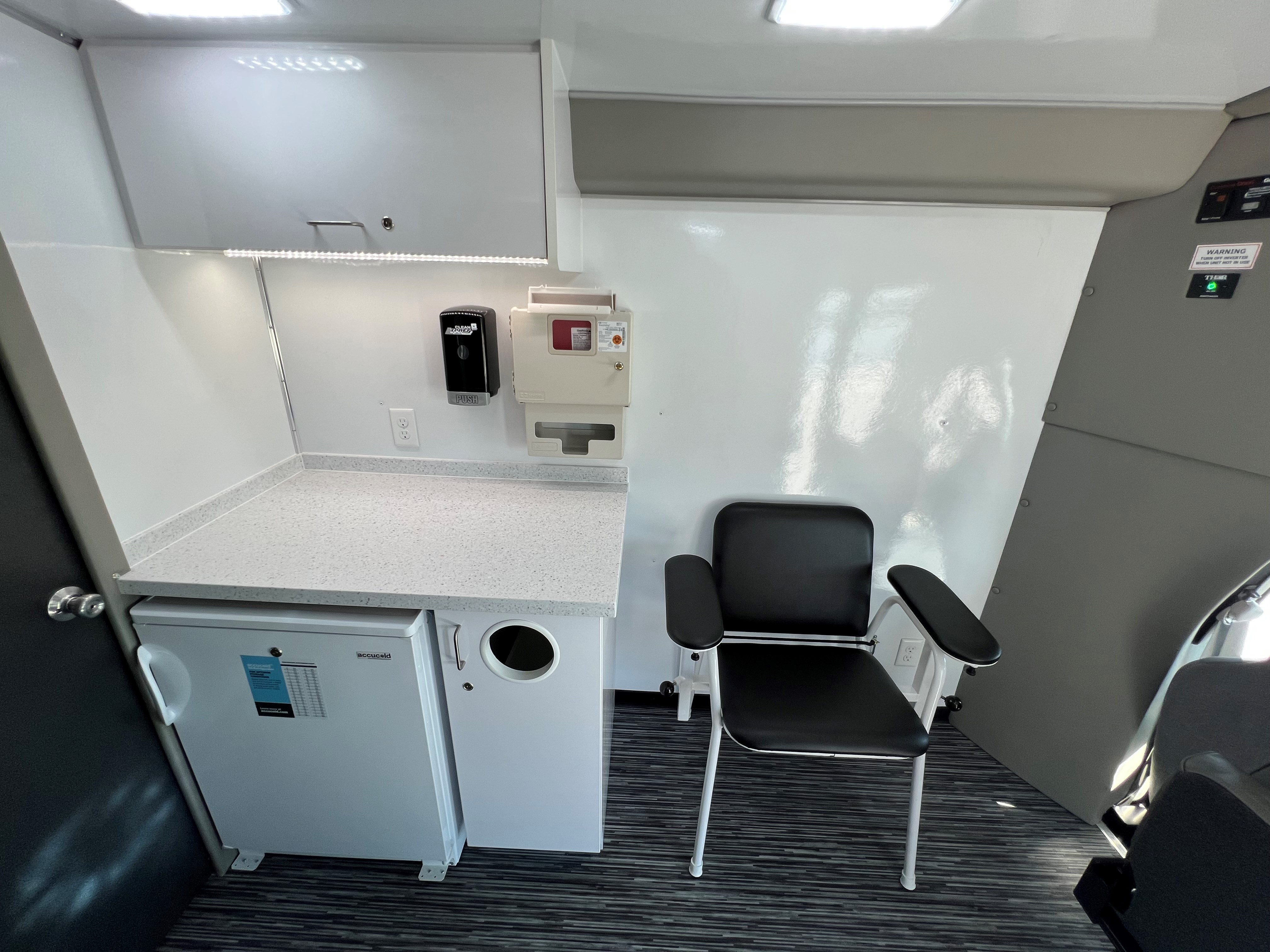

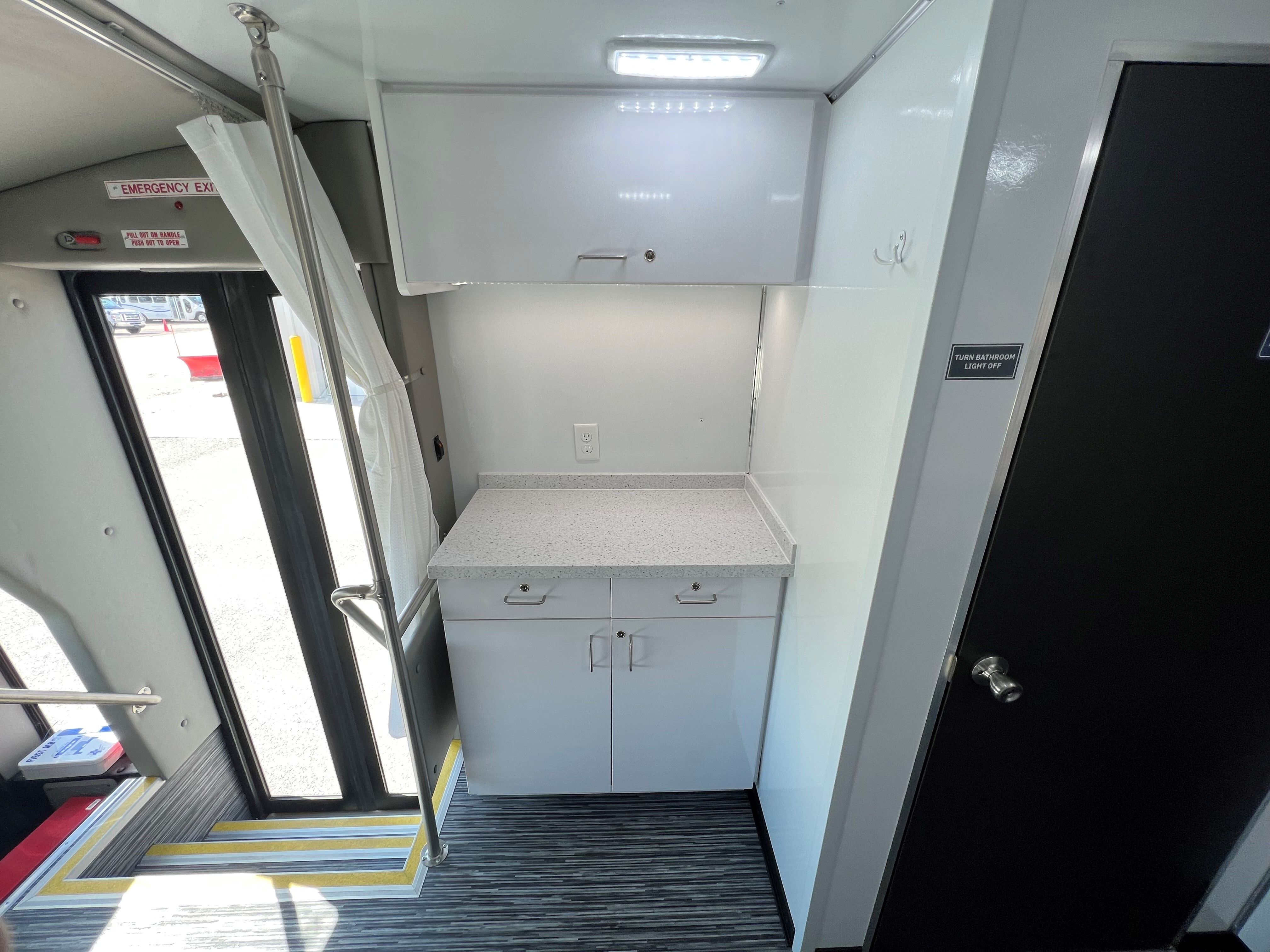

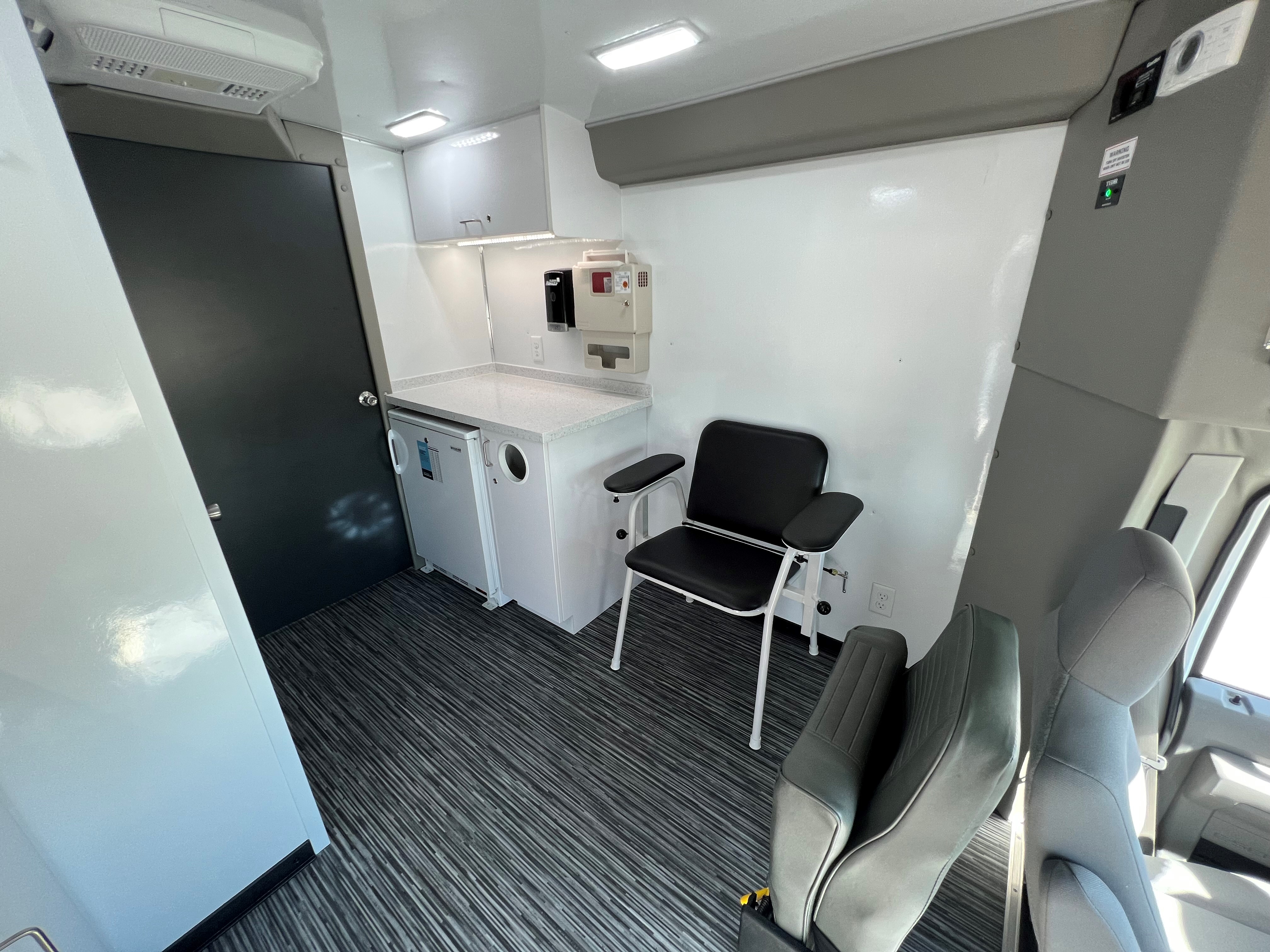

• Lab Area Countertop w/Bank of Drawers & Medical Refrigerator
• Physicians Upper and Lower Cabinets with Corian Countertop
• Check‐In Seat
• Restroom with Sink and Tanks
• Waiting Room Bench

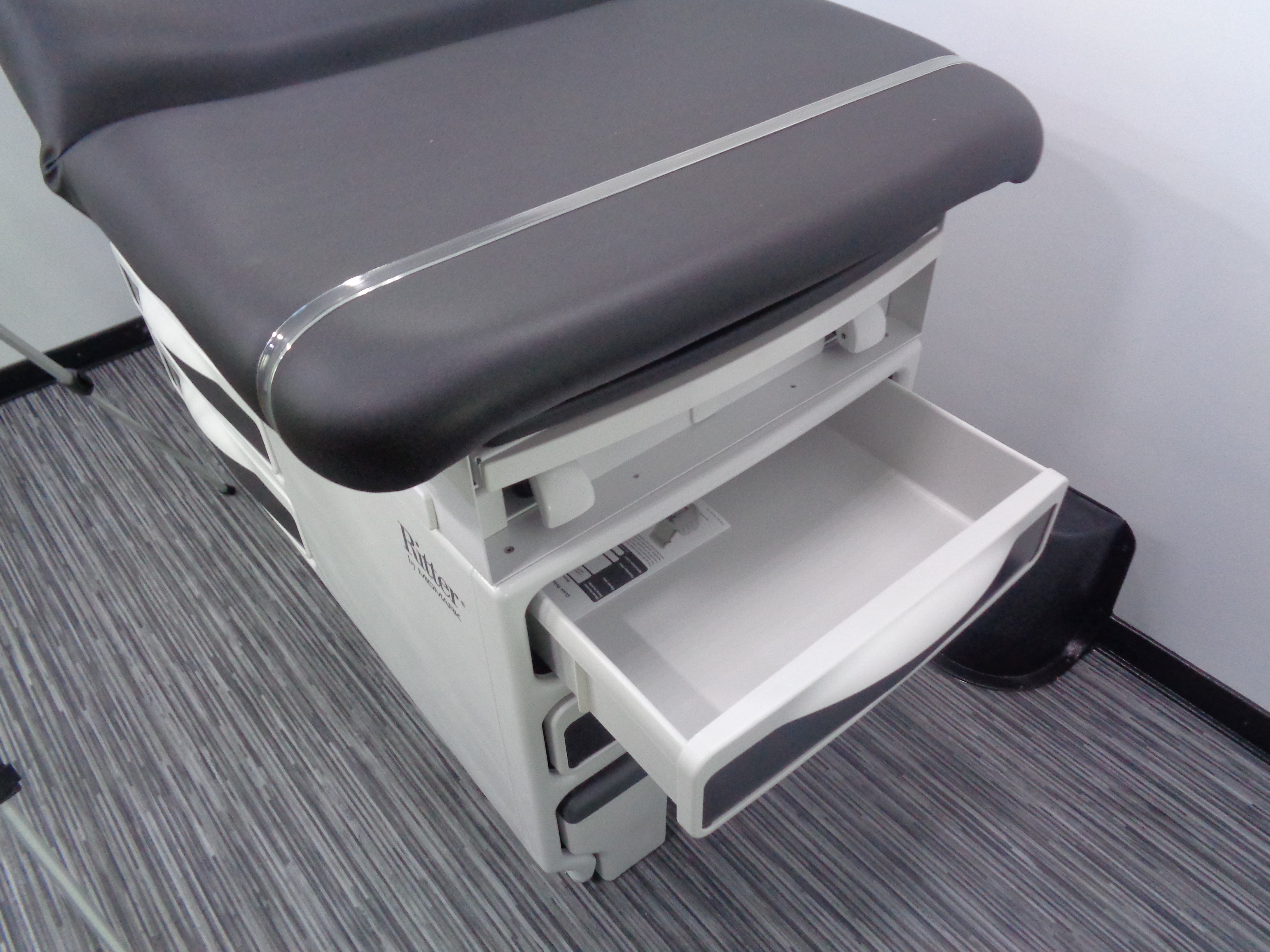

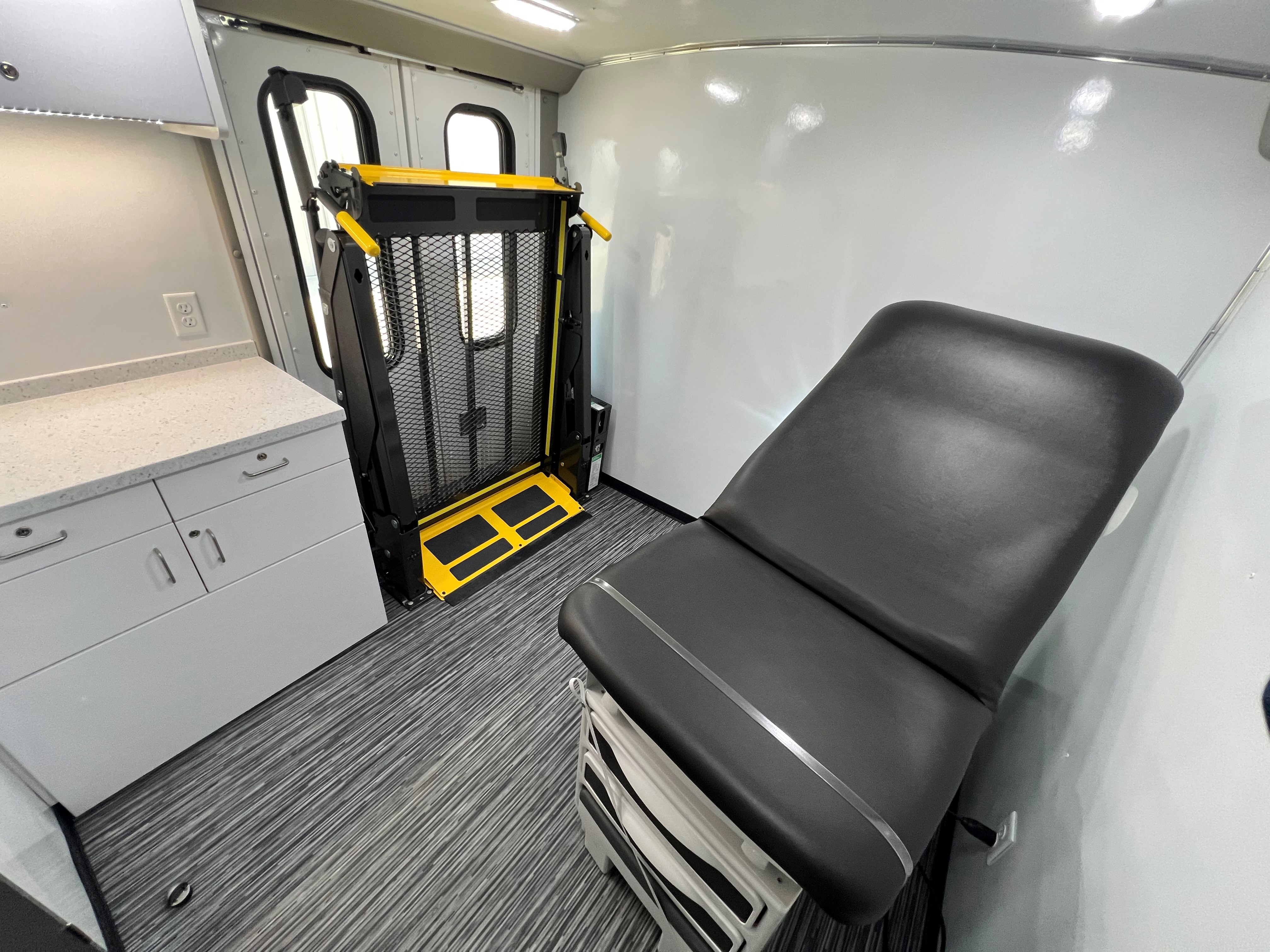

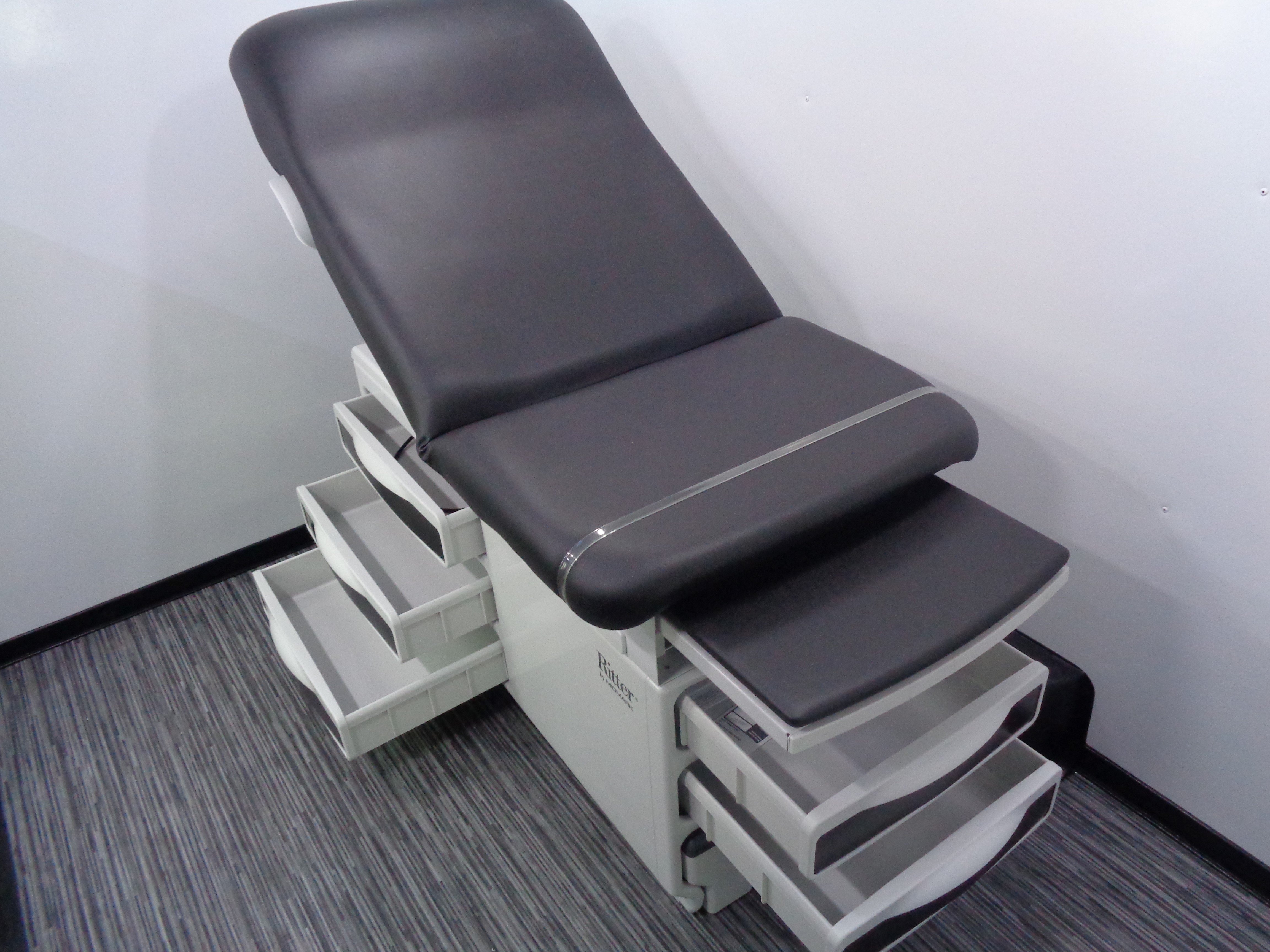

• Ritter 204 Exam Table with Stirrups

Paratransit Equipment

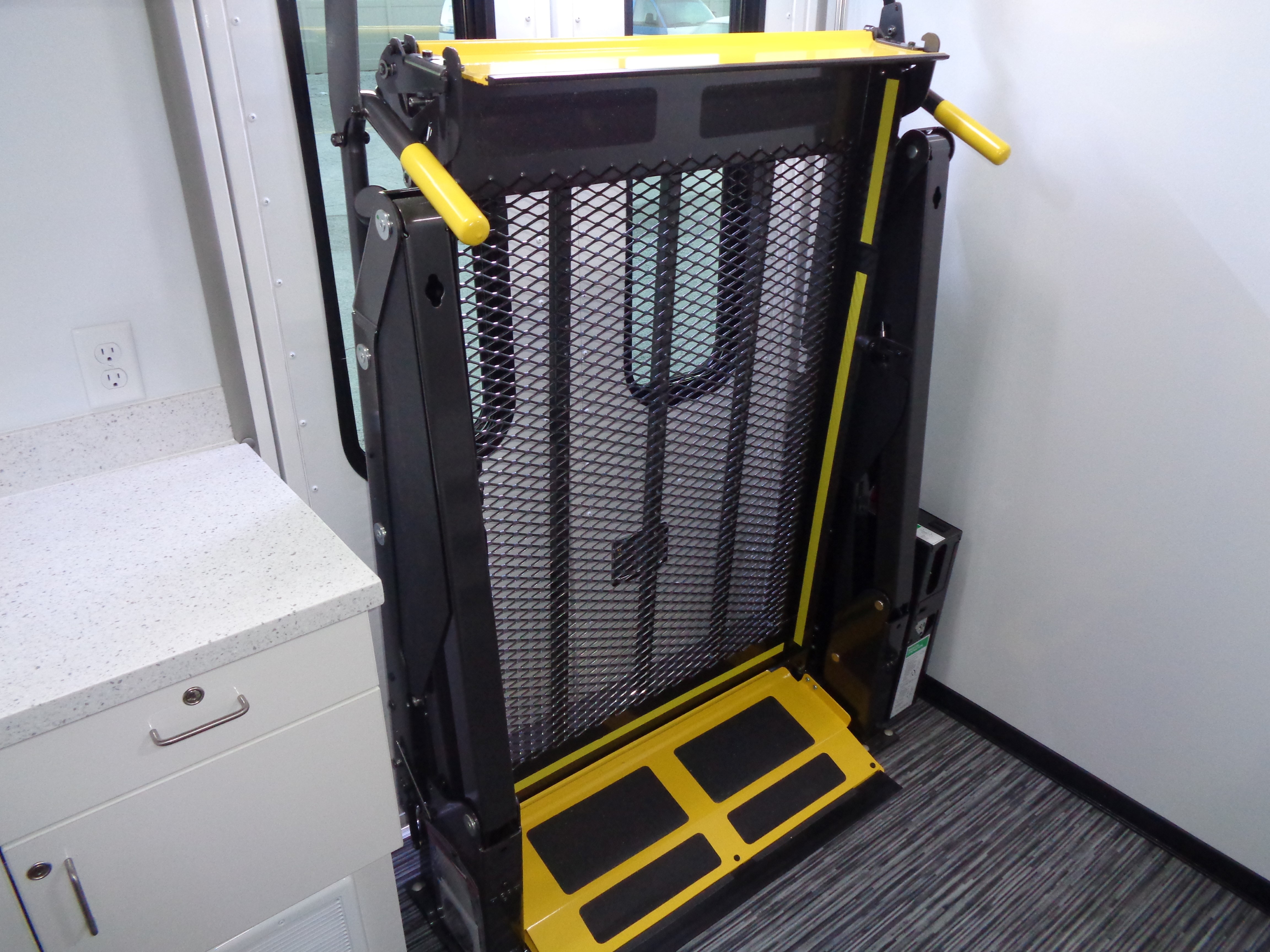

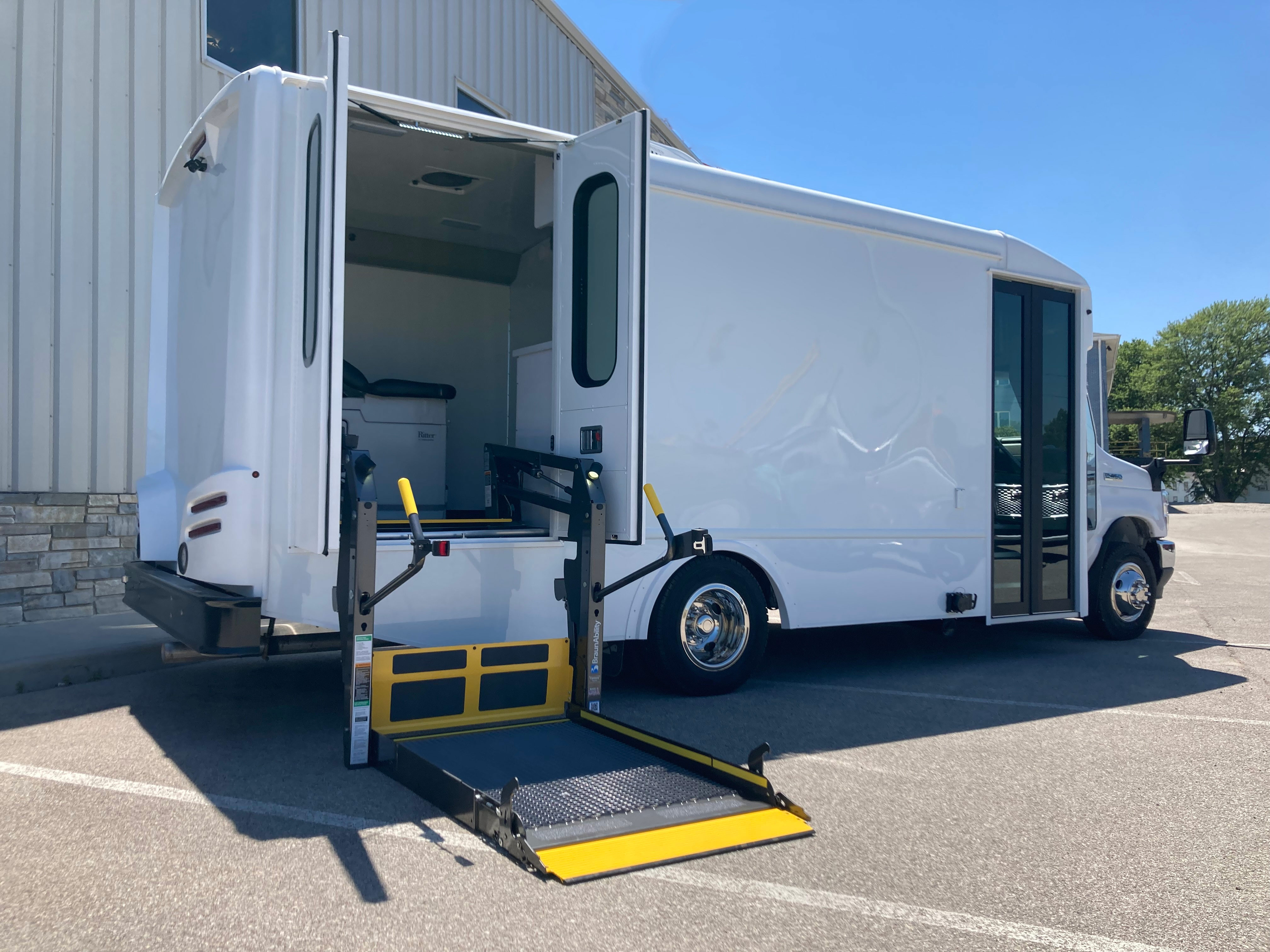

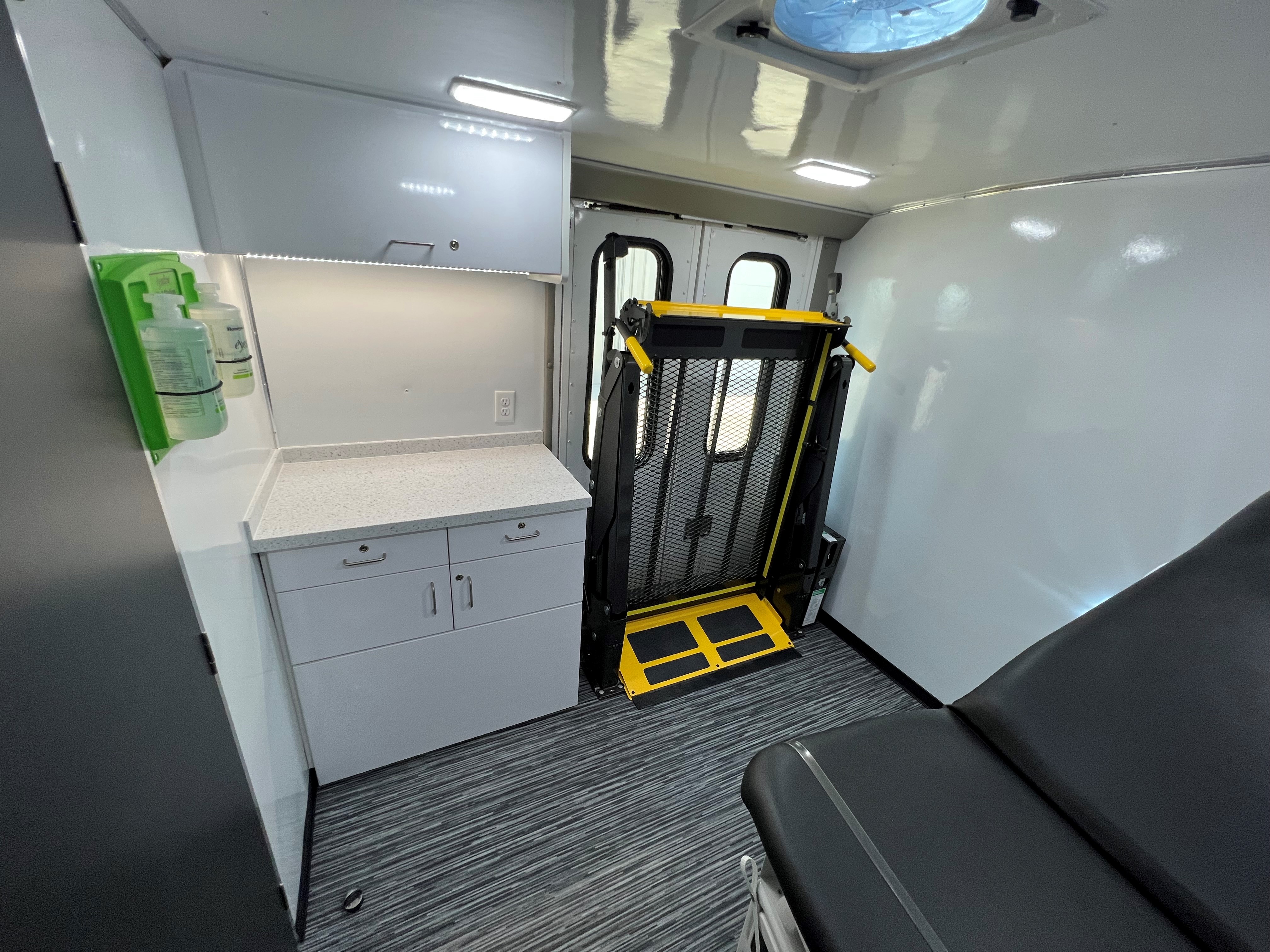

• Braun NCL1000IB3454 1,000# Lift
• Wheelchair Lift Belt, (No Charge)
• Double W/C Lift Door ‐ Deluxe
