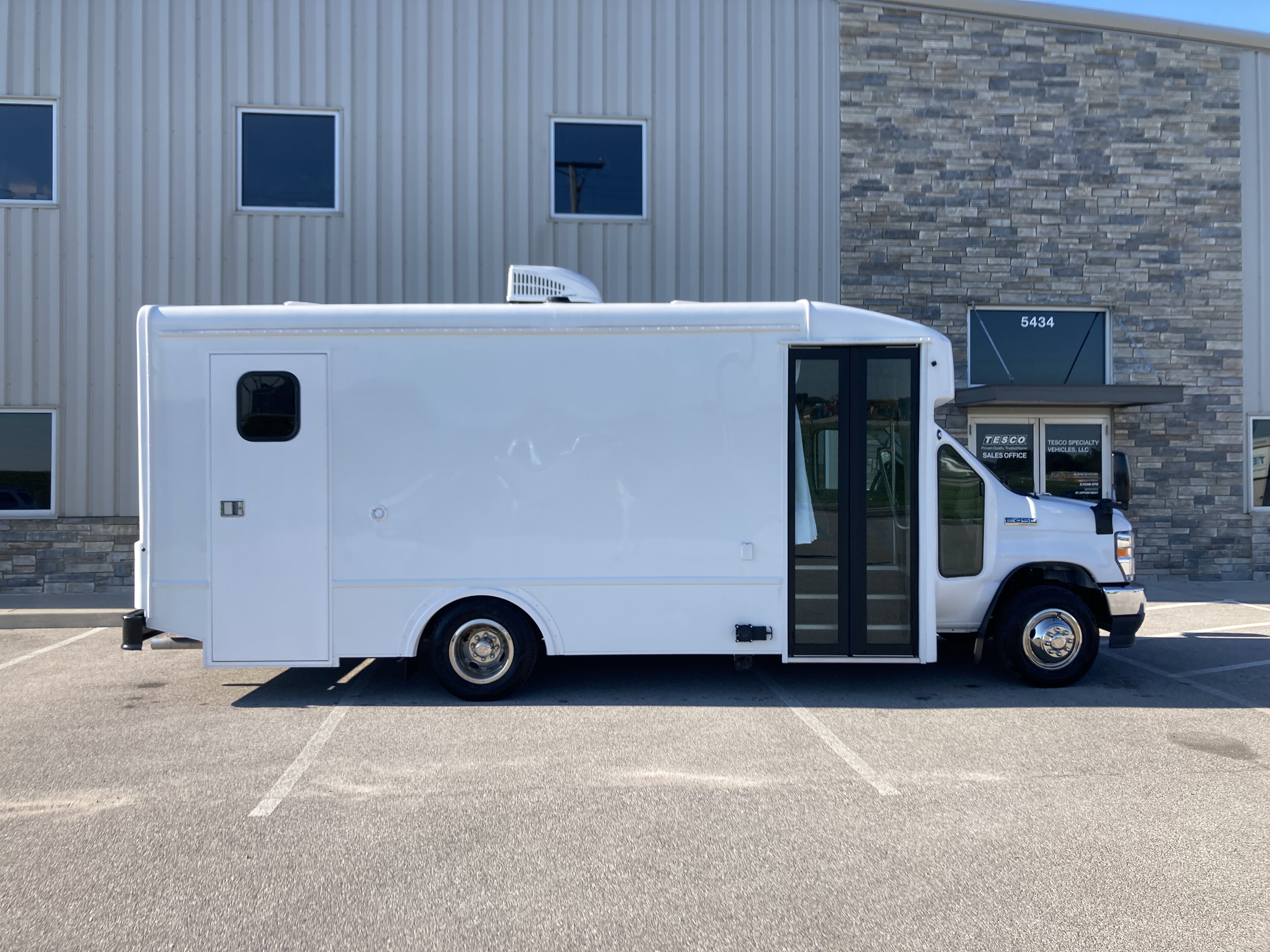

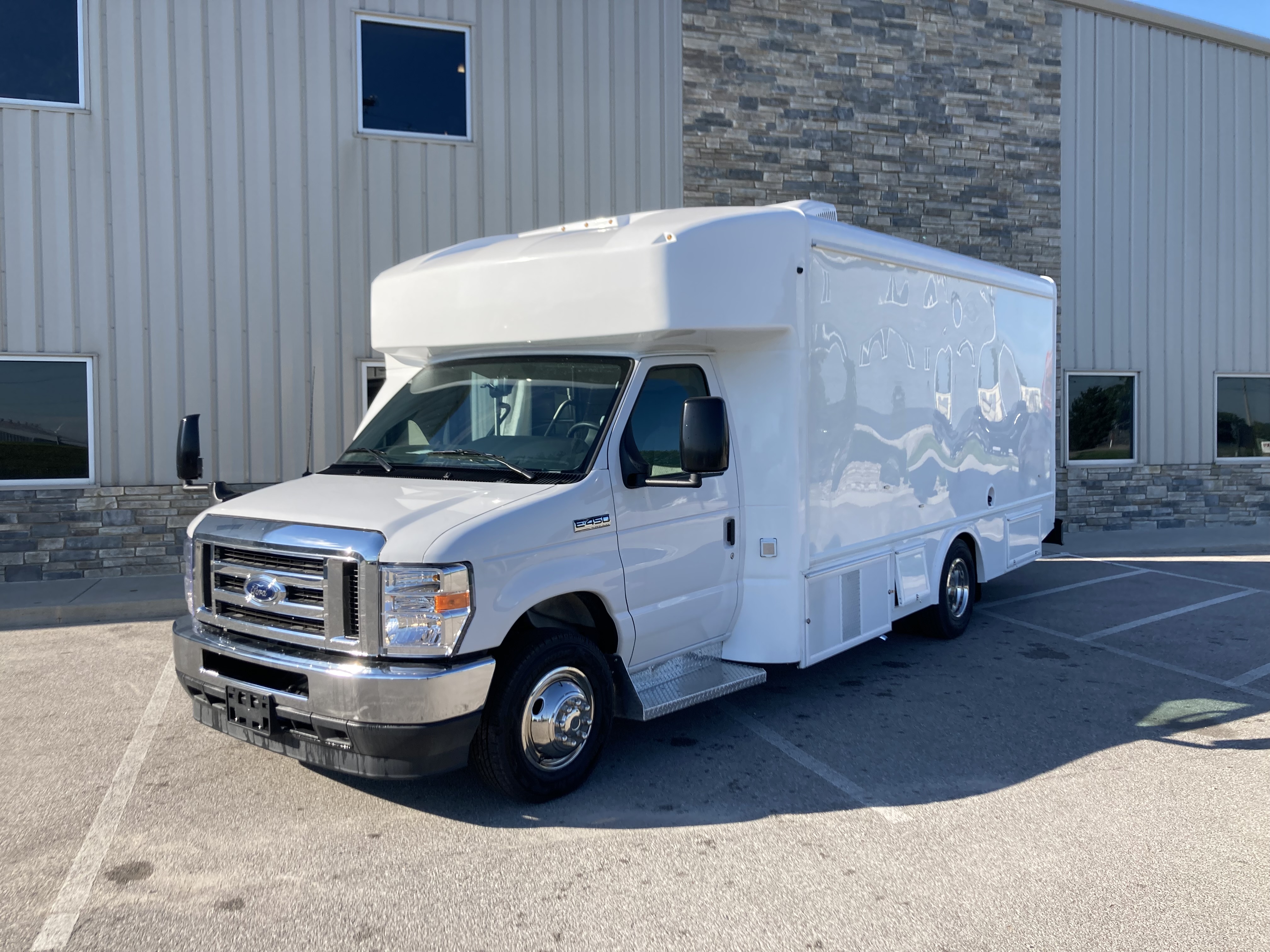

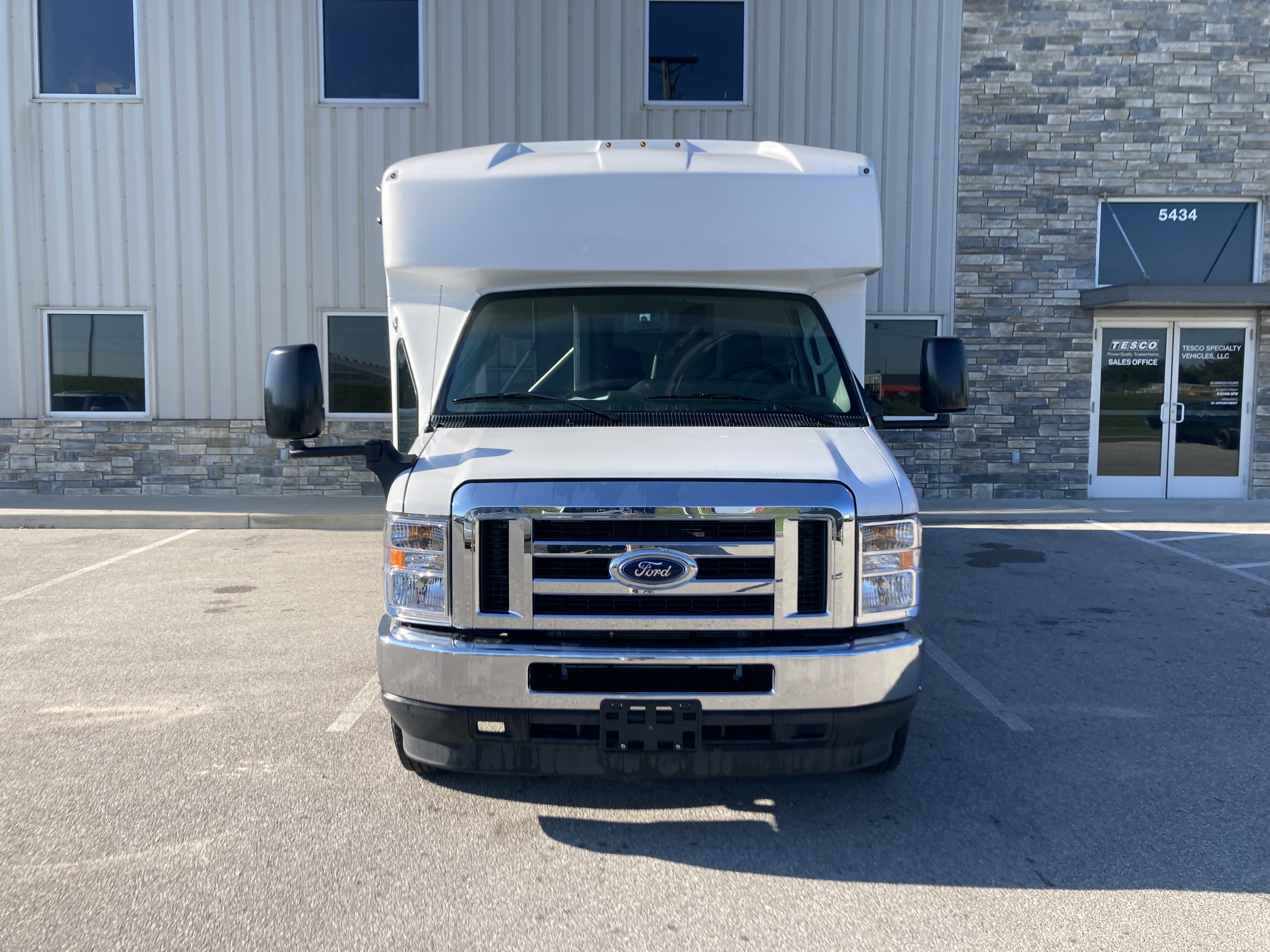

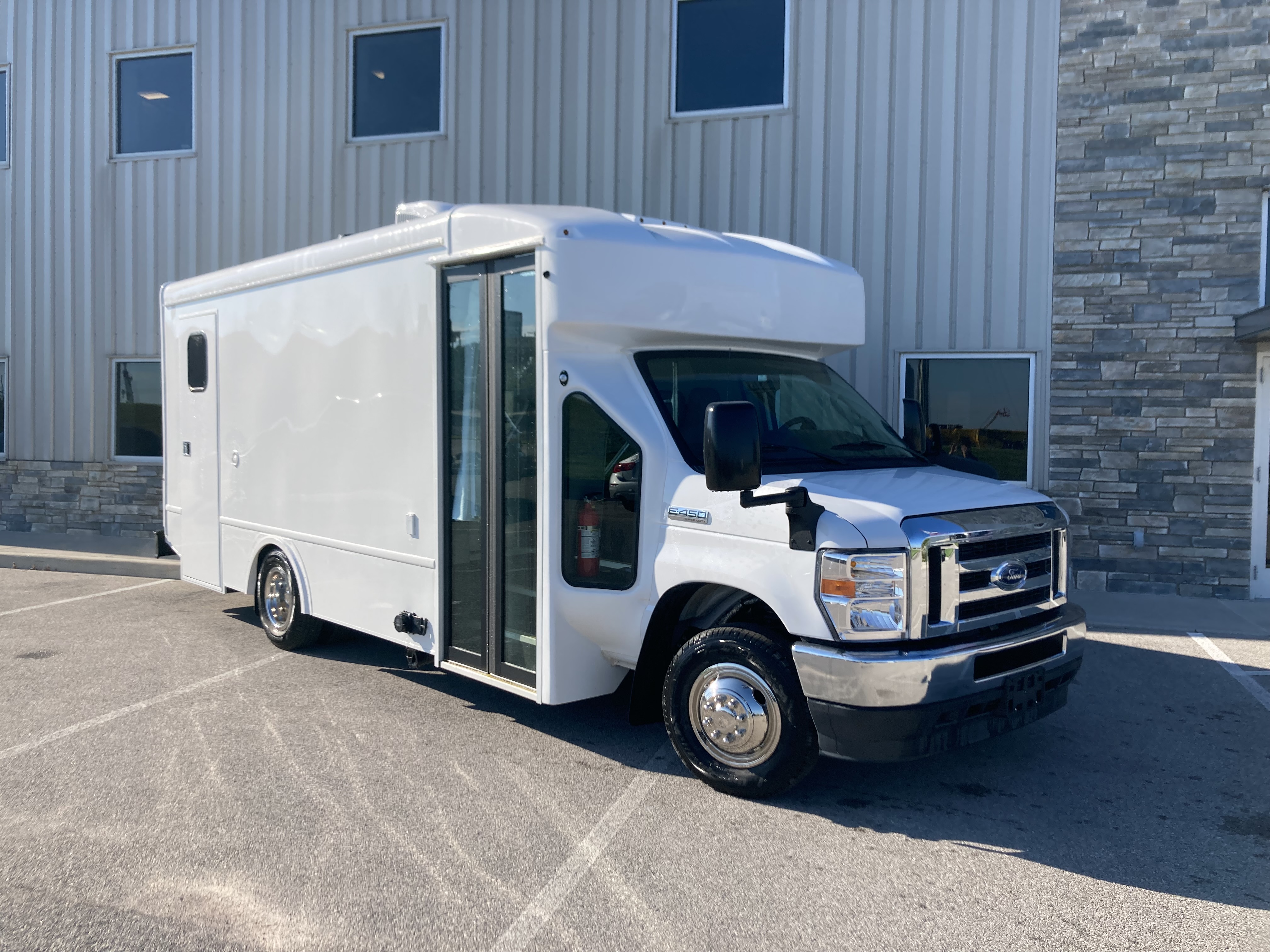

Exam Room and Blood Draw Station Mobile Health Vehicle

Vehicle Summary:

Group: C
Total Length: 25'
Chassis: Ford E450
Capacity: 2 Pass. & Driver
GVWR: 14,500#
Body: Mobile Medical Clinic
Engine: 7.3L Gas
Sell Price: Call

360° Tour:

Vehicle Description:

Standard Chassis Equipment
  • Ford E‐450 7.3L V8 Gas Engine
  • 14,500 GVWR
  • 6 Speed Automatic Transmission
  • 225/75RX16E Tires
  • 50 State Emissions
  • Cruise Control
  • Dual Batteries
  • 55 Gallon Fuel Tank
  • Daytime Running Lights

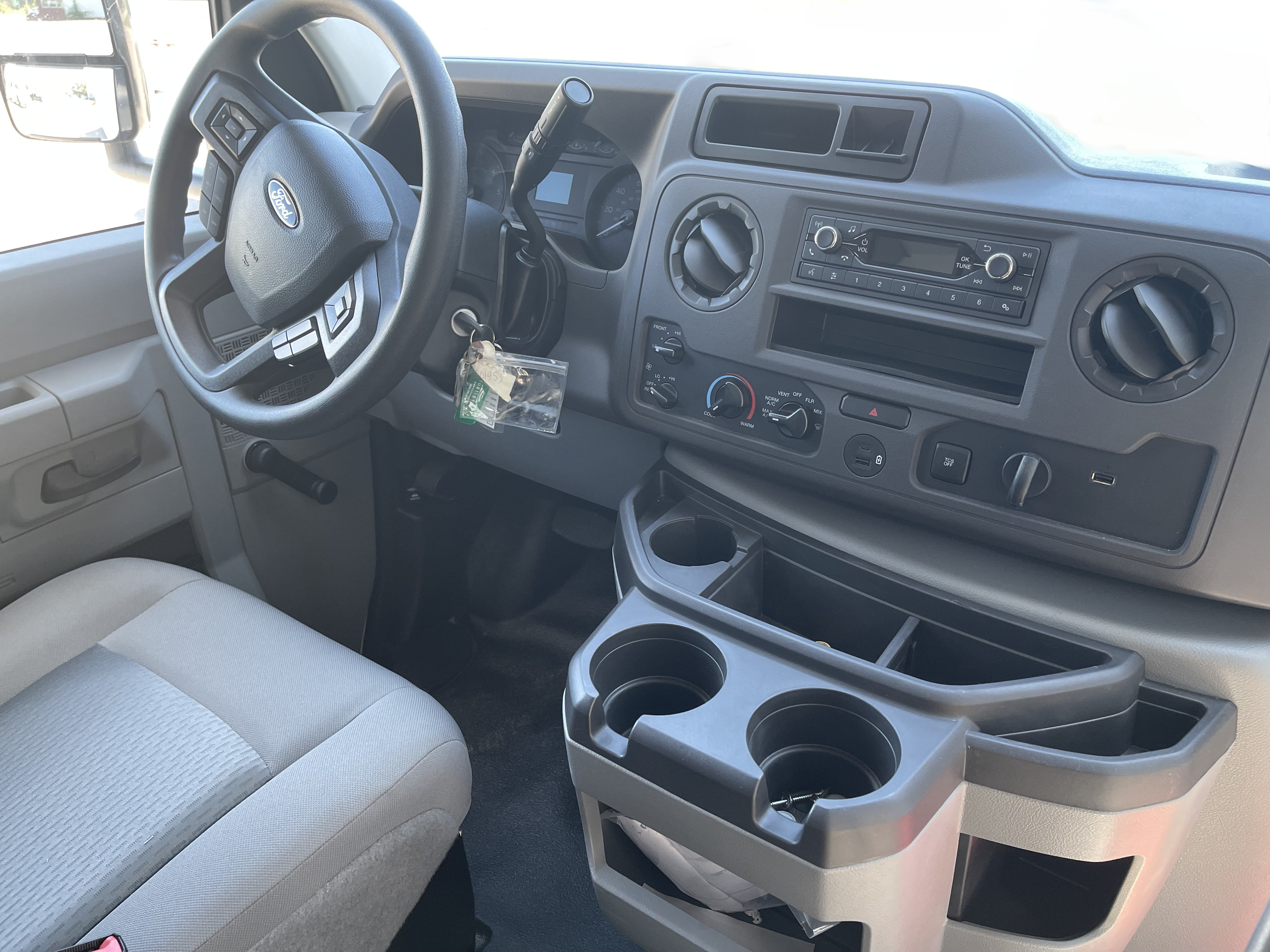

  • AM/FM Clock Radio w/4 Speakers
Standard Body Equipment
  • Welded Tubular Steel Cage
  • Welded Perimeter Steel Floor Frame Supported by Welded Crossmembers
  • Steel Wheel Well Plates
  • Drive Shaft Guards
  • Rear Mud Flaps
  • Steel Cage Primered w/ Rust Inhibitor
  • Underbody Foam Sealed and Undercoated
  • 5/8" AdvanTech Subfloor
  • Fiberglass Front & Rear Cowls & Fiberglass Composite Exterior Sidewalls
  • One‐Piece Pre‐Molded Fiberglass Roof
  • Lower Body Skirts
  • 1' Polystyrene Foam Board Insulation
  • Entrance Door ‐ Aluminum, Electric Bi‐Fold 29" w/Tinted Glass
  • Tinted A‐Panel Window in Cab
  • LED Upper Running /Clearance Lights per FMVSS 108 (5 Amber & 5 Red)
  • LED/ Reflective Amber Lower Midship Side Marker Lights (2)
  • LED Stop/Tail/Turn Lights Inc LED/Reflective Red Rear Side Marker Lights (2)
  • Red Reflectors (2 at Rear)
  • Backup Lights & LED License Plate Lights

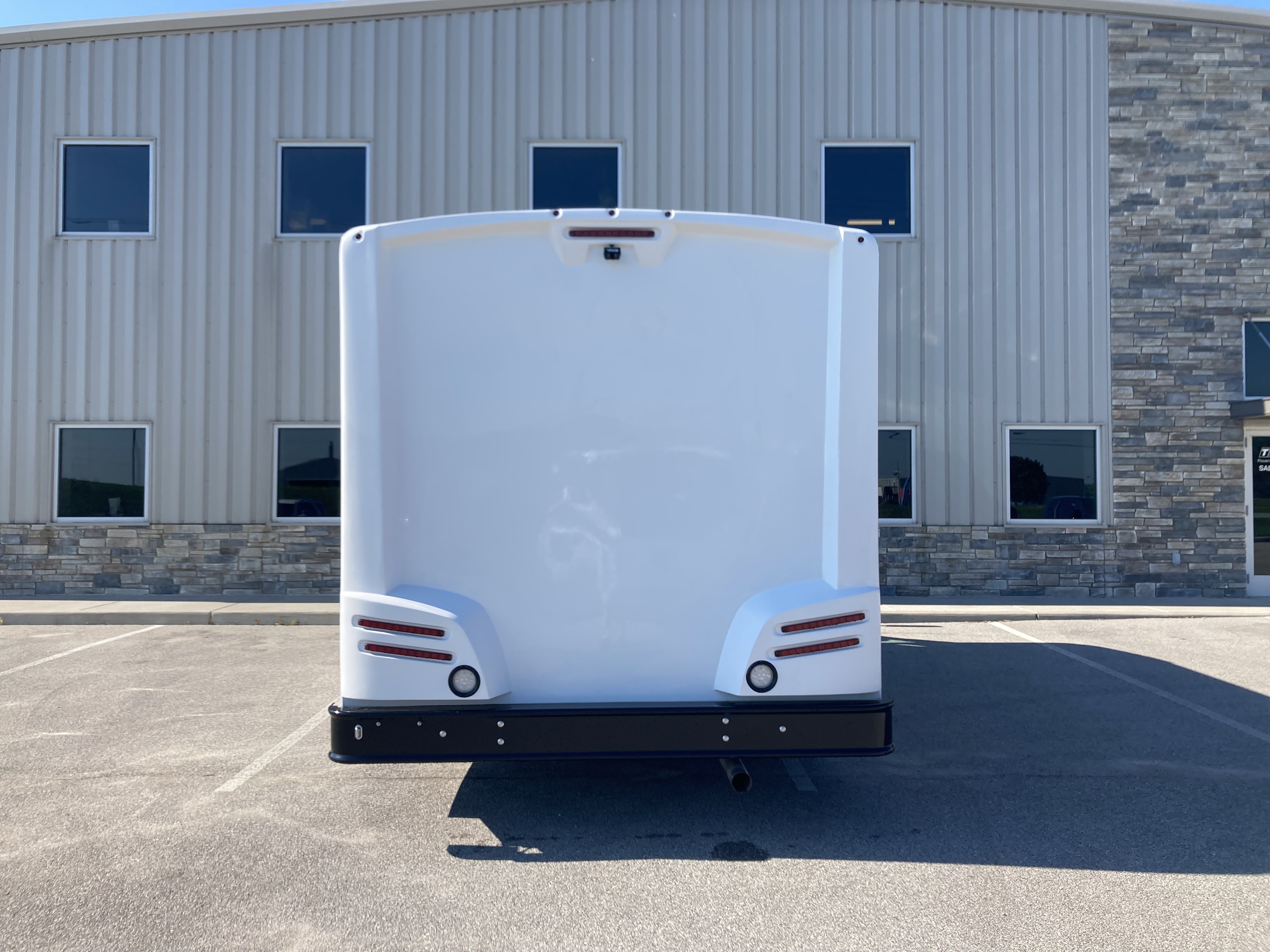

  • Heavy‐Duty Steel Powder‐Coated Rear Bumper
  • Velvac Exterior Mirrors (L & R)
  • 76" Interior Height
  • Flat Floor
  • Durable Bright White Reinforced Fiberglass Ceiling & Sidewalls
  • State of the Art Electrical Panel w/ Printed Circuity
  • Color‐Coded High Temp GXL Wiring Harness w/Weatherproof Connectors
  • Convenience Lighting in Cab & Stepwell
Climate Control
  • (2) Roof Vent ‐ Fantastic 400 Series, Fan 14"
  • Heat Coil ‐ Add Heat Coil to Each A/C System in the Unit
Doors/Windows/Mirrors

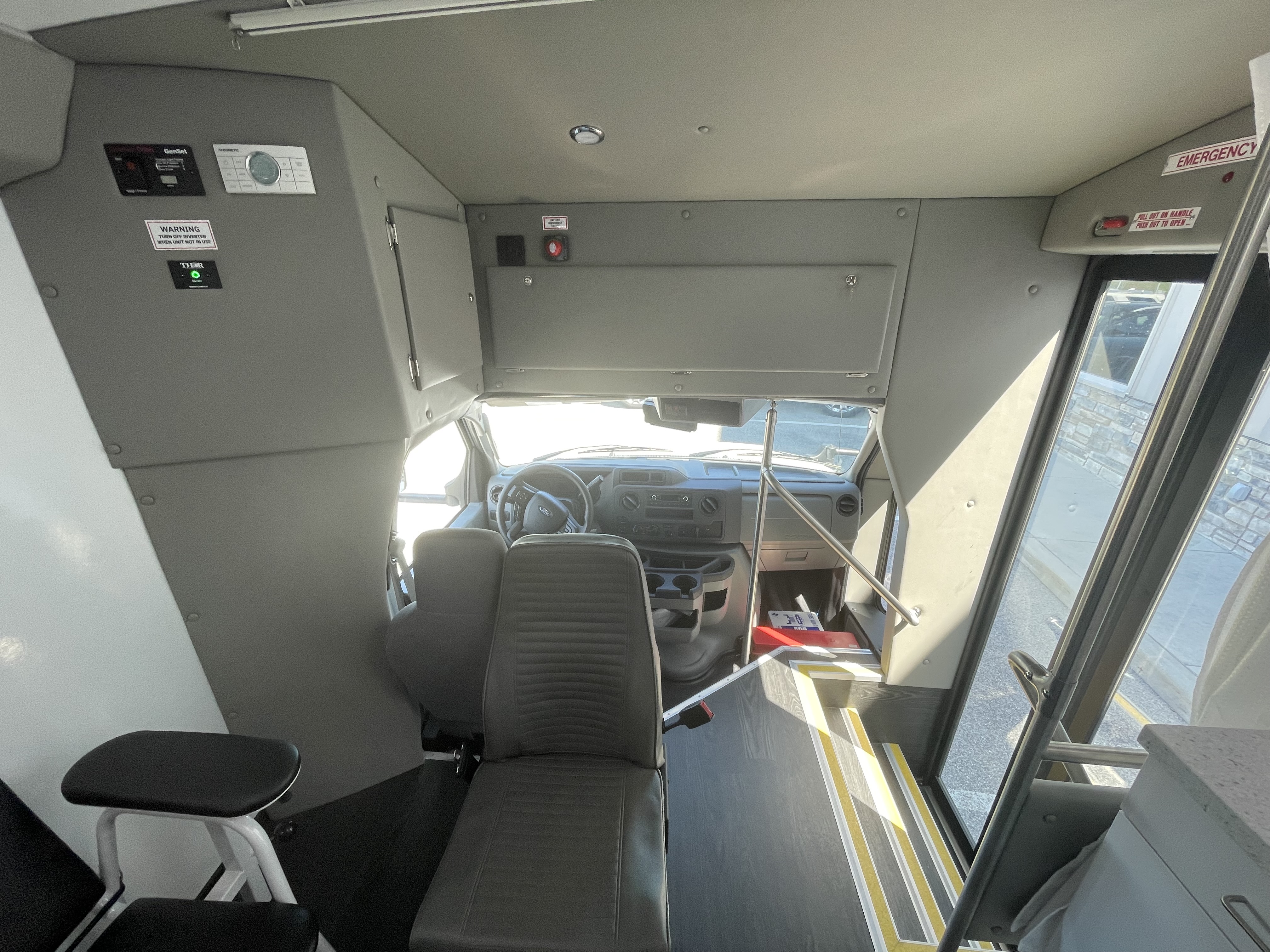

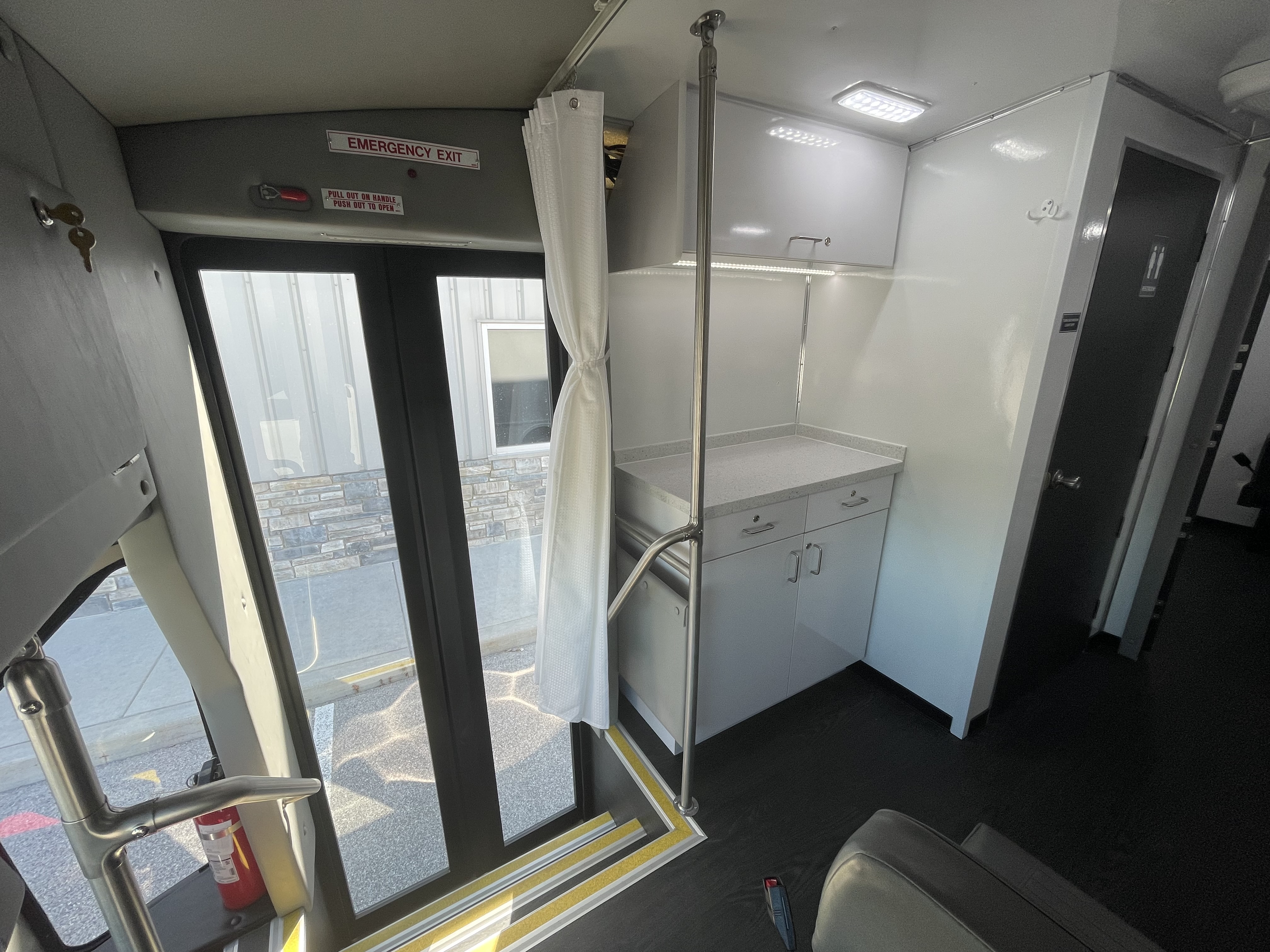

  • Entrance Door, Electric ‐ Built In Cab, 29" (Standard)
Electrical
  • 12v Wire Run to Power Fridge
  • Terra Transit Pullout Battery Tray (N/A Transit Chassis)
  • Pull 110v 12 Guage SL Cable, Coiled Up to Front Bulkhead Area
  • Replace Standard Dome Lights with 4" x 11" LED Lights
  • (5) Pull 110v 14 Guage SL Cable, Coiled Up to Front Bulkhead Area

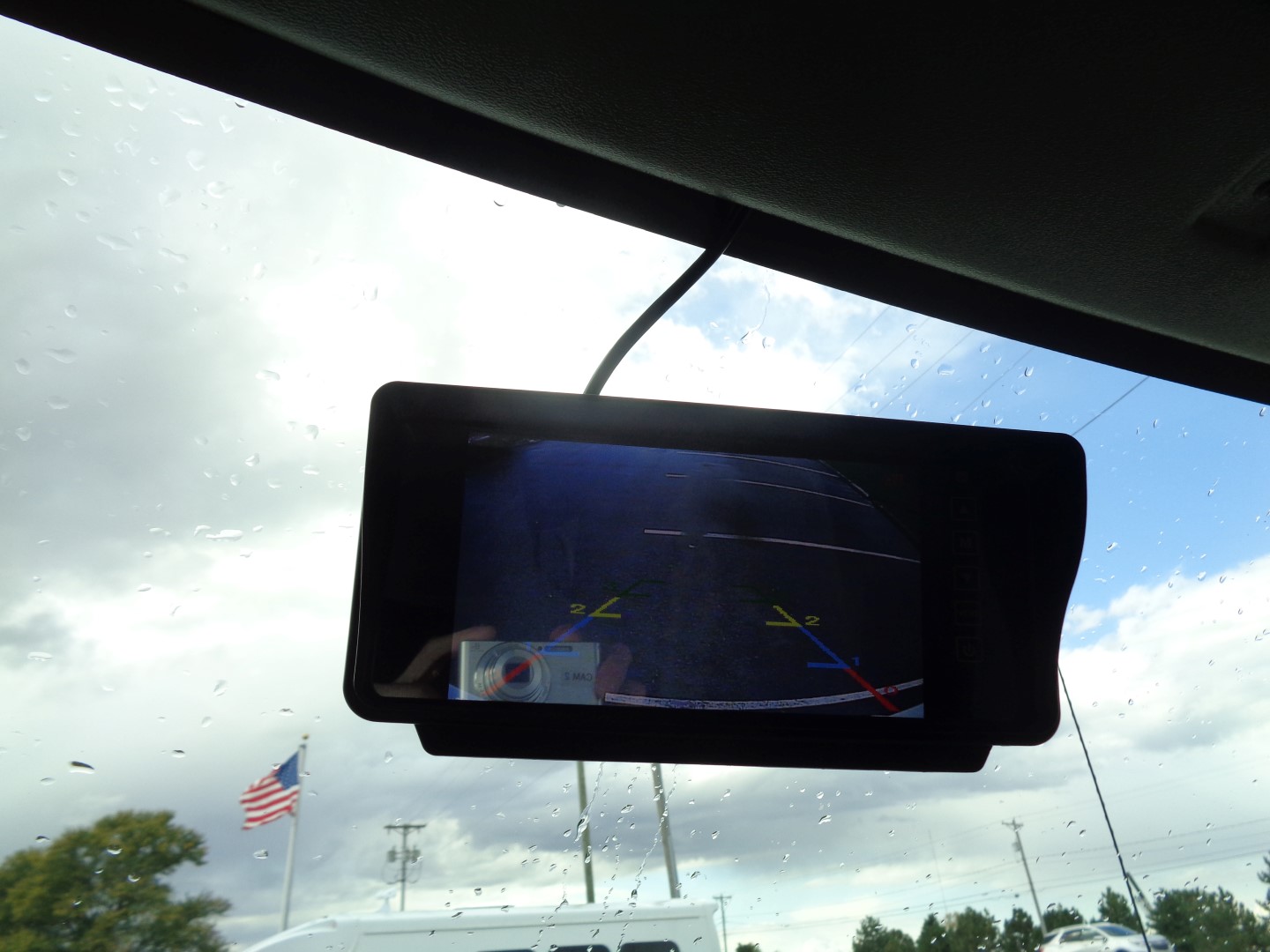

  • RVS Backup Camera ‐ 7" Mirror Monitor
Exam Specific Electrical
  • Breaker Box/Breakers
  • 110v Package Includes 5 Outlets ‐ 10 Plugs

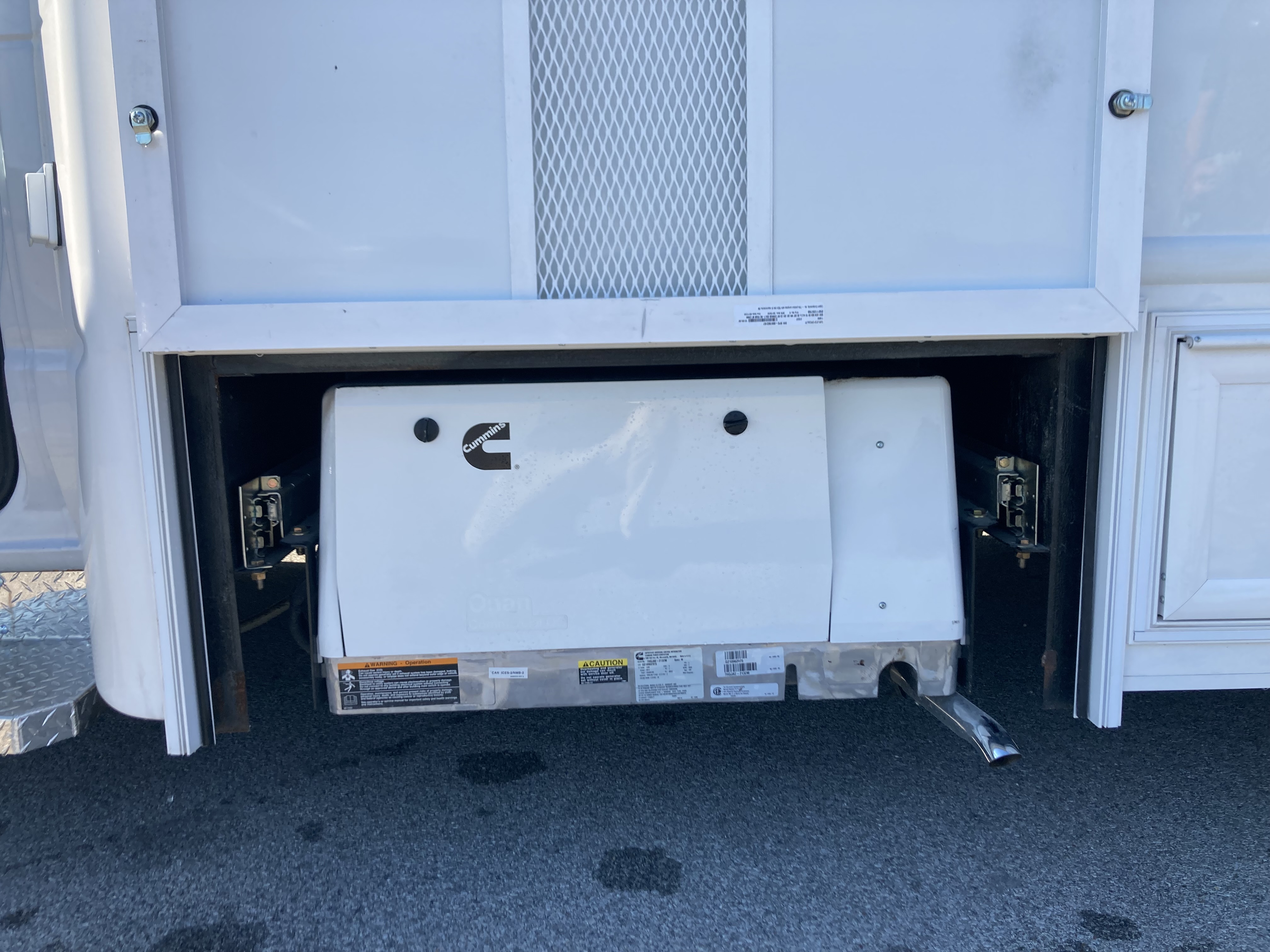

  • Cummins Onan 7.0 Generator Gas Generator
  • 50 Amp Shore Power w/Cord, Inlet on Side of Vehicle for Plug In
  • Power Converter 50 Amp
  • Transfer Switch
Exterior
  • Generator Prep, Skirt Door 43.25"W x 20"H
  • Running Board ‐ Wide Diamond Plate (Driver's Side)
  • Exterior Skirt Storage 36"W x 19"D x 14.25"H Box w/Door
Interior
  • Interior Corner Boards (Standard)
  • Gray Vinyl Padded Wall with Door
  • (2) Flip Seat ‐ Featherweight, Single Mid‐Back 17" w/ Lap Belts
  • USR Belt, Single ‐ Per Passenger
  • Additional Steel Strapping/Backer in Sidewall, Curbside for Cabinets
  • Altro Faux Wood Flooring Upgrade (Iron Bamboo)
  • Smooth Fiberglass Interior Sidewalls w/Gray Vinyl Corner Boards
  • Stanchion Pole w/Assist R.H. Entry
  • Bathroom Kit

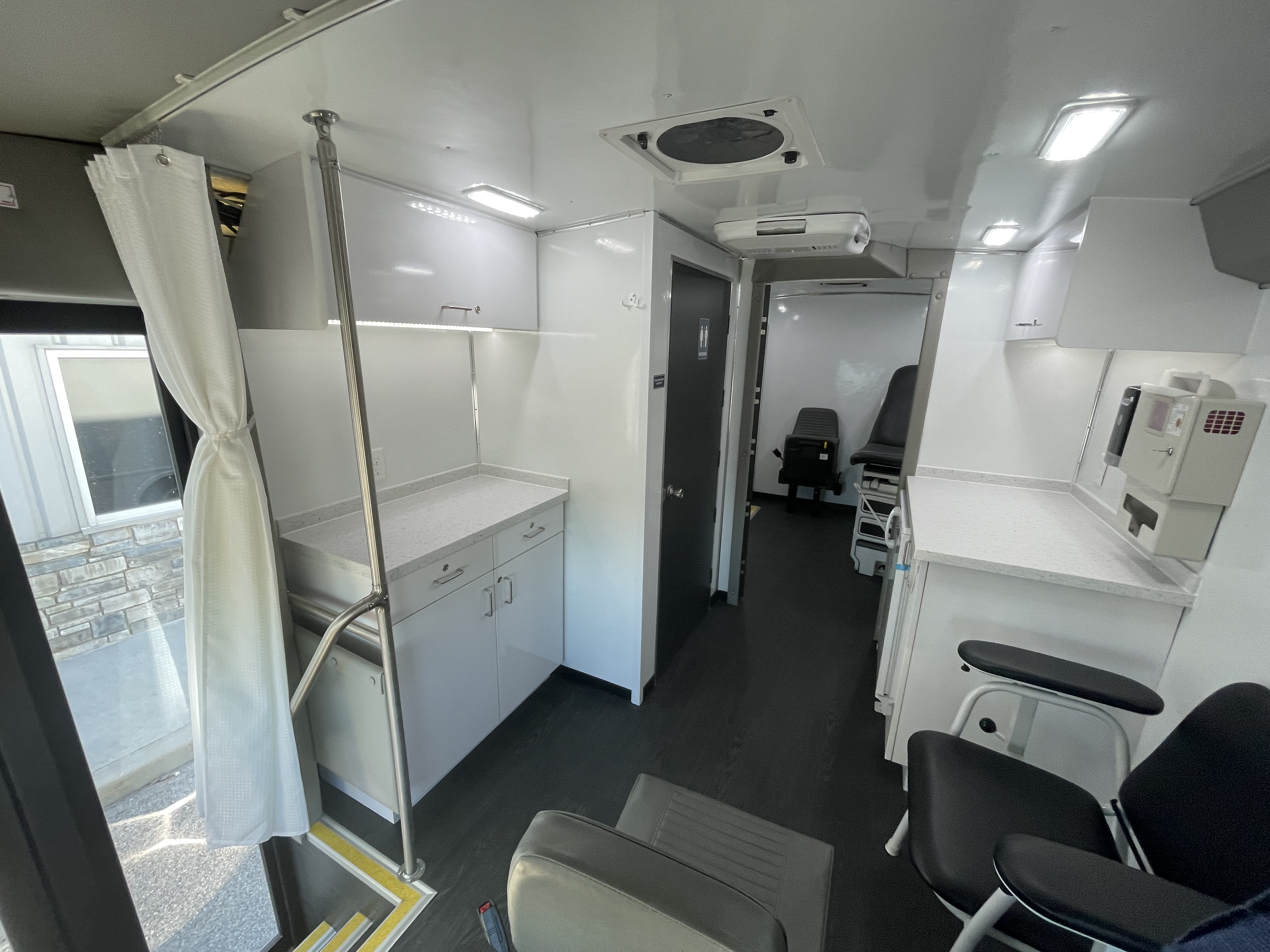

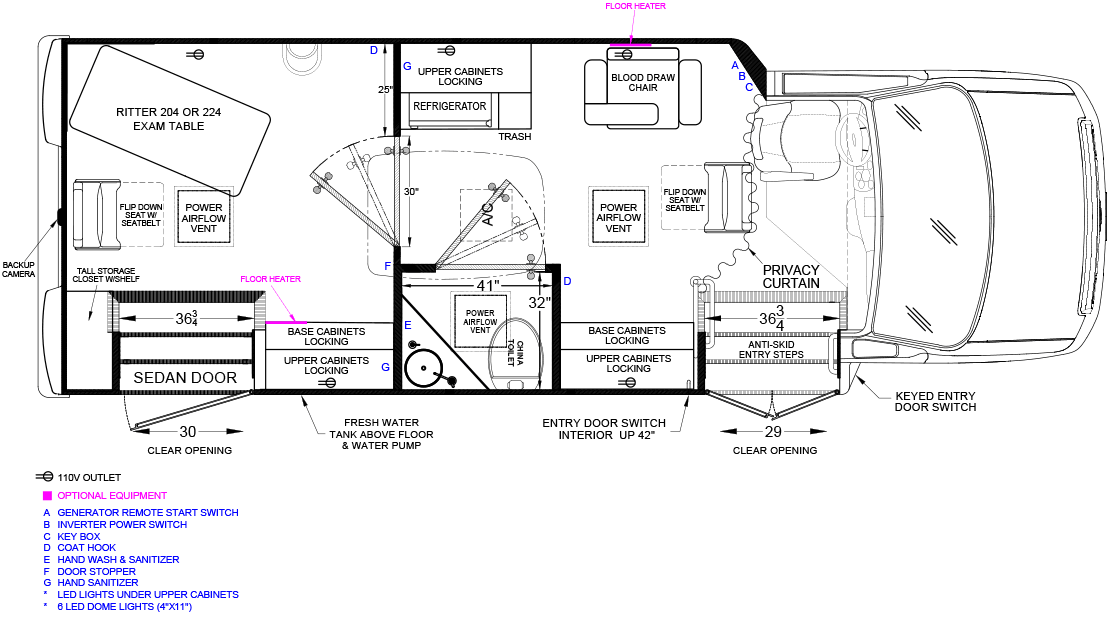

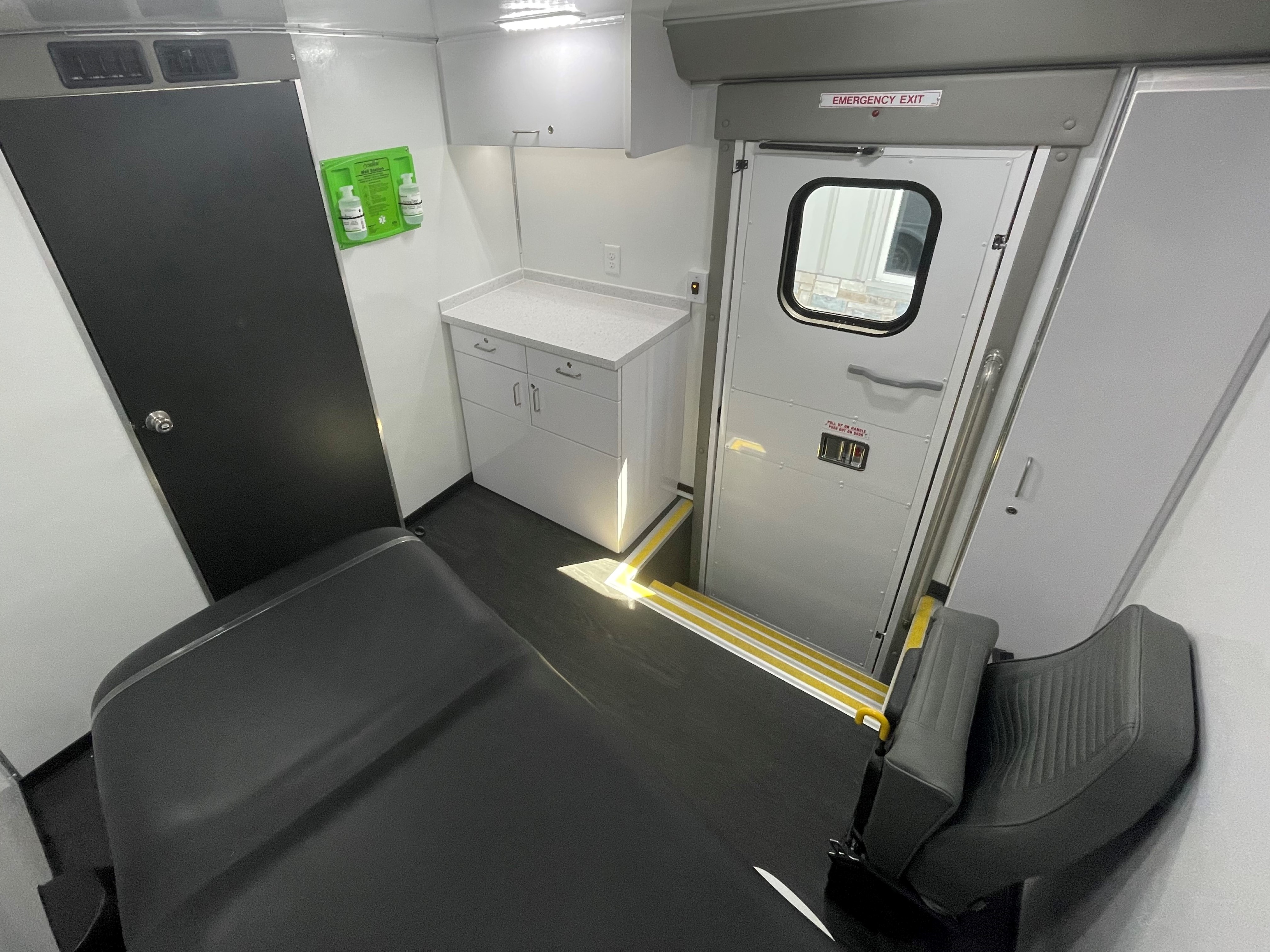

Mobile Clinic Upfit Specifics

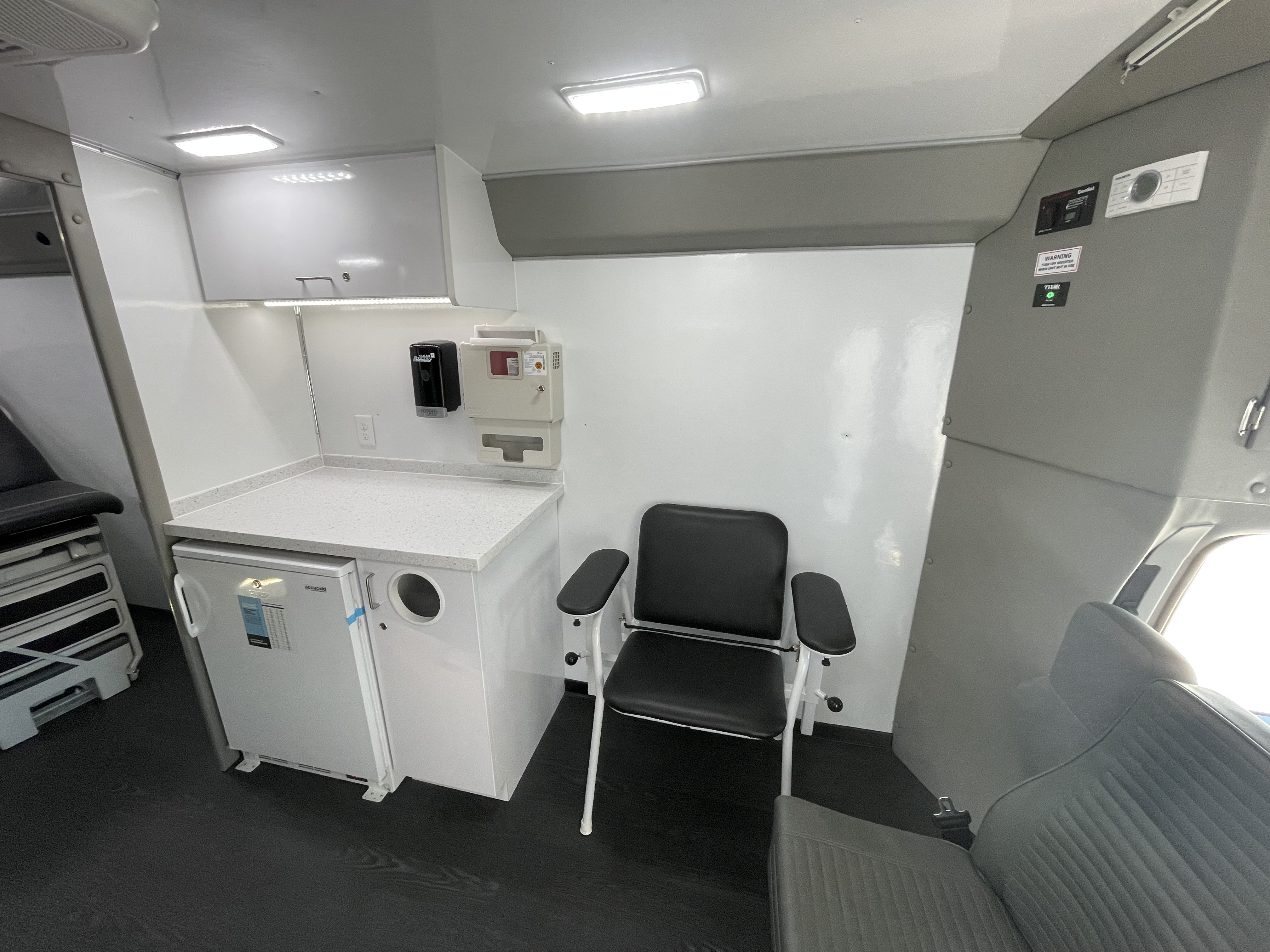

  • Lab Area Countertop w/Bank of Drawers & Medical Refrigerator

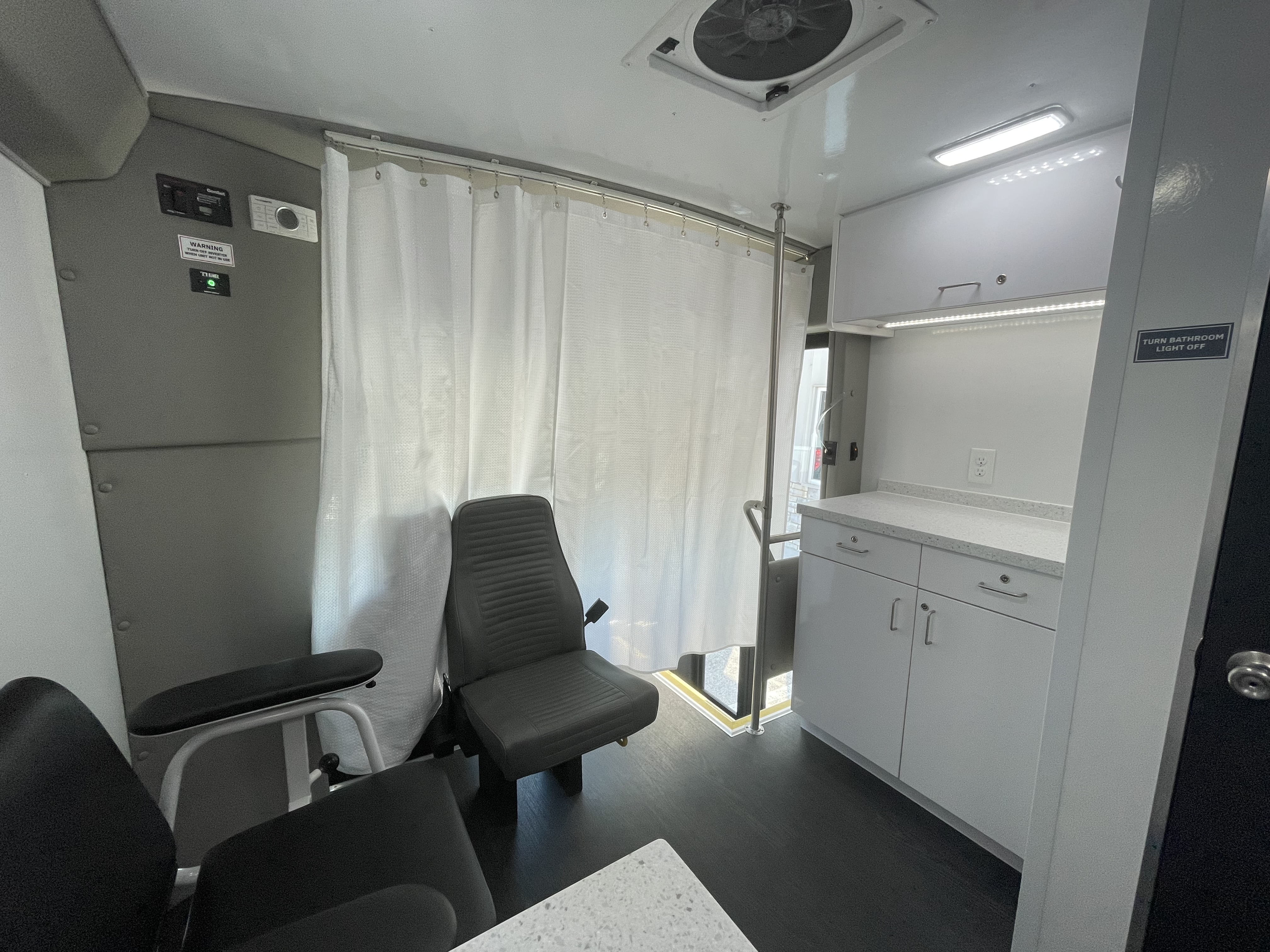

  • Physicians Upper and Lower Cabinets with Corian Countertop

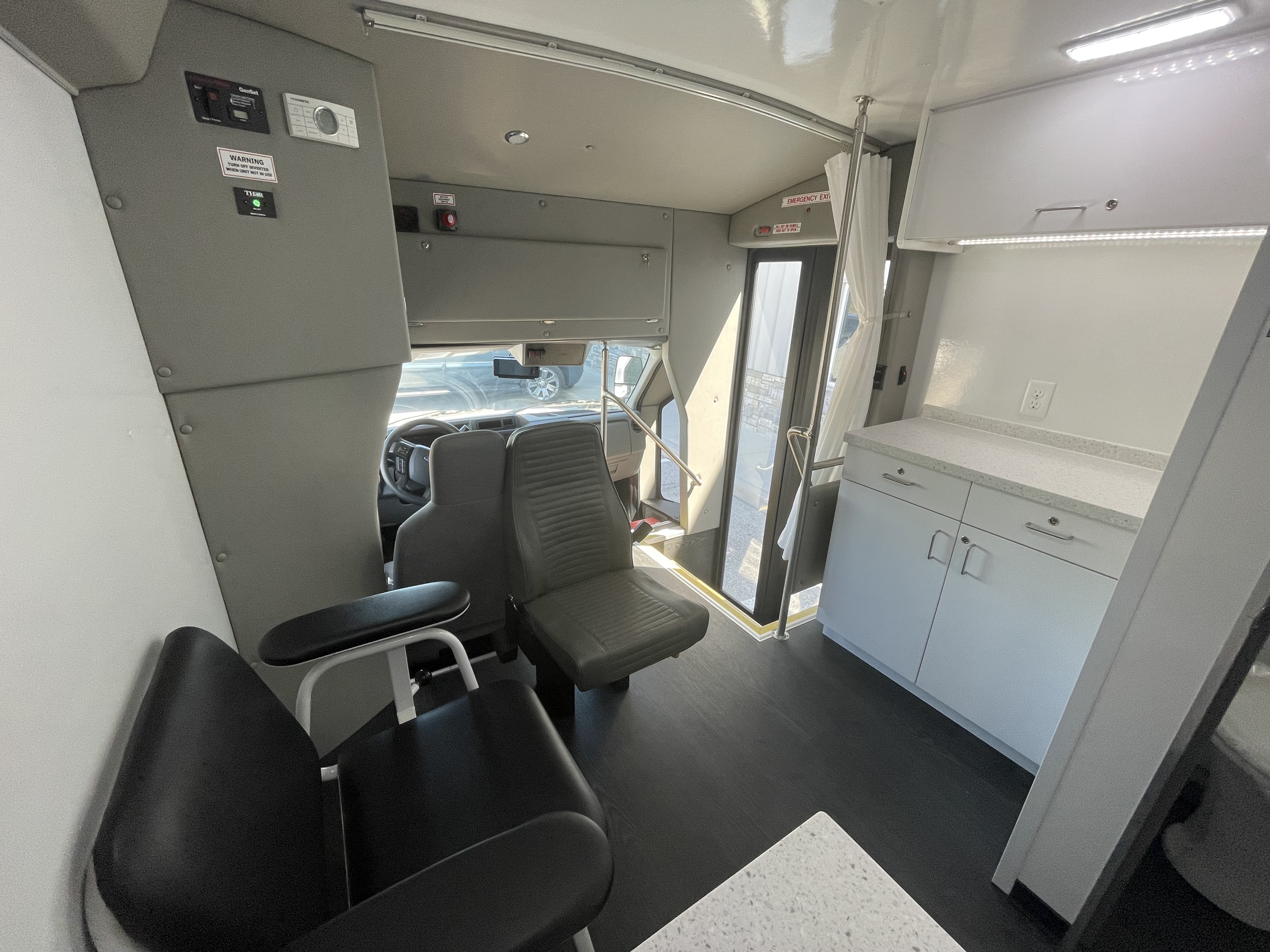

  • Check‐In Seat

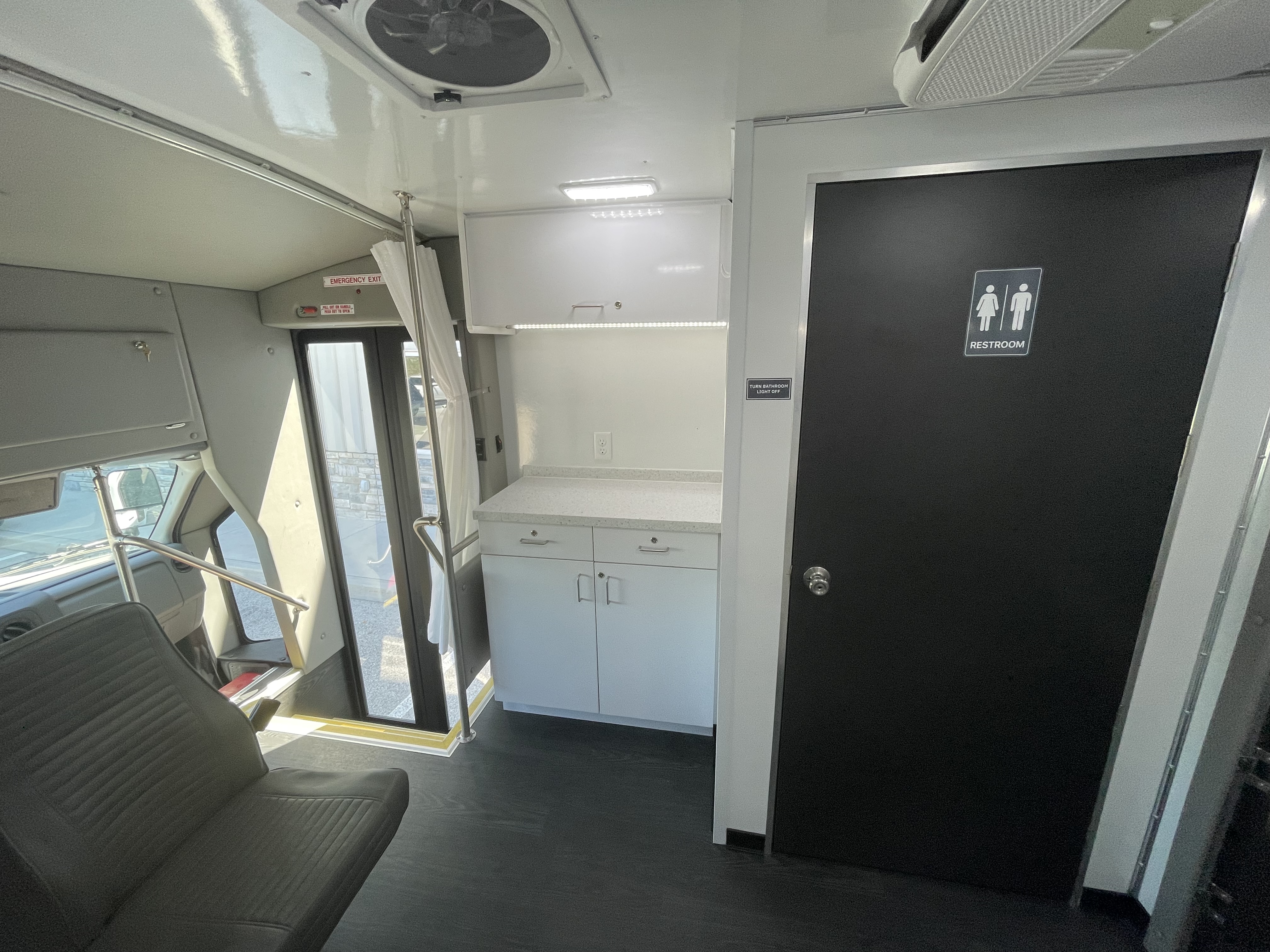

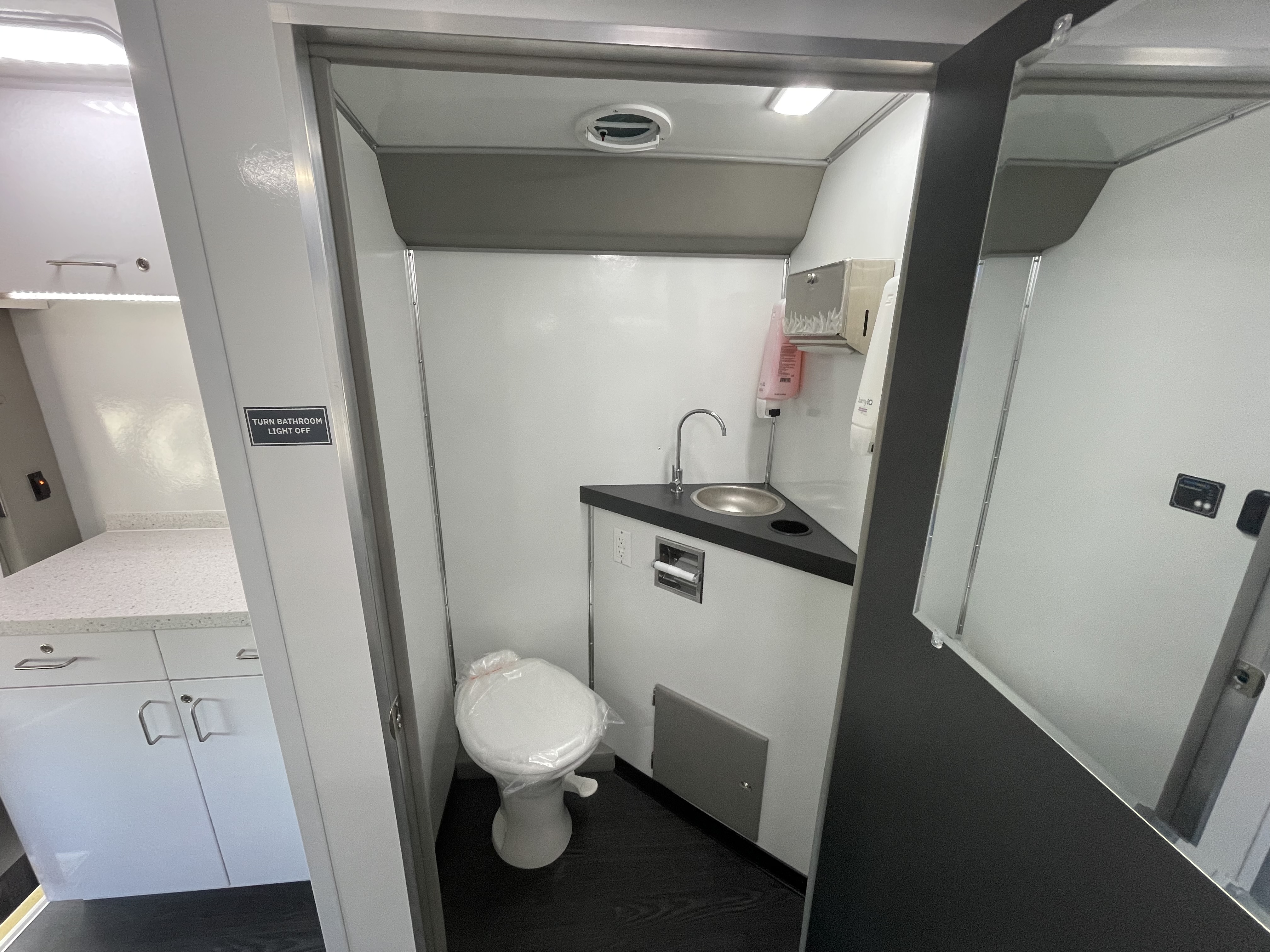

  • Restroom with Sink and Tanks
  • Waiting Room Bench

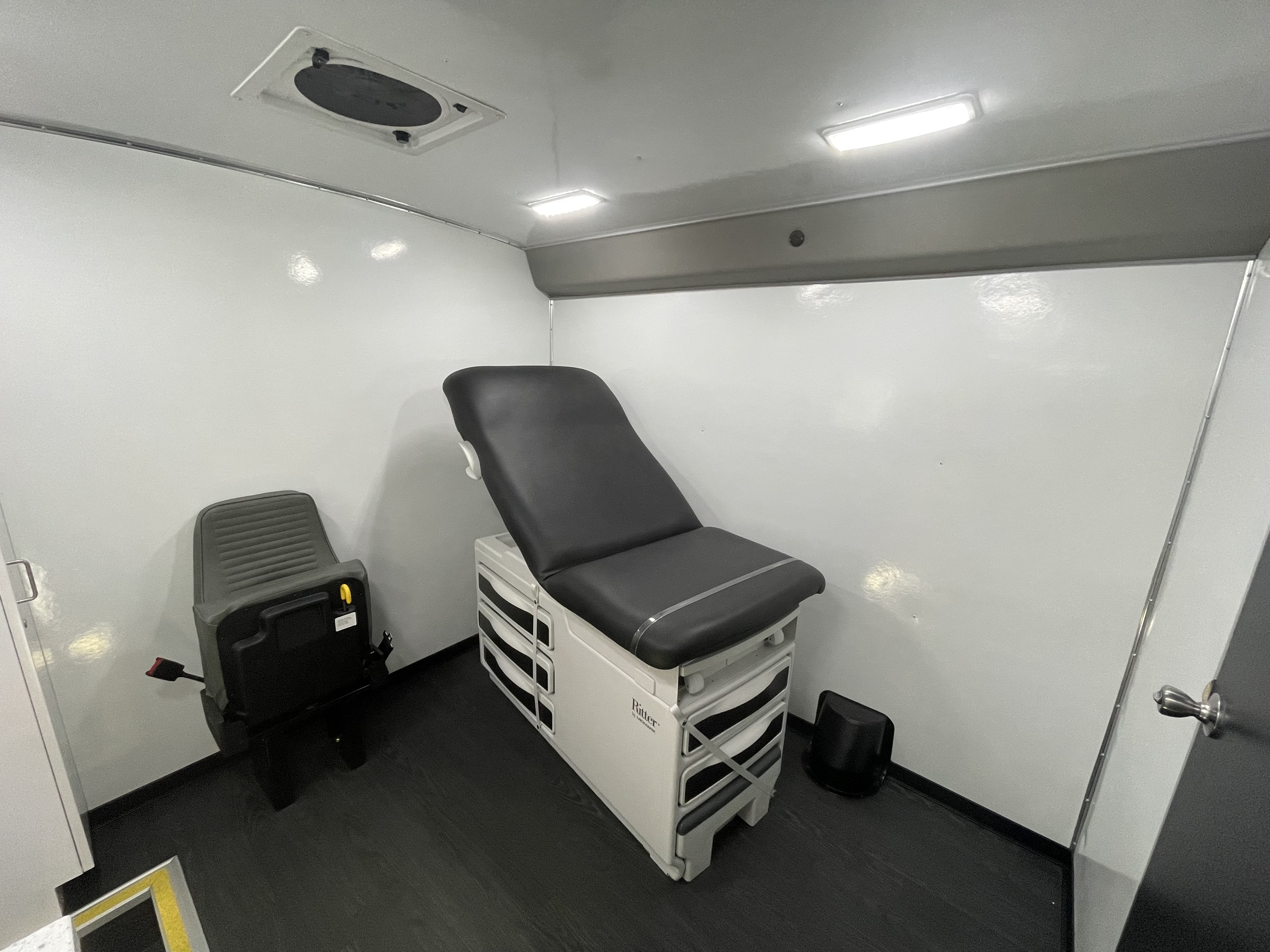

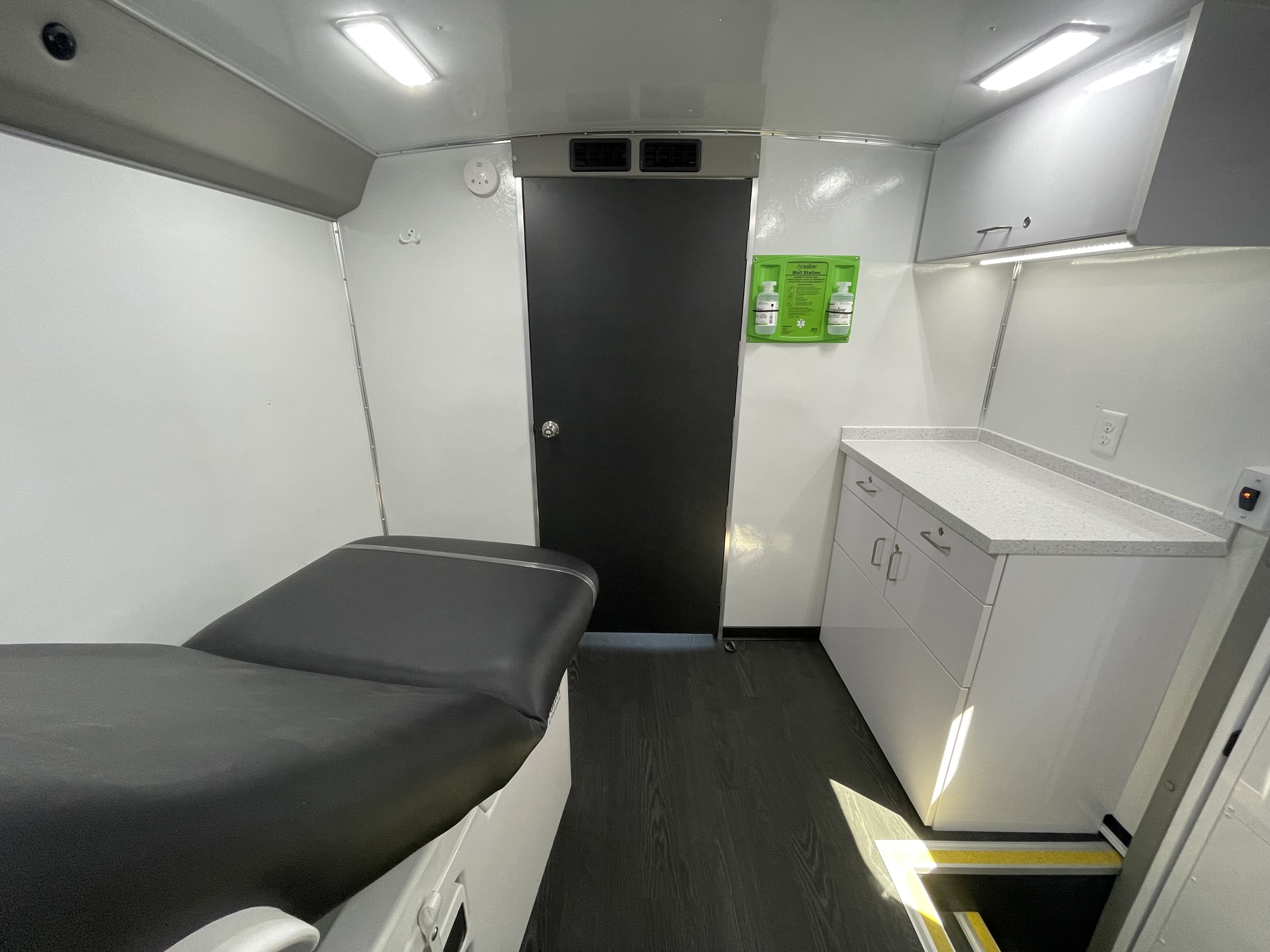

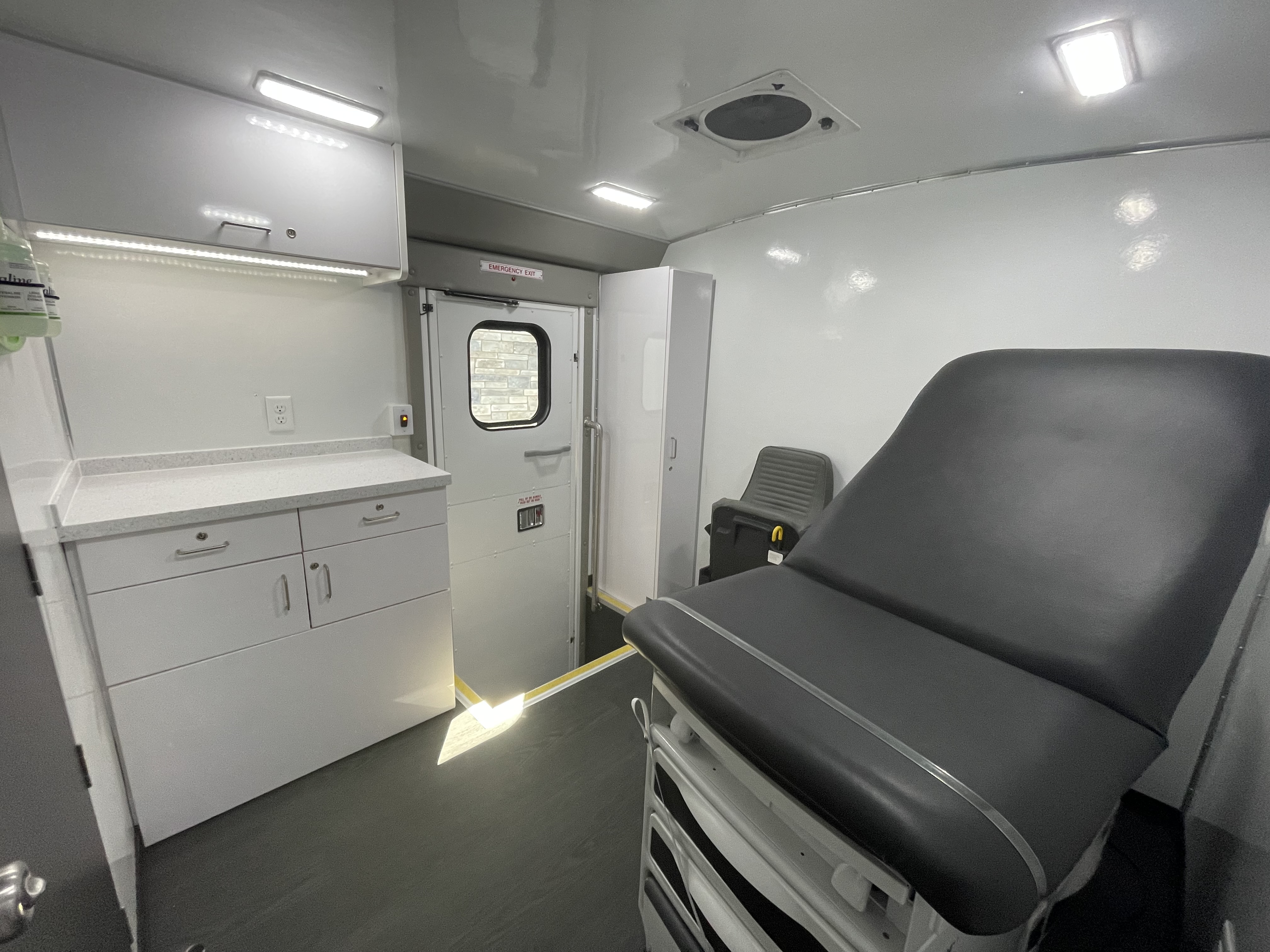

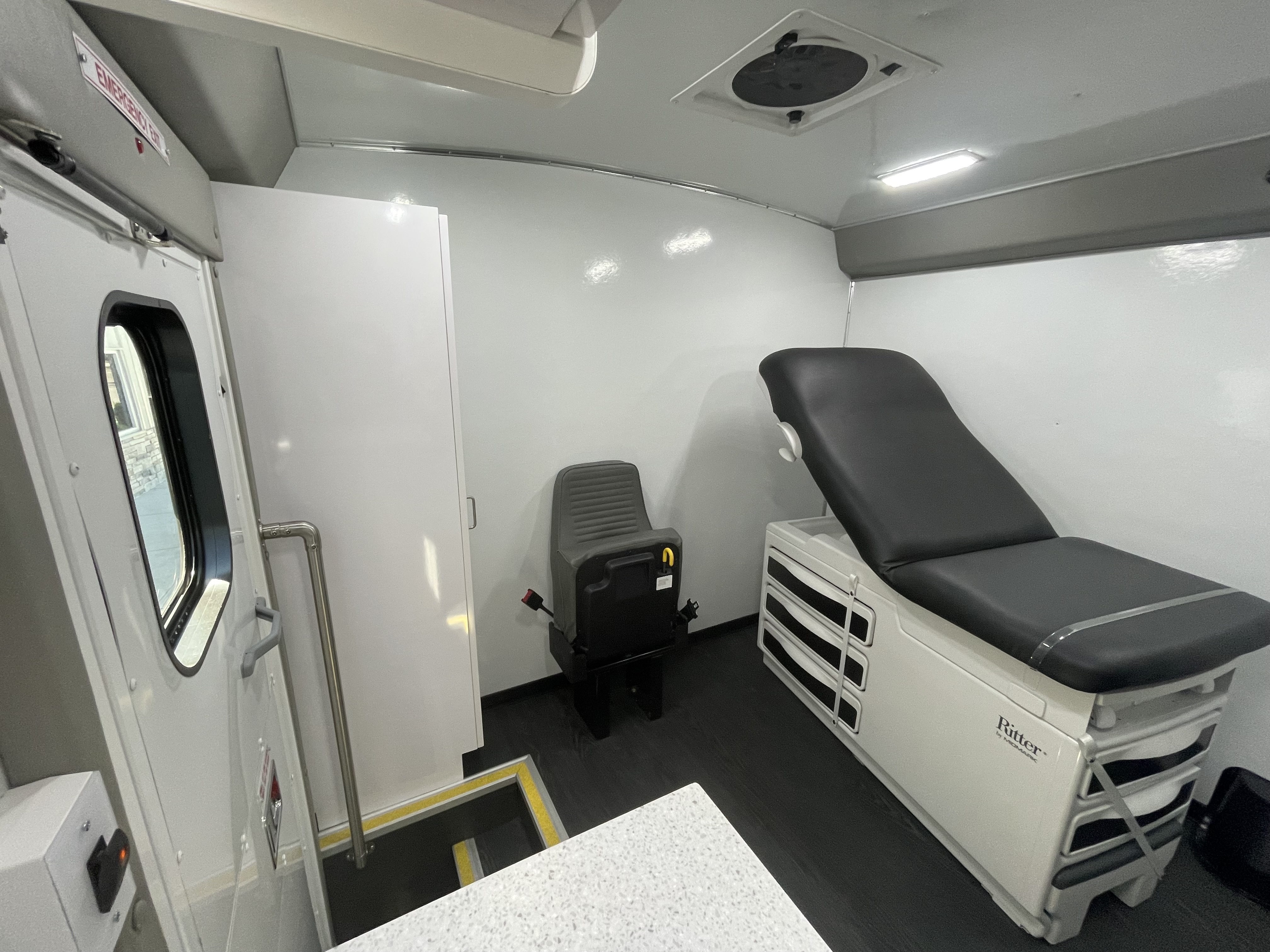

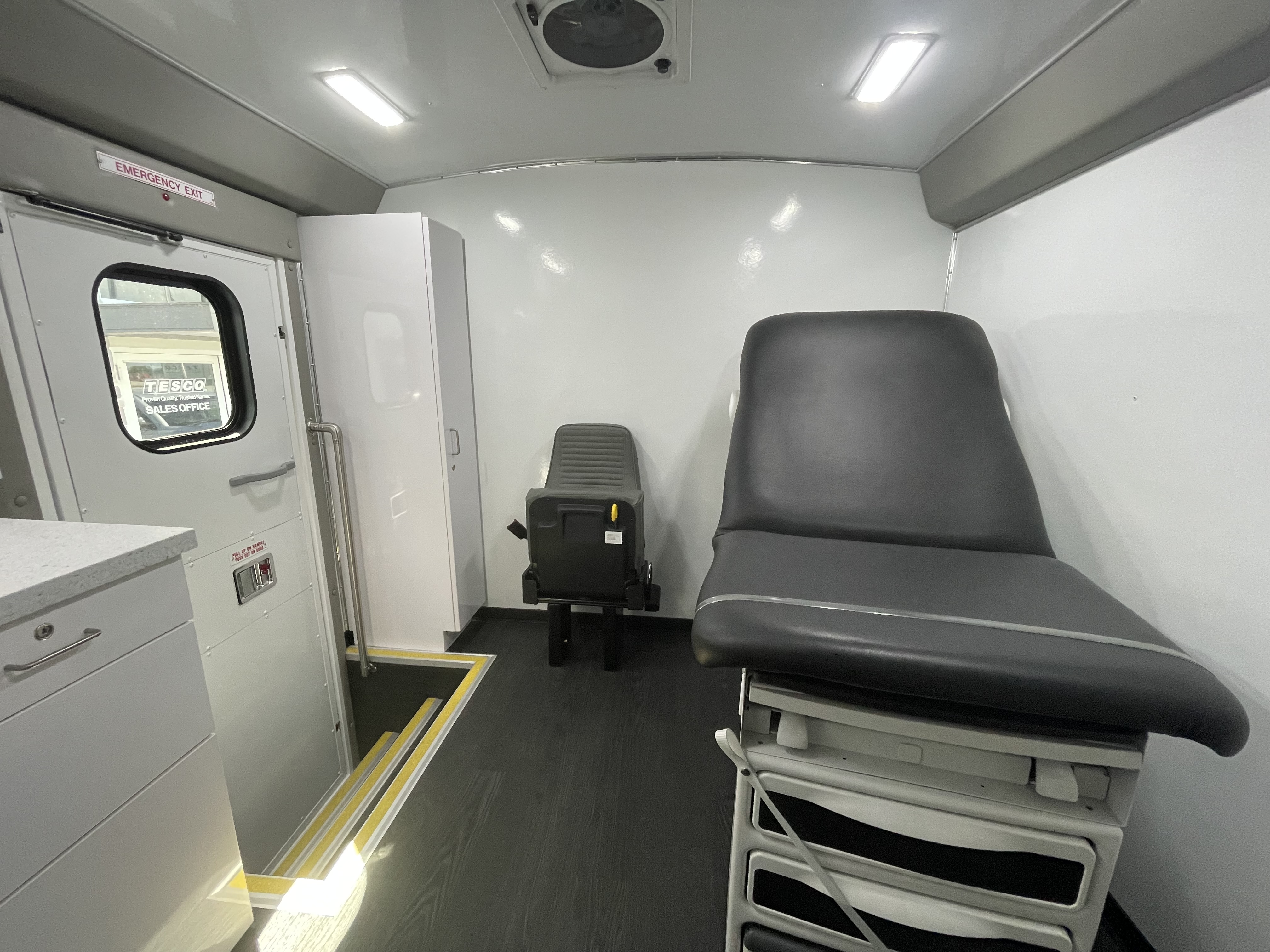

  • Ritter 204 Exam Table with Stirrups
